Supermicro AS-4023S-TRT Tower Barebone Dual AMD EPYC 7001/7002 Series Processors
• Cloud Computing
• Data Center
• General purpose, SMB, Web Hosting
Barebone Tower, 4U Rack Server Socket SP3 for Dual AMD EPYC 7001/7002 Series Processors - Up to 2TB Registered DDR4 up to 2666MHz, 8x Hot-Swap 3.5in drive bays, 10x SATA3, 1x M.2 VNMe SSD, 2x 10GBase-T Ethernet, VGA, IPMI 2.0, 1280W Redundant Platinum Level Certified Power Supply w/ PMBus - (H11DSi-NT + SC745BTS-R1K28BP2) - (Black) - AS -4023S-TRT

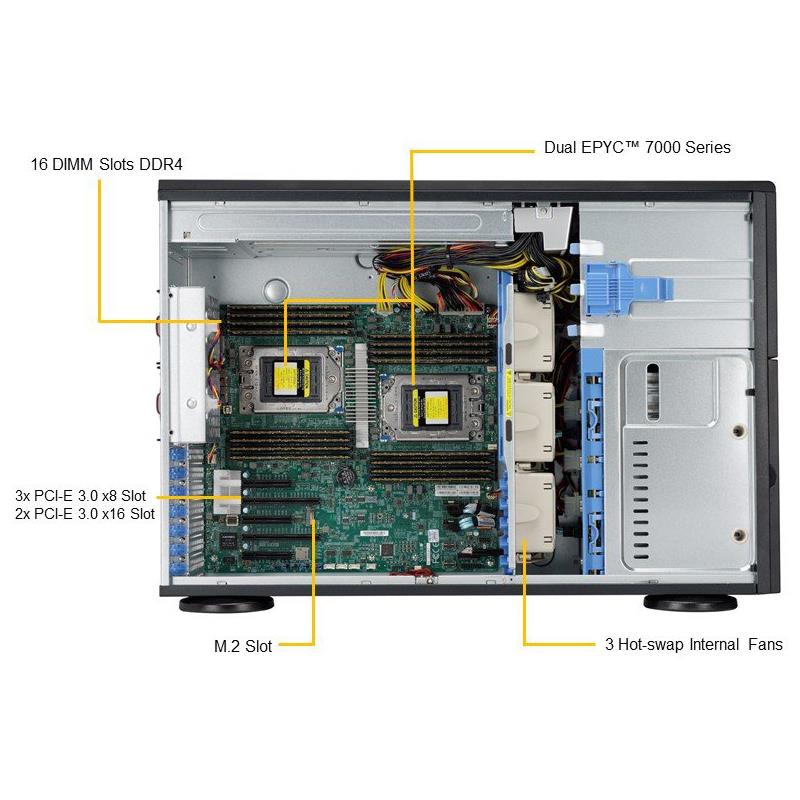

1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors) 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots: 2 PCI-E x16 slots 3 PCI-E x8 slots M.2 Interface : 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) M.2 Form Factor : 2280, 22110 M.2 Key : M-key
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. Dual 10G LAN ports
6. 8 hot-swap 3.5" SATA3 drive bays; 3 peripheral 5.25" drive bays; 1 M.2 NVMe SSD supported
7. 1280W Redundant Power Supplies Platinum Level (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-4023S-TRT Tower Barebone Dual AMD EPYC 7001/7002 Series Processors
| Motherboard | ||

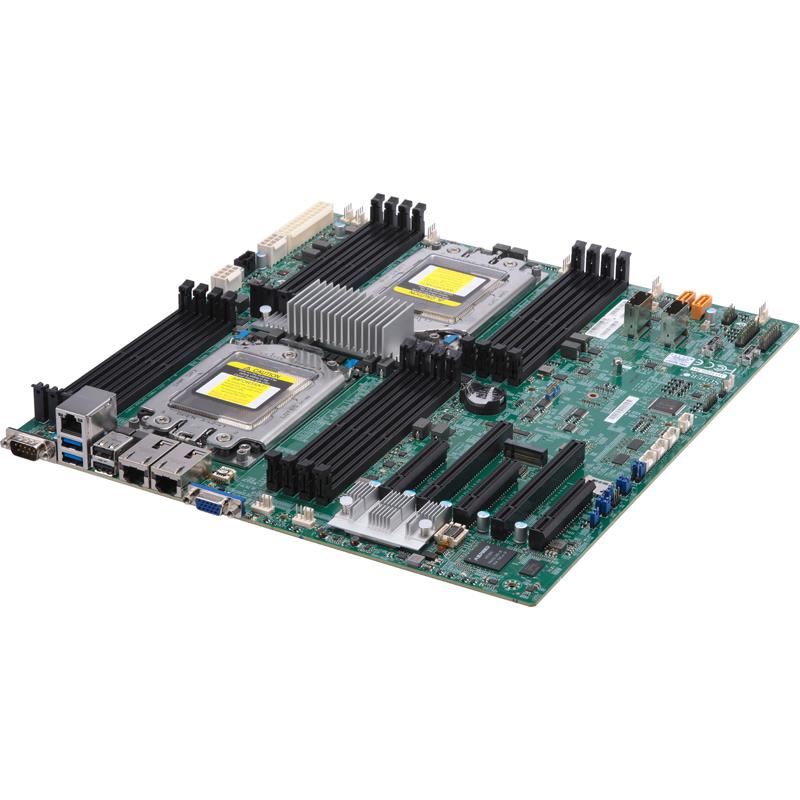

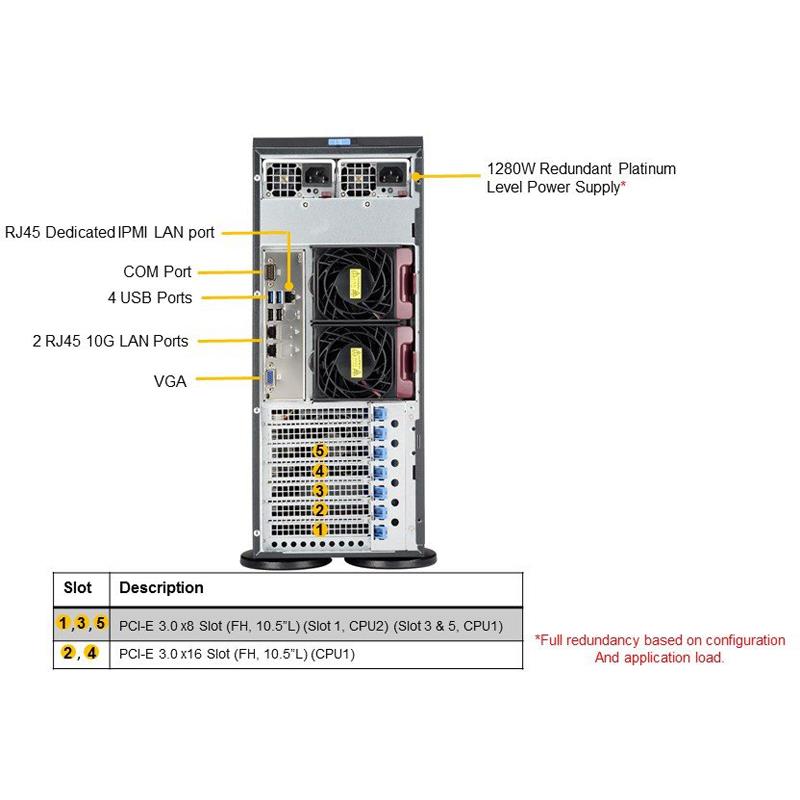

| Motherboard | H11DSi-NT | |
| Processor/Chipset | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU TDP 225W / cTDP up to 240W * | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 16 DIMM slots | ||
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SATA3 (6 Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| 2 Intel® X550 10GBase-T Ethernet Controllers | ||
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI-Express | 2 PCI-E x16 slots | |
| 3 PCI-E x8 slots | ||
| M.2 | Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) | |
| Form factor: 2280, 22110 | ||
| Key: M-key | ||
| Input / Output | ||
| SATA | 10 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Dual 10G LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (rear) | ||
| VGA | 1 VGA port | |
| SAS | 8 SAS3 ports support via optional Add-on Card | |
| NVMe | 2 NVMe support with optional cables | |
| Others | TPM 1.2 header | |
| 1 COM port (rear) | ||
| 2 SATA DOM power connector | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | Tower / 4U Rackmountable | |
| Model | CSE-745BTS-R1K28BP2 | |
| Dimensions and Weight | ||
| Height | 17.8" (452mm) | |
| Width | 7" (178mm) | |
| Depth | 25.5" (647mm) | |
| Package | 24.6" (H) x 14" (W) x 31.3" (D) | |
| Weight | Net Weight: 59 lbs (26.76 kg) | |
| Gross Weight: 62 lbs (28.12 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||

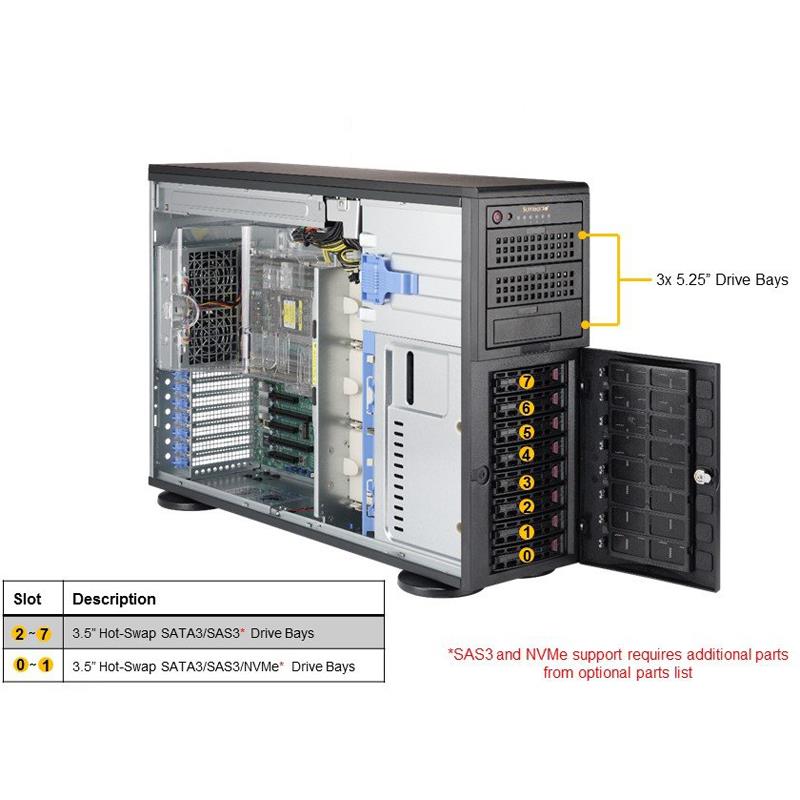

| Hot-swap | 8 hot-swap 3.5" Drive Bays: 8 SATA3 by default or 8 SAS3 | |
| 8 SATA3 by default | ||
| or 8 SAS3 | ||
| Peripheral Drives | ||
| 5.25" | 3 peripheral 5.25" drive bays | |
| Backplane | ||
| HDD Backplane | Supports 8 SATA3 or 8 SAS3 HDD | |
| System Cooling | ||
| Fans | 3 internal hot-swap 9400 RPM fans | |
| 2 external rear hot-swap 9400 RPM fans | ||
| Power Supply | ||
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| AC Input | 1000W Output @ 100-140V, 8-12A, 50-60Hz | |
| 1280W Output @ 180-240V, 6-8A, 50-60Hz | ||
| DC Output | 1000W: +12V/83A; +5Vsb/4A | |
| 1280W: +12V/106.7A, +5Vsb/4A | ||
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I 2 C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 4023S-TRT | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11DSi-NT | 1 | Super H11DSi-NT Motherboard | |
| Chassis | CSE-745BAC-R1K28BP2 | 1 | 4U Chassis | |
| Backplane | BPN-SAS3-743A-N4 | 1 | 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices | |
| Cable | CBL-SAST-0508-01 | 2 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF | |
| Heat Sink | SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| IO Shield | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Power Supply | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply | |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| NVMe support kit | MCP-220-00080-0B | $ 26.50 | 0 | 3.5" to 2.5" HDD tray - ADD QTY 1 per drive (Hot swap not supported) | ||
| DVD Drive Kit | DVM-LITE-DVDRW24-HBT | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
| Mounting Rails | CSE-PT26L-B | $ 54.50 | 0 | 4U Chassis Rail Kits SC743,745 (w/ 2pcs Black Chassis Ears) | ||
| Tray | MCP-220-00044-0N | $ 17.50 | 0 | Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U | ||
| 3.5" to 2.5" HDD tray Converter | MCP-220-00080-0B | $ 26.50 | 0 | Black hot-swap gen 2 3.5" to 2.5" HDD tray – ADD QTY 1 per drive | ||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
