- Supermicro SSE-F3548SR 48x 25Gbps SFP28 ports and 6x 25Gbps QSFP28 Ethernet ports Layer 2+ Ethernet Switch

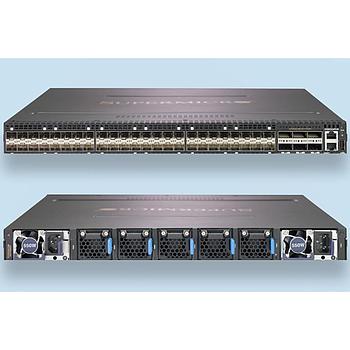

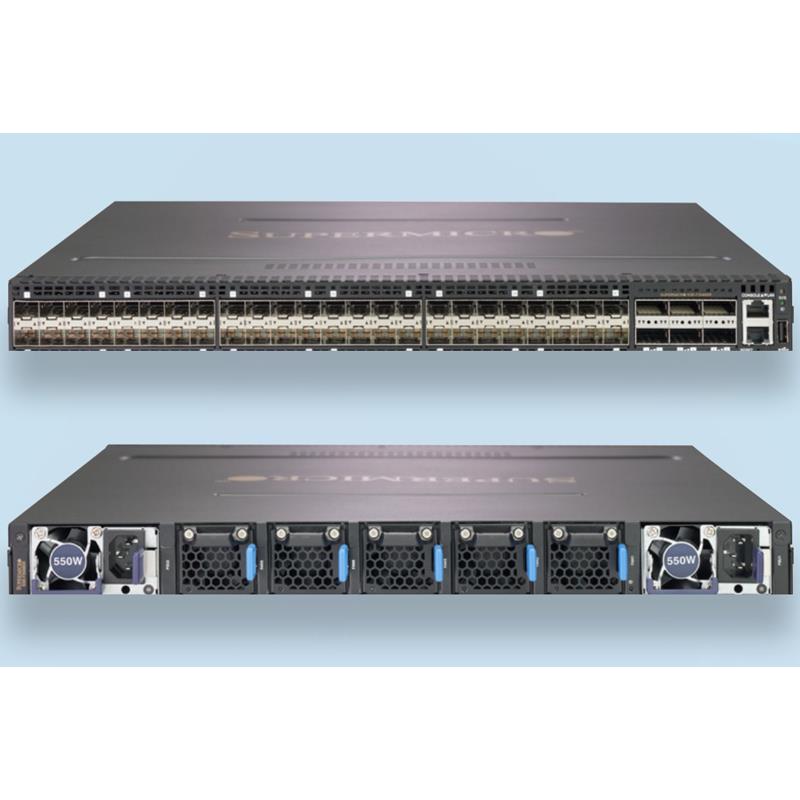

Supermicro SSE-F3548SR 48x 25Gbps SFP28 ports and 6x 25Gbps QSFP28 Ethernet ports Layer 2+ Ethernet Switch
• Offer forty-eight 25-Gigabit Ethernet ports
• Data-center standard air-flow (back to front)
• 1U - Standalone or top-of-rack environments
• Redundant Hot-pluggable 500W Power Supplies
48x 25Gbps SFP28 ports and 6x 25Gbps QSFP28 Ethernet ports Layer 2+ Ethernet Switch - Reverse AirFlow (back to front)
• Switching Capacity: 3.6 Tb
• Regular and Reverse Airflow models
• Redundant, Hot-Swappable power supplies
• Cost-Effective Solution for Migration from 10G
• 6 x 100Gbps QSFP28 ports - All 100Gbps ports can alternatively operate at 40Gbps
• 48 x 25Gbps Ethernet SFP28 ports - All 25Gbps ports are backward compatible with 10Gbps
• 100Gbps ports can further split to 4x 25Gbps each; Ports configured for 40Gbps can be split into 4x10Gbps each
• Reverse Airflow (back to front)
Extra Specifications for Supermicro SSE-F3548SR 48x 25Gbps SFP28 ports and 6x 25Gbps QSFP28 Ethernet ports Layer 2+ Ethernet Switch
| Main Specifications | ||
| Device Type | 25-Gigabit Ethernet switch | |
| Dimensions (WxDxH) | 445 x 510 x 44 mm (17.52 x 20.1 x 1.73 inches) | |
| Form Factor | 1U form factor for flexible installation | |
| Weight | Net weight: 8.9 Kg (19.6 lb) with 2 PSUs | |
| Capacity | 3.6 Tb | |
| Networking | ||
| Advanced Layer 2 | Storm control | |
| Flow control | ||
| MLAG | ||
| Advanced Layer 2 Features | Uplink Failure Detection (UFD) | |
| Jumbo Support | Jumbo frames up to 9KB | |
| Layer 2 Features | IEEE 802.lQ VLANs/ port-based VLANs | |
| IEEE 802.1AB Link Layer Discovery Protocol (LLDP) | ||
| 4K VLANs | ||
| Layer 2 | IEEE 802.3ad with LACP | |
| Ports Qty | 48x Twenty five-Gigabit Ethernet ports - SFP28 | |
| 6x Hundred-Gigabit Ethernet ports - QSFP28 | ||
| RJ-45 (for console cable) | ||
| RJ-45 1G Ethernet Management Port | ||
| Miscellaneous | ||
| Features | Reverse Airflow (back to front) | |
| 1:1 Non-blocking connectivity | ||
| The 1U form factor gives users the ability to optimize deployment in standalone or top-of-rack environments | ||
| Feature(s) | Spanning Tree (802.1D) | |
| Rapid Spanning Tree (802.1w) | ||
| Multiple Spanning Trees (802.1s) | ||
| Mounting Kit | Mounting Rails (included) | |
| Expansion / Connectivity | ||
| Interfaces | USB | |
| Environmental Parameters | ||
| Operating Humidity | Operating: 0% to 95% RH | |
| Operating Temperature | Operating 0C to 45C (32F to 113F) | |
| Power | ||
| Consumption Operational | 410 Watts | |
| Power Device | 500W Power Supplies | |
| Regular and Reverse Airflow Models | ||
| Voltage Required | AC Input: 100-127/200-240 V, 50/60 Hz | |
| Redundancy | Redundant Hot-pluggable | |
| Management | ||
| Management | Industry Standard CLI, Context Sensitive Help, Command Completion, SNMP v1/v2/v3, SSH, Syslog, DHCP (Client), Web-based management interface, NTP, RMON | |
| Multicast | ||
| Multicast | IGMP Snooping | |
