Supermicro AS-1123US-TN10RT 1U Barebone Dual AMD Processor
• Virtualization
• Cloud Computing
• High-End Enterprise Server
Barebone 1U Rackmount for Dual AMD EPYC 7000, up to 4TB DDR4 Reg ECC 2666MHz memory in 32 DIMM slots, 10 Hot-Swap 2.5in drive bays with support for 10 U.2 NVMe drives, Dual 10BaseT LAN ports, IPMI 2.0 + KVM, Redundant 1000W Power Supplies (CSE-119UTS-R1K02P-N10T + MBD-H11DSU-iN) - Black- AS -1123US-TN10RT
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 NVMe HDD drive.
1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3. Expansion slots: 1 PCI-E 3.0 x16 (FH, 9.5"L) slot, 1 PCI-E 3.0 x8 (LP) slot [ Details ]
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 10GBase-T LAN ports via Intel® X540
6. Drive Bays: 10 hot-swap 2.5" U.2 NVMe drive bays
7. 1000W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1123US-TN10RT 1U Barebone Dual AMD Processor
| Product SKUs | ||
| AS -1123US-TN10RT | A+ Server 1123US-TN10RT | |
| Motherboard | ||
| Motherboard | H11DSU-iN | |
| Processor/Chipset | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU cTDP up to 280W ** | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| Note | ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 32 DIMM slots | ||
| Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Intel® X540 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| 1U | 1 PCI-E 3.0 x16 (FH, 9.5"L) slot | |
| 1 PCI-E 3.0 x8 (LP) slot | ||
| M.2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) | |
| or 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0639 (2240/2260/2280/22110) | ||
| or 2 Internal M.2 slots via optional cable CBL-SAST-0639 (NVMe 2260 + SATA 2260) | ||
| Input / Output | ||
| NVMe | 10 U.2 NVMe support | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10GbBase-T LAN ports | ||
| USB | 5 USB 3.0 ports (2 rear + 2 front + 1 Type A) | |
| VGA | 2 VGA ports (1 rear, 1 onboard) | |
| Others | TPM 1.2 header | |
| 1 COM port | ||
| 2 SATA DOM power connectors | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-119UTS-R1K02P-N10T | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 27.82" (707mm) | |
| Package | 8.19" (H) 23.86" (W) 36.14" (D) | |
| Weight | Net Weight: 26 lbs (11.8 kg) | |
| Gross Weight: 41 lbs (18.6 kg) | ||

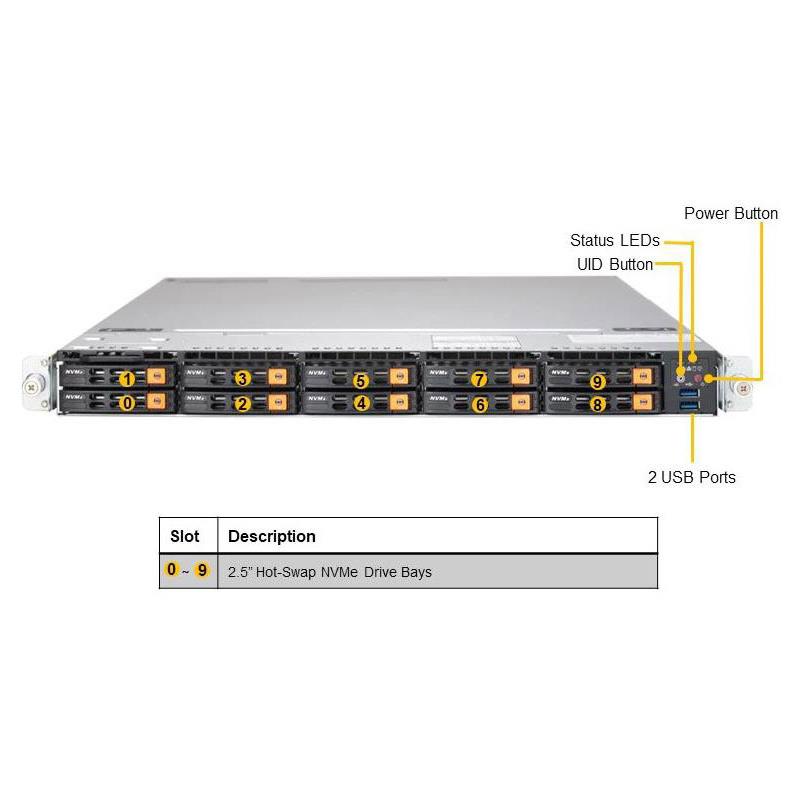

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 10 hot-swap 2.5" U.2 NVMe drive bays | |
| System Cooling | ||
| Fans | 8 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 8-fan status tachometer monitoring | ||
| Up to eight 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| Thermal control for 8x Fan connectors | ||
| I²C Temperature Sensing Logic | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11DSU-iN | 1 | Super H11DSU-iN Motherboard | |
| Chassis | CSE-119UTS-R1K02P-N10T | 1 | 1U Chassis | |
| HD Backplane | BPN-SAS3-116A-N10 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible. | |
| Cable | CBL-SAST-0818 | 2 | OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM, 34AWG | |
| Cable | CBL-SAST-0819 | 2 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM, 34AWG, RoHS/REACH | |
| Cable | CBL-SAST-0849 | 4 | MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG | |
| Cable | CBL-SAST-0841 | 2 | MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-UMR-8 | 1 | 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE | |
| Add-on Card | AOC-SLG3-2E4R-P | 1 | NVMe AOC by 8, HF, RoHS/REACH | |
| Add-on Card | AOC-SLG3-4E4R-P | 1 | NVMe AOC by 16, HF, RoHS/REACH | |
| Add-on Card | AOC-UR-I2XT | 1 | 1U Ultra Riser based on Intel X540 controller with 2 10Gbase-T ports and 1 internal PCI-E x8 3.0 slot | |
| Heat Sink | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Mounting Rail(s) | MCP-290-00102-0N | 1 | Outer rail, quick-release type, 25.6 | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 1U Cable Management Arm | MCP-290-00165-0N | 1 | 1U Supermicro Cable Management Arm 3rd Gen (optimize for Ultra) | |||
| 1 Internal M.2 slot (SATA) | CBL-SAST-0639 | $ 17.00 | 0 | 1U Ultra RHS Riser Card with 1 SATA M.2 (up to 22110) | ||
| 2 Internal M.2 slots(NVMe 2260 + SATA 2260) | CBL-SAST-0639 | $ 17.00 | 0 | 1U Ultra RHS Riser Card with 1 PCI-E/SATA Hybrid M.2 & 1 PCI-E x8 (up to 2260 for each device) | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
