- Supermicro X11SDV-4C-TP8F Motherboard Flex ATX Intel Xeon D-2123IT, 4-Core SoC (System on Chip)

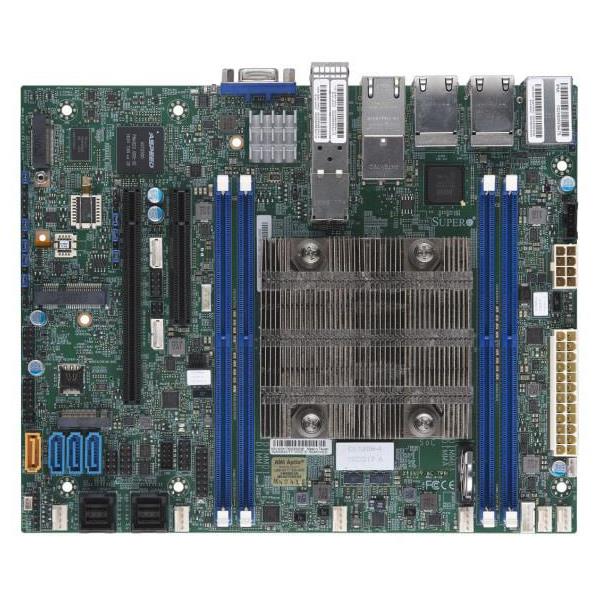

Supermicro X11SDV-4C-TP8F Motherboard Flex ATX Intel Xeon D-2123IT, 4-Core SoC (System on Chip)
Powered by 4‑core Intel Xeon D‑2123IT processor
Features SoC‑controlled 12 SATA3 (6 ports with RAID
Supports up to 512 GB ECC DDR4 memory in 4 DIMM slots
Includes quad 1GbE, dual 10G SFP+ and dual 10GBase‑T LAN ports
Motherboard Flex ATX Intel Xeon D-2123IT, 4-Core SoC (System on Chip), up to 256GB ECC Reg DDR4 memory, 4 SATA3 ports with RAID 0,1,5,10, Dual 10G SFP+ and Dual 10GBaseT LAN ports, IPMI, VGA, TPM - MBD-X11SDV-4C-TP8F (Retail Box)
1. Supports 12V DC power input
2. Intel® Xeon® Processor D-2123IT, CPU TDP support Up to 60W TDP
3. Up to 256GB Registered ECC RDIMM, DDR4-2133MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
4. 1 PCIe 3.0 x8, 1 PCIe 3.0 x16 1 Mini-PCIe, 2 PCIe 3.0 NVMe x4 Internal Port(s) 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280 1 M.2 B-Key SATA/PCIe 3.0 x2, 3042 U.2 Interface: 2 PCIe 3.0 x4
5. SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
6. Quad LAN with Intel® Ethernet Controller I350-AM4 Dual LAN with 10G SFP+ LAN via SoC Dual LAN with 10Gbase-T
7. 1 VGA D-Sub Connector port
8. System on Chip
Extra Specifications for Supermicro X11SDV-4C-TP8F Motherboard Flex ATX Intel Xeon D-2123IT, 4-Core SoC (System on Chip)
| System Memory | ||
| DIMM Sizes | LRDIMM: 16GB, 32GB, 64GB, 128GB | |
| RDIMM: 16GB, 32GB, 64GB, 128GB | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 512GB ECC LRDIMM, DDR4-2133MHz; Up to 256GB ECC RDIMM, DDR4-2133MHz | ||
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz) | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 10G SFP+ LAN via SoC | |
| Dual LAN with 10Gbase-T | ||
| Quad LAN with Intel® Ethernet Controller I350-AM4 | ||
| SATA | SoC controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| Input / Output | ||
| SATA | 4 SATA3 port(s) | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 2 RJ45 10GBase-T ports | ||
| 2 10G SFP+ LAN ports | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| Video Output | 1 VGA D-Sub Connector port(s) | |
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 1 Super DOM (Disk on Module) port with build power | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | ACPI 6.1 | |
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| PCI FW 3.2 | ||
| BIOS Type | 128MB UEFI | |
| Management | ||
| Power Configurations | ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection | |
| Software | KVM with dedicated LAN, IPMI2.0 , Watchdog | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| FAN | 6x 4-pin fan headers (up to 6 fans) | |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Overheat LED indication | ||
| Other Features | RoHS, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology | |
| Voltage | System level control, Monitors CPU voltages, 5 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, 5 (4-pin) | |
| Product SKUs | ||
| Product SKUs | MBD-X11SDV-4C-TP8F | |
| Physical Stats | ||
| Form Factor | Flex ATX | |
| Dimension | 9" x 7.25" (22.86cm x 18.42cm) | |
| Processor | ||
| CPU | Intel® Xeon® Processor D-2123IT | |
| Core | Up to 4 cores, 8 threads | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8, | |
| 1 PCIe 3.0 x16 | ||
| 1 Mini-PCIe | ||
| M.2 | Key: M-Key, B-Key | |
| M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2 | ||
| Form Factor: 2280, 3042 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
