- Supermicro AS-1113S-WN10RT 1U Barebone Single AMD Processor
Supermicro AS-1113S-WN10RT 1U Barebone Single AMD Processor
• Virtualization
• Cloud Computing
• All Flash Storage
Barebone 1U Rackmount for Single AMD EPYC 7000, up to 2TB DDR4 Reg ECC 2666MHz memory in 16 DIMM slots, 10 Hot-Swap 2.5in drive bays with support for 10 U.2 NVMe drives, Dual 10BaseT LAN ports, IPMI 2.0 + KVM, Redundant 750W Power Supplies (CSE-116TS-R706WBP3 + MBD-H11SSW-NT) - Black- AS -1113S-WN10RT
To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU.
1. Single AMD EPYC™ 7001/7002 * Series Processor ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
3. Expansion slots: 2 PCI-E 3.0 x16 (FH/HL) slots, 1 PCI-E 3.0 x16 (LP) slot M.2 Interface : PCI-E 3.0 x2 (NVMe based) M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key Number of M.2 : Dual
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 10GBase-T LAN ports via Broadcom BCM57416

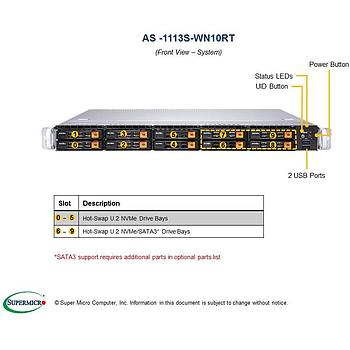

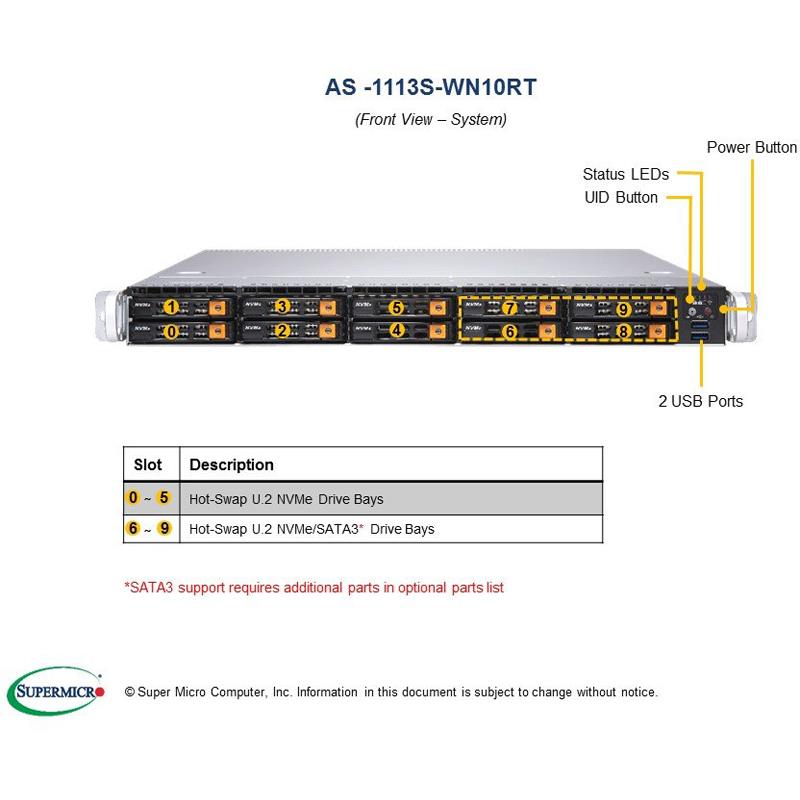

6. 10 hot-swap 2.5" U.2 NVMe drive bays, optional 4 SATA3 drive support with additional cables
7. 750W Redundant Power Supplies Platinum Level (94%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1113S-WN10RT 1U Barebone Single AMD Processor
| Product SKUs | ||
| AS -1113S-WN10RT | A+ Server 1113S-WN10RT | |
| Motherboard | ||
| Motherboard | H11SSW-NT | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Single AMD EPYC™ 7001/7002 * series Processor ( * Board revision 2.x required) | ||
| Supports CPU TDP 225W / cTDP up to 240W * | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 16 DIMM slots | ||
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Broadcom BCM57416 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI Express | 2 PCI-E 3.0 x16 (FH/HL) slots | |
| 1 PCI-E 3.0 x16 (LP) slot | ||
| M.2 | Form Factor: 2280, 22110 | |
| Interface: PCI-E 3.0 x2 (NVMe based) | ||
| Key: Onboard M-key | ||
| Number of M.2: Dual | ||
| Input / Output | ||
| NVMe | Up to 10 U.2 NVMe support | |
| SATA | Optional 4 SATA3 (6 Gbps) support via additional cables | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10GbBase-T LAN ports | ||
| USB | 7 USB 3.0 ports (4 rear + 2 front + 1 Type A) | |
| VGA | 1 VGA port | |
| Others | TPM 1.2 header | |
| 1 COM port | ||
| 2 SATA DOM power connectors | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 1U | |
| Model | CSE-116TS-R706WBP3 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 23.5" (597mm) | |
| Package | 7.63" (H) 23.42" (W) 31.45" (D) | |
| Weight | Gross Weight: 33 lbs (15.0 kg) | |
| Net Weight: 20 lbs (9.1 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 10 hot-swap 2.5" U.2 NVMe drive bays | |
| Backplane | ||
| Hybrid Backplane | Supports up to 10x 2.5" NVMe storage devices, 4 of them SAS3/SATA3 compatible | |
| System Cooling | ||
| Fans | 6 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| AC/DC240V Input Redundant Power Supply | ||
| AC/DC240V Input Redundant Power Supply | 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | 700W/750W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100 - 140Vac / 8 - 6A / 50-60Hz | |
| 200 - 240Vac / 4.5 - 3.8A / 50-60Hz | ||
| 200 - 240Vdc / 4.5 - 3.8A (CCC Only) | ||
| +12V | Max: 58A / Min: 0.5A (100 - 140Vac) | |
| Max: 62A / Min: 0.5A (200 - 240Vac) | ||
| Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) | ||
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 6-fan status tachometer monitoring | ||
| Up to six 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| I²C Temperature Sensing Logic | ||
| Thermal control for 6x Fan connectors | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 30°C (50°F to 86°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11SSW-NT | 1 | Super H11SSW-NT Motherboard | |
| Chassis | CSE-116TS-R706WBP3 | 1 | 1U Chassis | |
| HD Backplane | BPN-SAS3-116A-N10 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible. | |
| Cable(s) | CBL-PWEX-1072 | 2 | PWEX,2X2M/P4.2 TO 2X2F/P4.2,BLK*1,YEL*1,28CM,16AWG | |
| Cable(s) | CBL-PWEX-1073 | 2 | PWEX,2X2F/P4.2 TO 1X4M/P5.08,BLK*2,YEL*1,RED*1,5CM,18AWG | |
| Cable(s) | CBL-SAST-0814 | 1 | SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT,13CM,34AWG | |
| Cable(s) | CBL-SAST-0815 | 3 | SLIMLINE SAS x8 to 2x Oculink x4,INT, 22CM,34AWG | |
| Cable(s) | CBL-SAST-0816 | 1 | SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0062P | 1 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Mounting Rail(s) | MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH | |
| Drive Tray(s) | MCP-220-00127-0B-BULK | 10 | Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk | |
| Fan(s) | FAN-0101L4 | 5 | 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808 | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage Controller card & cable | AOC-S3008L-L8e& 1x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBAMINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 1x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1EMINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| Storage Controller card & cable | AOC-S3108L-H8iR& 1x CBL-SAST-0699 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG | |||
| Cable Management Arm | MCP-290-00085-0N | $ 74.50 | 0 | Supermicro Cable Management Arm for 1U Chassis | ||
| TPM | AOM-TPM-9655V | $ 39.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 39.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Optional Kit for 4 SATA Drive Support | CBL-SAST-0813 | $ 27.00 | 1 | SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG | ||
| Optional Kit for 4 SATA Drive Support | MCP-220-00147-0B | $ 22.50 | 4 | Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design) | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
