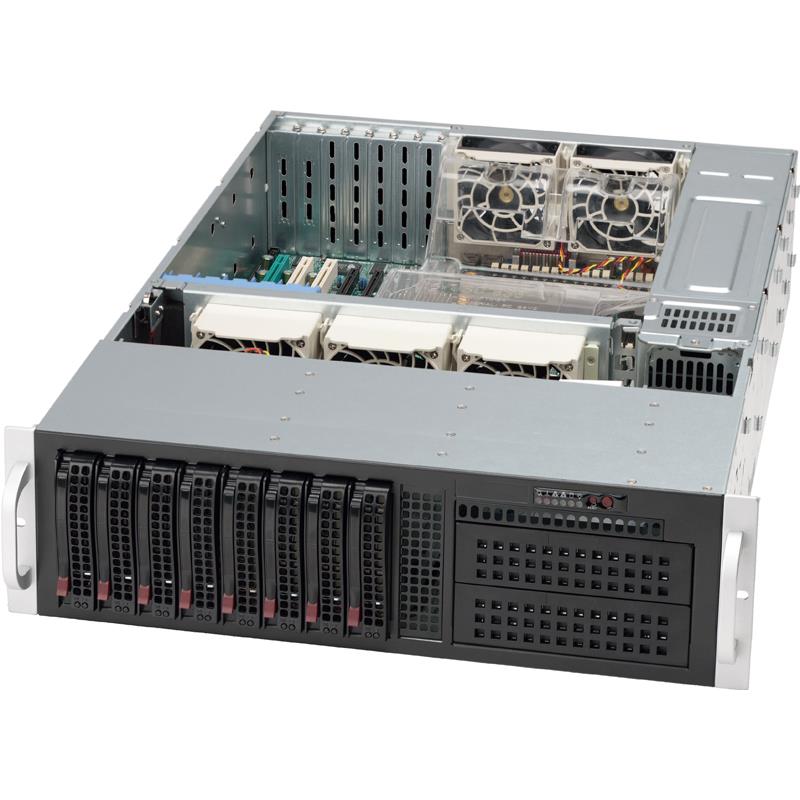

Supermicro CSE-835TQC-R802B Server Chassis 3U Rackmount
• High-performance fans provide optimized cooling
• Highly-optimized design for 2x core Xeon platforms
• Equipped w/ redundant high efficiency power supply
• The chassis comes w/ a backplane for SAS/SATA HDD
Rackmount 3U for up to Dual Xeon with Redundant 800Watts Hot-Swap Power Supply (2x 800w) - Includes 8 3.5in SAS / Sata Hot-Swap Drive Trays, Mounting Rails Kit, Cooling Air Shroud (black) - SC835TQC-R802B
1. 800W Redundant High-efficiency Titanium Level Power Supplies
2. 8x 3.5" Hot-swap SAS3/SATA3 drive bays, space to support 2x 5.25" Drive Bays & 1x Slim DVD
3. Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage
4. 7x Full-height, Full-length Expansion Slots
5. Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy
6. 3U 8-Port Backplane Supports 8 x 3.5" SAS3/SATA3 HDD/SSD with 2x mini SAS HD connectors
Extra Specifications for Supermicro CSE-835TQC-R802B Server Chassis 3U Rackmount
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | CSE-835TQC-R802B | |
| Form Factor | ||
| Form Factor | 3U chassis support for motherboard size - E-ATX and ATX. | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 5.2" (132 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 75 lbs (34.02 kg) | |
| Net Weight | 36 lbs (16.33 kg) | |
| Packaging (W x H x L) | 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Full-height, Full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8x 3.5" hot-swap SAS/SATA drive bay | |
| Backplane | ||
| Backplane | 8-Port 3U Backplane Supports 8 x 3.5" SAS3/SATA3 HDD/SSD for X11 Platform with 2x mini SAS HD connectors | |
| Peripheral Drives | ||
| Peripheral Drives | 2x standard 5.25" drive bay | |
| 1x slim DVD-ROM drive bay | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | HDD activity LED | |
| 2 Network Activity LEDs | ||
| Power LED | ||
| System Overheat LED | ||
| Power Fail LED | ||
| Systems Cooling | ||
| Fans | 2x 80mm rear hot-swap exhaust PWM fan(s) | |
| 3x 80mm Hot-swap PWM Fans | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Power Supply | ||
| Power Efficiency | 96% | |
| Total Output Power and Input | 800W with Input 100 - 240Vac | |
| 800W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 66A / Min: 0A (100Vac - 240Vac) | |
| Max: 66A / Min: 0A (200Vdc - 240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6A | |
| +3.3V Max: 24A | ||
| +5V Max: 30A | ||
| PDB-PT825-8824 | ||
| O/P: 12V/75 | ||
| Certification | Titanium Certified | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
