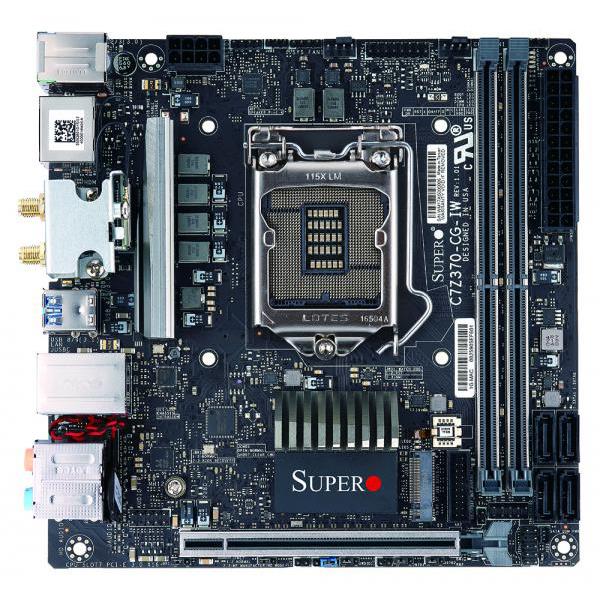

- (OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro C7Z370-CG-IW Motherboard ATX Intel Z370 Chipset Socket H4 (LGA 1151) for Single Intel 8th Gen Core i3/i5/i7 processors
(OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro C7Z370-CG-IW Motherboard ATX Intel Z370 Chipset Socket H4 (LGA 1151) for Single Intel 8th Gen Core i3/i5/i7 processors
Motherboard ATX Intel Z370 Chipset Socket H4 (LGA 1151) for Single Intel 8th Gen Core i3/i5/i7 processors - Supports up to 32GB DDR4 Non-ECC UDIMM up to 2666MHz (2x 288-pin DDR4 DIMM slots) - On-board : 4x SATA3 6Gbps Controller via (RAID 0, 1, 5, 10), Single Gigabit Ethernet LAN via Intel i219V Controller shared w/ IPMI, ALC 1220 HD Audio, MBD-C7Z370-CG-IW Motherboard (Retail Box)
This product is no longer available.
1. 8th Generation Intel® Core™ i9(Non-K only)/i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor
2. Intel® Z370 Express
3. Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-3733MHz (OC), in 2 DIMM slots Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to 8th Gen Intel® CoreTM i7/i5/i3/Pentium®/Celeron® processor)
4. 1 PCI-E 3.0 x16 M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key *1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included
5. 1 HDMI port, 1 DP (DisplayPort) port
6. Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Single LAN with Intel® single Ethernet PHY i219V Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card
8. SuperDoctor® 5, Watchdog
9. RGB LED support
Extra Specifications for (OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro C7Z370-CG-IW Motherboard ATX Intel Z370 Chipset Socket H4 (LGA 1151) for Single Intel 8th Gen Core i3/i5/i7 processors
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Memory Capacity | Up to 32GB Unbuffered ECC/non-ECC UDIMM, DDR4-3733MHz (OC), in 2 DIMM slots | |
| Up to 32GB Unbuffered non-ECC UDIMM, in 2 DIMM slots (Limited to 8th Gen Intel® CoreTM i7/i5/i3/Pentium®/Celeron® processor) | ||
| Memory Type | 2666/2400/2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit 288-pin UDIMM | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® Z370 Express | |
| Network Controllers | Single LAN with Intel® single Ethernet PHY i219V Single LAN with WiFi 802.11 a/b/g/n/ac + BT 4.2 combo card | |
| SATA | Intel® Z370 Express controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 1220 7.1 HD Audio | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Gigabit Ethernet LAN ports | |
| Video Output | 1 HDMI port, 1 DP (DisplayPort) port | |
| USB | 2 USB 2.0 ports (2 via headers) | |
| 6 USB 3.2 Gen1 ports (2 via headers + 4 Type A) | ||
| 2 USB 3.2 Gen2 ports (1 Type A, 1 Type C) | ||
| System BIOS | ||
| BIOS Type | UEFI 128Mb | |
| Management | ||
| Software | SuperDoctor® 5, Watchdog | |
| PC Health Monitoring | ||
| LED | N/A | |
| Other Features | ACPI power management, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, Voltage and Frequency Overclocking, WOL | |
| Voltage | +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT | |
| Temperature | N/A | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimensions | 6.75" x 6.75" (17.15cm x 17.15cm) | |
| Processor/Cache | ||
| CPU | 8th Gen Intel® Core desktop processors are supported with Intel® 300 Series chipset motherboards only | |
| 8th Generation Intel® Core i9(Non-K only)/i7(8086K and 8700K are not supported)/i5/i3/Pentium®/Celeron® Processor | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| M.2 | Form Factor: 2280 | |
| Key: M-Key | ||
| M.2 Interface: 2 PCI-E 3.0 x4 | ||
| *1 M.2(E-Key) for 1GBit WiFi and Bluetooth module included | ||
