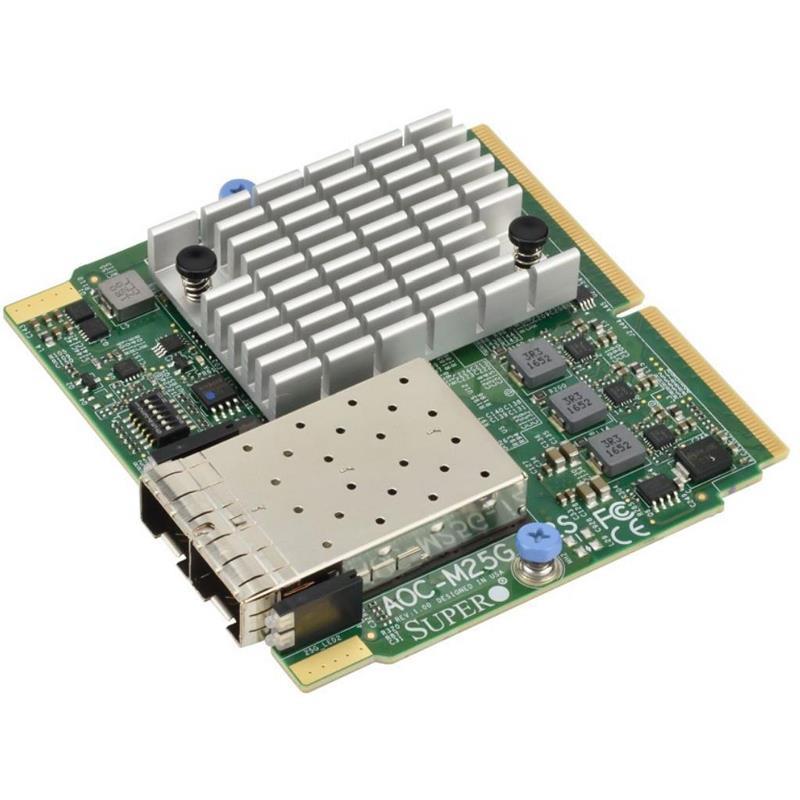

Supermicro AOC-M25G-I2SM SIOM 2-Port 25Gb Ethernet Controller Card with 2 SFP28 ports based on Intel Fort
• Optimized for 1U Twin Systems
• Enhance network connectivity in data centers
• Small form factor SIOM. Intel XXV710 chipset
• Dual SFP28 connectors; speed up to 25Gbps per port
SIOM 2-Port 25Gb Ethernet Controller Card with 2 SFP28 ports based on Intel Fort Can be ordered in bundle with Supermicro System ONLY
• Time Sync (IEEE1588)
• Intel XXV710 25GbE controller
• Super I/O Module (SIOM) Form Factor
• Dual SFP28 connectors with speed up to 25Gbps per port
Extra Specifications for Supermicro AOC-M25G-I2SM SIOM 2-Port 25Gb Ethernet Controller Card with 2 SFP28 ports based on Intel Fort
| Main Specifications | ||
| Device Type | Ethernet Controller | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| On-Board Devices | ||
| Chipset | Intel XXV710 chipset | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Data Transfer Rate | 25Gbps | |
| Miscellaneous | ||
| Features | Intel Ethernet Flow Director for hardware-based application traffic steering | |
| Data Plane Development Kit (DPDK) optimized for efficient packet processing | ||
| The 25GbE bandwidth enables rapid networking deployment in an agile data center environment | ||
| Supermicro Asset Management and thermal detection give the extra layer of controller health management and peace of mind | ||
| For customers who require faster and more reliable networking demands, the AOC-M25G-i2S is an excellent choice to enhance network connectivity in data centers and enterprise environments | ||
| Included Accessories | 1x internal bracket (BKT-0143L) for 1U chassis (Twin Servers) | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Networking | ||
| Port Quantity | Dual SFP28 connectors with speed up to 25Gbps per port | |
| Remote Management Protocol | Preboot eXecution Environment (PXE) support | |
| iSCSI boot | ||
| Asset Management features with thermal sensor | ||
| Management Features | NC-SI for remote management | |
| Virtualization Features | VXLAN and NVGRE | |
| Virtual Machine Load Balancing (VMLB) | ||
| VLAN support | ||
| Next-Generation VMDq with up to 256 VMDq VMs supported - SR-IOV | ||
| Power | ||
| Comsumtion Operational | Maximum 11.8W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0C to 55C (32F to 131F) | |
| Storage temperature: -40C to 70C (-40F to 158F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35C | ||
| Software / System Requirements | ||
| OS Supports | Windows Server 2008 R2 / 2012 / 20012 R2 / 2016 | |
| Linux Stable Kernel version 2.6/4.x, Linux RHEL 6.9 / 7.3, Linux SLES 11 SP4 / 12 SP1 | ||
| FreeBSD 10.3 / 11 | ||
| UEFI 2.1 / 2.3 / 2.4 | ||
| VMware vSphere 5.1 / 5.5, VMware ESXi 6.0 U3 / 6.0 | ||
