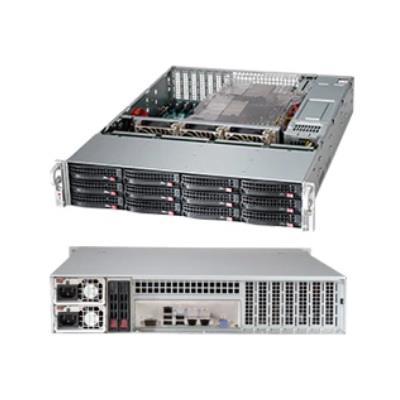

Supermicro CSE-826BE1C4-R1K23LPB Server Chassis 2U Rackmount
Rackmount 2U Chassis w/ 1200W Redundant Titanium Certified Power Supply (PWS-1K23A-1R) w/ PMBus, for Motherboard up to 13.68in x 13in E-ATX maximum size and for Dual / Single Intel / AMD processors - Includes 12x 3.5in SAS3 / SATA hot-swap HDD trays (optionally 2x 2.5in Hot-Swap SATA Drive Bays for OS mirroring), 7x low-profile full-length PCI expansion slots, SAS 12G single expander backplane (BPN-SAS3-826EL1-N4), Mounting Rails Kit (1x MCP-290-00053-0N) - (CSE-826BE1C4-R1K23LPB) - (Black)
1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
2. 12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
3. 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH
4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
5. 7 low-profile expansion slot(s)
6. 3 x 8cm high-performance PWM fan(s)
Extra Specifications for Supermicro CSE-826BE1C4-R1K23LPB Server Chassis 2U Rackmount
Front Panel | ||
Buttons | Power On/Off button | |
System Reset Button | ||
LEDs | Unit Identification (UID) LED | |
Power Status LED | ||
2 Network Activity LEDs | ||
HDD activity LED | ||
Fan Fail/System Over Heat LED | ||
Operating Environment (System) | ||
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
Power Supply | ||
Certification | Titanium Certified | |
Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm | |
Power Efficiency | 96% | |
Total Output Power and Input | 1200W with Input 200 - 240Vac | |
1000W with Input 100 - 127Vac | ||
1200W with Input 200 - 240Vdc | ||
AC Input Frequency | 50-60Hz | |
Dimensions (L x W x H) | 336 x 76 x 40 mm | |
Output Type | Backplanes (gold finger) | |
+12V | Max: 83A (100Vac - 127Vac) | |
Max: 100A (200Vac - 240Vac) | ||
Max: 100A (200 - 240) | ||
+5Vsb | Max: 4A / Min: 0A | |
Power Distributor | PDB-PT826-8824 | |
O/P: 12V/135 | ||
-12V Max: 0.6 | ||
+3.3V Max: 24 | ||
+5V Max: 40 | ||
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | CCC | |
BSMI | ||
CE/EMC | ||
FCC class A | ||
UL/CUL | ||
UL/CB | ||
Product SKUs | ||
Product SKUs | ||
Form Factor | ||
Form Factor | 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed | |
Processor Support | ||
Processor Support | Dual and Single Intel® and AMD processors | |
Dimensions | ||
Height | 3.5" (89 mm) | |
Width | 17.2" (437 mm) | |
Depth | 25.5" (647 mm) | |
Gross Weight | 55 lbs (24.95 kg) | |
Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) | |
Available Color | Black | |
Expansion Slots | ||
Expansion Slots | 7 low-profile expansion slot(s) | |
Drive Bays | ||
Drive Bays | Optional 2 x 2.5" hot-swap drive bay | |
12 x 3.5" hot-swap SAS/SATA drive bay with SES3 | ||
Backplane | ||
Backplane | 12-Port 2U Backplane with Expander support up to 8 x 3.5" SAS3/SATA3 HDD/SDD and 4 x SAS3/SATA3/NVMe Storage Devices,HF,RoHS/REACH | |
Systems Cooling | ||
Fans | 3 x 8cm high-performance PWM fan(s) | |
System Monitoring | ||
System Monitoring | Chassis intrusion switch |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
HDD Kit | MCP-220-82609-0N | $ 65.50 | 0 | Rear 2 X 2.5" HDD kit for 826B series chassis (cables & backplane included) | ||
Fan Kit | MCP-320-82603-0N | $ 134.00 | 0 | 6cm fan cooling module for 826B/216B | ||
Hard Drive Carrier | MCP-220-00043-0N | $ 26.00 | 0 | 3.5" convert to 2.5" HDD Tray | ||
Short Rail | MCP-290-00058-0N | $ 103.00 | 0 | Short rail set, quick release, 19.6"~26.9" Extendable Length | ||
Front Bezel | MCP-210-82601-0B | $ 31.00 | 0 | Black Front Bezel for 826 chassis | ||
HDD Kit | MCP-220-82616-0N | $ 89.00 | 0 | 12G 2.5x2 Drive Kit w/ Status LED (216B/826B/417B/846X/847B | ||
HDD Tray Converter | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
