- Supermicro SYS-5039MC-H12TRF MicroCloud Barebone Single CPU, 12-Node

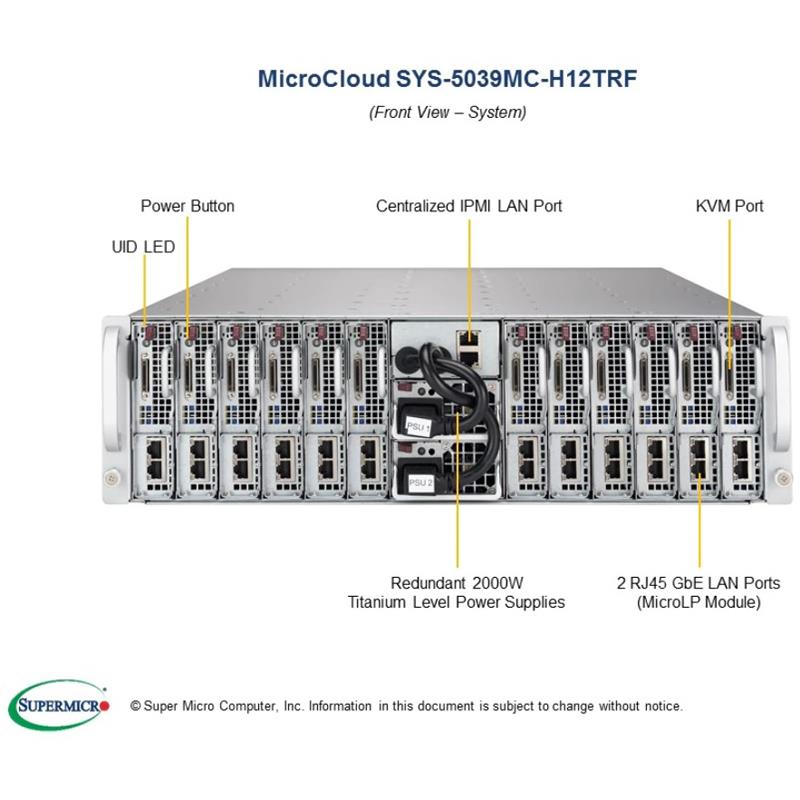

Supermicro SYS-5039MC-H12TRF MicroCloud Barebone Single CPU, 12-Node
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login
Barebone 3U MicroCloud with 12x Modular UP Nodes - Per Node : Single Socket H4 (LGA-1151) for Intel Xeon E3-1200 v5 family, Up to 128GB DDR4 ECC UDIMM up to 2666MHz (4 DIMM sockets ) - On-Board (per node) : SATA3 (6Gbps) via C246 controller, IPMI 2.0, Micro-LP NIC 2x i350 Gigabit LAN, VGA - Includes (per node) : 2x 3.5in or 4x 2.5in SATA3 HDDs or 2x 2.5in NVMe + 2x 2.5in SATA3 drives, 1x Heatsink, 3x ADD-On Modules - Included in system : 2000W Redundant Titanium Level Power Supply, X11SCE-F Motherboard, CSE-939HC-R2K04BP 3U Chassis - (Black)
1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100/E-2200, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. Up to 128GB unbuffered VLP ECC, up to DDR4-2666MHz; 4 DIMM slots
4. 1 Micro-LP slot (MicroLP upgradable)
5. 2x 3.5" SATA3 drives or 4x 2.5" SATA3 drives or 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive
6. M.2 Interface: 1 PCI-E 3.0 x4 and SATA M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
7. 2 GbE LAN ports via Intel i350
8. Aspeed AST2500 graphics
9. 4x 9cm Heavy duty fans with optimal cooling zone (per system)
10. 2000W Redundant power supplies Titanium Level Certified (per system)
Extra Specifications for Supermicro SYS-5039MC-H12TRF MicroCloud Barebone Single CPU, 12-Node
| Processor (per Node) | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 8 cores max. | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory (per Node) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC | ||
| Up to DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices (per node) | ||
| Chipset | Intel® C246 chipset | |
| SATA | SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Dual LAN with Intel® i350 | |
| Graphics | Aspeed AST2500 graphics | |
| Input / Output (per node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| System BIOS | ||
| BIOS Type | UEFI 128Mb | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| Hardware BIOS Virus protection | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Front Window (each node) | ||
| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-939HN-R2K04BP | |
| Dimensions and Weight | ||
| Height | 5.21" (132.5 mm) | |
| Width | 17.5" (444.5 mm) | |
| Depth | 29.5" (749.3 mm) | |
| Package | 16.1" (H) x 28.35" (W) x 42.36" (D) | |
| Weight | Gross Weight: 125lbs (56.70kg) | |
| Net Weight: 132lbs (59.87kg) | ||
| Color | Black | |
| Expansion Slots (per Node) | ||
| Micro-LP | 1 Micro-LP slot (MicroLP upgradable) | |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 and SATA | |
| M.2 Form Factor: 2280, 22110 | ||
| M.2 Key: M-Key | ||
| Drive Bays (per node) | ||
| Internal | 2x 3.5" SATA3 drives or 4x 2.5" SATA3 drives or 2x 2.5" NVMe + 2x 2.5" SATA3 drives or 2x 2.5" NVMe + 1x 3.5" SATA3 drive | |
| System Cooling | ||
| Fans | 4x 9cm Heavy duty fans with optimal cooling zone | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vac (UL/CUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz | |
| 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | ||
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| +12V | Max: 83.3A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166.7A / Min: 0A (230Vac-240Vac) | ||
| Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level [ Test Report ] | |
| [ Test Report ] | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039MC-H12TRF (Black) | |
| Motherboard | ||
| Motherboard | Super X11SCE-F | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCE-F | 12 | Super X11SCE-F Motherboard | |
| Motherboard / Chassis | CSE-939HN-R2K04BP | 1 | 3U Chassis | |
| Add-on Card / Module | AOM-BPN-MC12S-P | 12 | AOM-BPN-MC12S | |
| Add-on Card / Module | AOM-CGP-I2M-P | 12 | AOM-CGP-I2M-O-P | |
| Add-on Card / Module | AOM-GEM-001-P | 1 | [NR]AOM-GEM-001-O-P | |
| Add-on Card / Module | AOM-LAN-MC12S-P | 1 | [NR]AOM-LAN-MC12S-P | |
| Add-on Card / Module | AOM-PDB-MC12S-P | 12 | AOM-PDB-MC12S | |
| Backplane | BPN-SAS-939HS | 1 | 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane | |
| Cable 1 | CBL-0218L | 1 | USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG | |
| Cable 2 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Air Shroud | MCP-310-93904-0N | 12 | Mylar air shroud for VLP 4 DIMM (short gap, quick install) | |
| Heatsink / Retention | SNK-P0047PSR | 12 | LP CPU Heat Sink for 12-node Micro Cloud Series Servers | |
| Heatsink / Retention | SNK-P0047PSRK | 12 | Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server | |
| * Power Supply | PWS-2K04F-1R | 2 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH | |
| * Power Distributor | PDB-PT939-DSG | 2 | Adapter Board for SC939 special gold finger directly plug to BP. | |
| * Cable 3 | CBL-0355L | 2 | ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG | |
| * Cable 4 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| * Cable 5 | CBL-PWCD-0859 | 1 | PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG | |
| * Cable 6 | CBL-PWCD-0860 | 1 | PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG | |
| * FAN 1 | FAN-0195L4 | 4 | 92x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou | |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOM-CTG-i2SM-12 | $ 310.00 | 0 | MicroLP 2x 10GbE SFP+, PCI-E 3.0 x8, Intel 82599ES | ||
| Network Card(s) | AOM-C25G-m1SM | 0 | MicroLP, 1x 25GbE SFP28, PCI-E 3.0 x8, Mellanox® | |||
| Network Card(s) | AOM-C25G-i2SM-12 | 0 | MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node | |||
| Network Card(s) | AOM-CTGS-i2TM | 0 | MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550 | |||
| Network Card(s) | AOM-CTG-i1SM | $ 198.00 | 0 | MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN, ver 1.21 only | ||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| TPM security module | AOM-TPM-9670V | $ 52.00 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller,Vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 52.00 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller,Vertical form factor | ||
| Add-on Card / Module | AOM-BPN-MC12S4-P | 12 | 4x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS | |||
| Bracket | MCP-240-93912-0N | $ 17.50 | 12 | Bracket for 4NVMe MB tray with NVMe standoff | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
