| System Memory |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB ECC , DDR4-2666MHz |
| Memory Type | 2666/2400/2133 MT/s SDRAM 72-bit, |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® C246 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210 |
| SATA | Intel® C246 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Graphics | 1 ASPEED AST2500 BMC port(s) |
| Input / Output |
| SATA | 8 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.1 Gen2 port(s) (2 rear) |
| 6 USB 2.0 port(s) (4 via header; 2 rear) |
| 3 USB 3.1 Gen1 port(s) (2 via header; 1 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Features | SMBIOS 2.7 |
| USB Keyboard support |
| ACPI 6.0 |
| Plug and Play (PnP) |
| RTC (Real Time Clock) Wakeup |
| PCI 3.0 |
| UEFI 2.7 |
| BIOS Type | 256MB UEFI |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Software | SuperDoctor® 5, NMI, SUM , SPM , Intel® Node Manager, SSM , IPMI2.0 , Watchdog |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| PC Health Monitoring |
| FAN | 6 fans with tachometer status monitoring |
| Fan speed control |
| Thermal control tachometer fan connectors |
| 6x 4-pin fan headers (up to 6 fans) |
| Overheat LED indication |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Other Features | WOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages |
| Product SKUs |

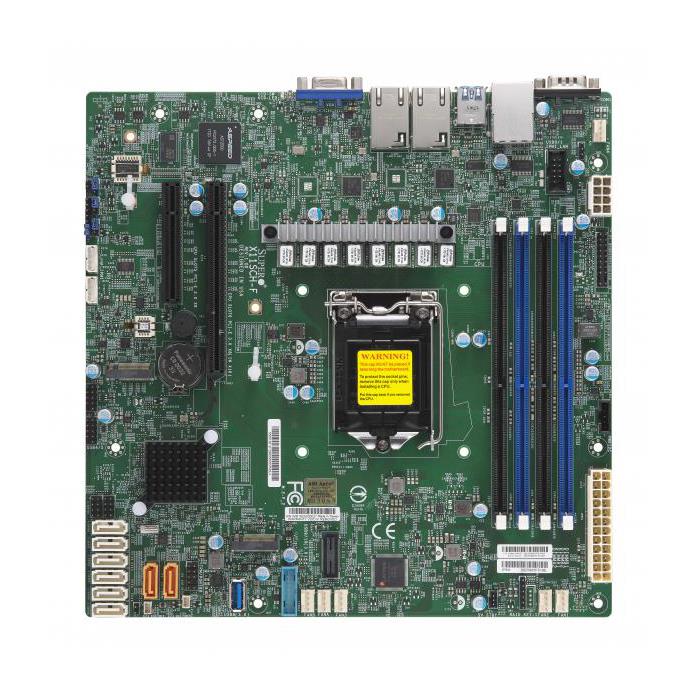

| Product SKUs | MBD-X11SCH-F |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP |
| Core | Up to 8 cores, 16 threads |
| Expansion Slots |
| PCIe | 1 PCIe 3.0 x8 (in x16 slot), |
| 1 PCIe 3.0 x8 |
| M.2 | Key: M-Key |
| M.2 Interface: PCIe 3.0 x4 |
| Form Factor: 22110, 2280 |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
