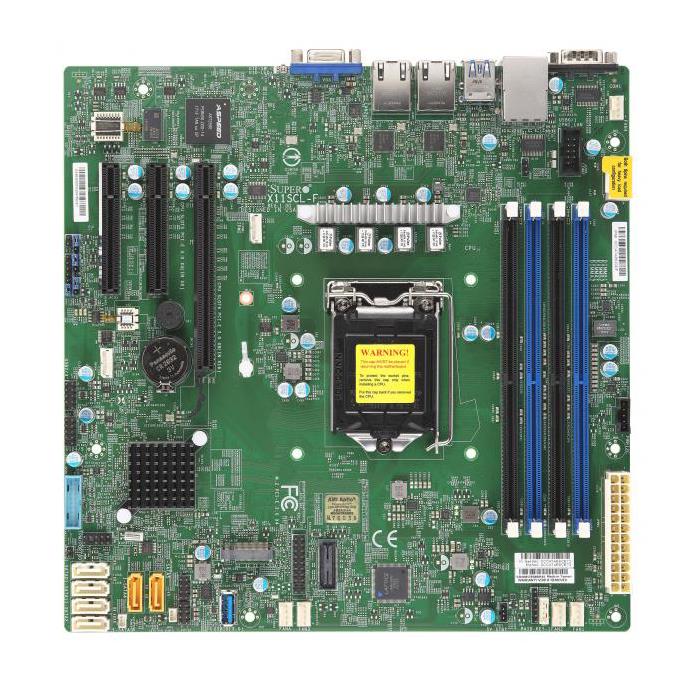

Supermicro X11SCL-F Motherboard Micro-ATX Single Socket H4 (LGA 1151)
Supports Intel Xeon E-2100/E-2200 Processor
On-Board Dual LAN with 1GbE, 2 SATA DOM, 1 TPM
Intel C242 controller for 6 SATA3 (6 Gbps) ports RAID 0,1,5,10
Up to 128GB UDIMM, DDR4-2666MHz memory in 4 DIMM slots

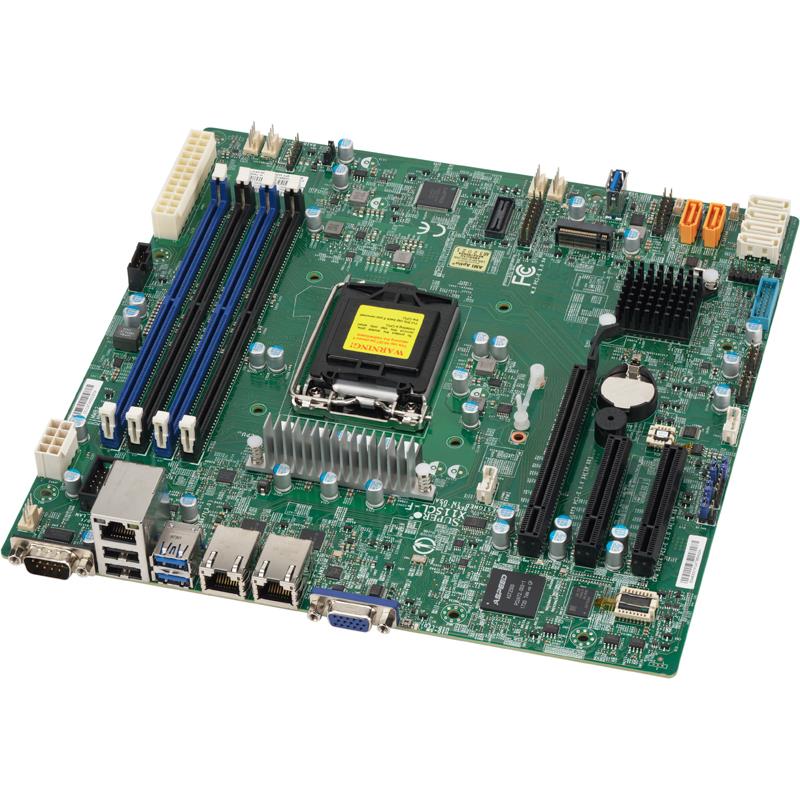

Motherboard Micro-ATX Single Socket H4 (LGA 1151) for Intel Xeon E-2200, Intel 8th Gen. Core i3 Series Processors - supports up to 128GB Unbuffered ECC DDR4-2666Mhz UDIMM in 4 memory slots, Intel C242 chipset, onboard 2x 1GbE LAN port, VGA, 6 USB, 1x PCIe 3.0 x8 (in x16 slot) and 2x PCIe 3.0 x4, 1x M.2 interface - MBD-X11SCL-F-O
1. 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
2. Intel® C242 chipset
3. Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
4. Expansion slots: 1 PCIe 3.0 x8 (in x16), 2 PCIe 3.0 x4 (in x8)
5. Dual GbE LAN with Intel® i210-AT
6. M.2 NGFF connector
7. 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
8. I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
9. Support up to 6 Cores
Extra Specifications for Supermicro X11SCL-F Motherboard Micro-ATX Single Socket H4 (LGA 1151)
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz | ||
| Memory Type | 2667/2400/2133 MT/s SDRAM 72-bit, | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | Intel® C242 | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with 1GbE with Intel® I210 | |
| SATA | Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7 | |
| USB Keyboard support | ||
| ACPI 6.0 | ||
| Plug and Play (PnP) | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| UEFI 2.7 | ||
| BIOS Type | 256MB UEFI | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Software | SuperDoctor® 5, SUM , KVM with dedicated LAN, SSM , IPMI2.0 | |
| PC Health Monitoring | ||
| FAN | 5 fans with tachometer status monitoring | |
| PWM fan speed control | ||
| Thermal control tachometer fan connectors | ||
| Overheat LED indication | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Other Features | WOL, UID, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management | |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages | |
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Product SKUs | ||
| Product SKUs | MBD-X11SCL-F | |
| Physical Stats | ||
| Form Factor | microATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | 8th/9th Generation Intel® Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor | |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP | ||
| Core | Up to 6 cores, 12 threads | |
| Note | BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core™ i3/Pentium®/Celeron® Processors | |
| Input / Output | ||
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear) | |
| 5 USB 3.1 Gen1 port(s) (2 via header; 1 type A; 2 rear type A) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x8 (in x16 slot), | |
| 2 PCIe 3.0 x4 (in x8 slot) | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 1 PCIe 3.0 x4 | ||
| Form Factor: 2280/22110 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
