- Supermicro AS-2123US-TN24R25M 2U Barebone Dual AMD Processor

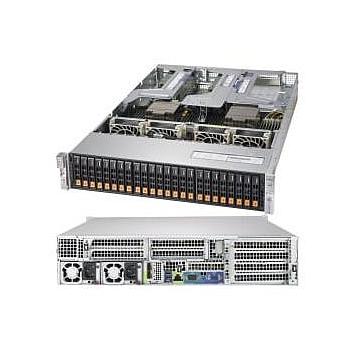

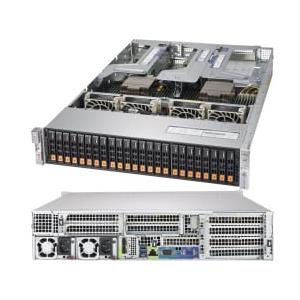

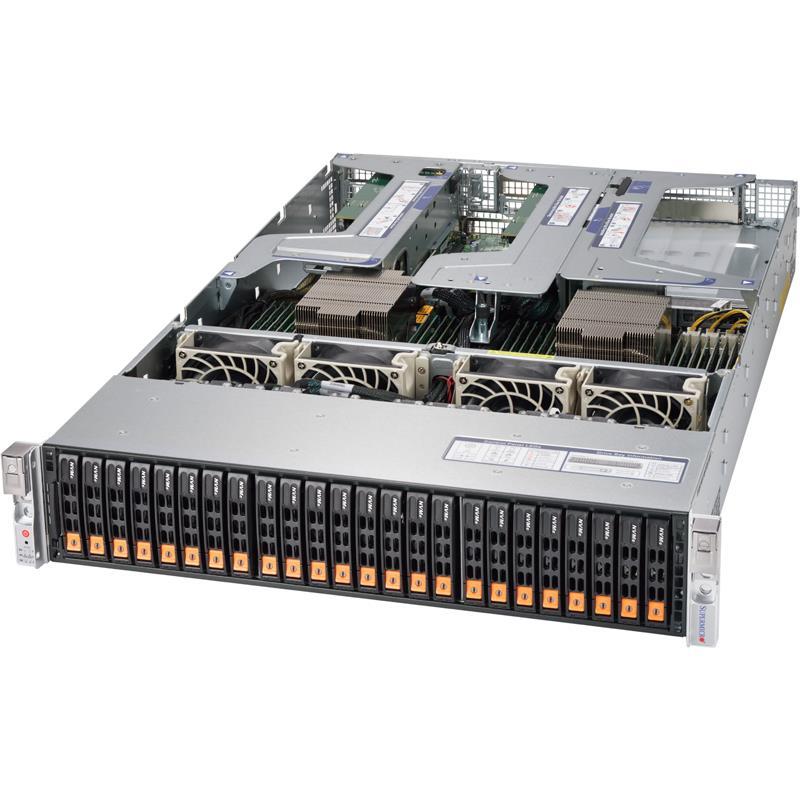

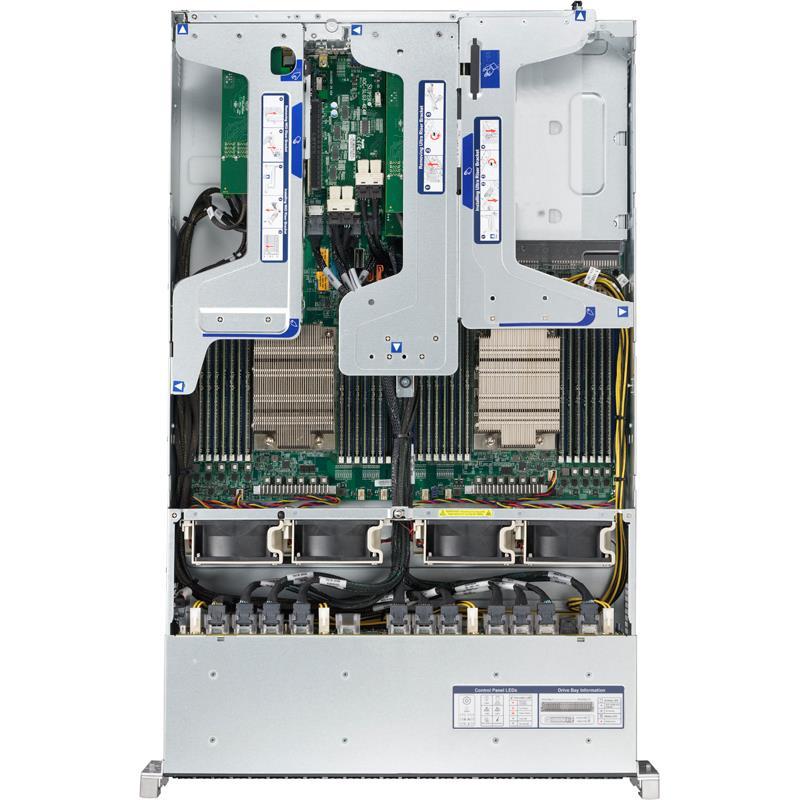

Supermicro AS-2123US-TN24R25M 2U Barebone Dual AMD Processor
• Virtualization
• Cloud Computing
• High-End Enterprise Server
• Hyperconverged Storage
Barebone 2U Rack Server Socket-SP3 for Dual AMD EPYC 7000-Series Processors, supports up to 4TB DDR4 Registered ECC 2666Mhz SDRAM in 32 DIMM slots; 24x Hot-Swap 2.5in Drive Bays for U.2 NVMe drives; Onboard Dual 25G SFP28 LAN ports; IPMI 2.0 + KVM with dedicated LAN; (MBD-H11DSU-iN + CSE-219U2TS-R1K62P) - AS -2123US-TN24R25M
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 NVMe HDD drive.
1. Dual AMD EPYC™ 7001/7002 * Series Processors ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs (7001 Processors) 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs (Board revision 2.x required + 7002 Processors)
3. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management

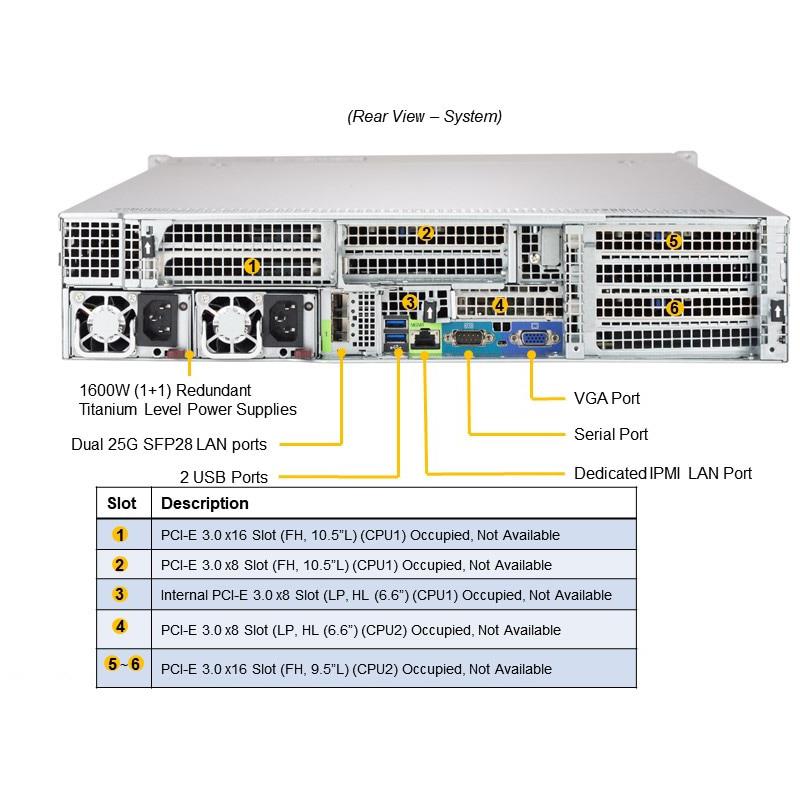

4. Dual 25G SFP28 LAN ports

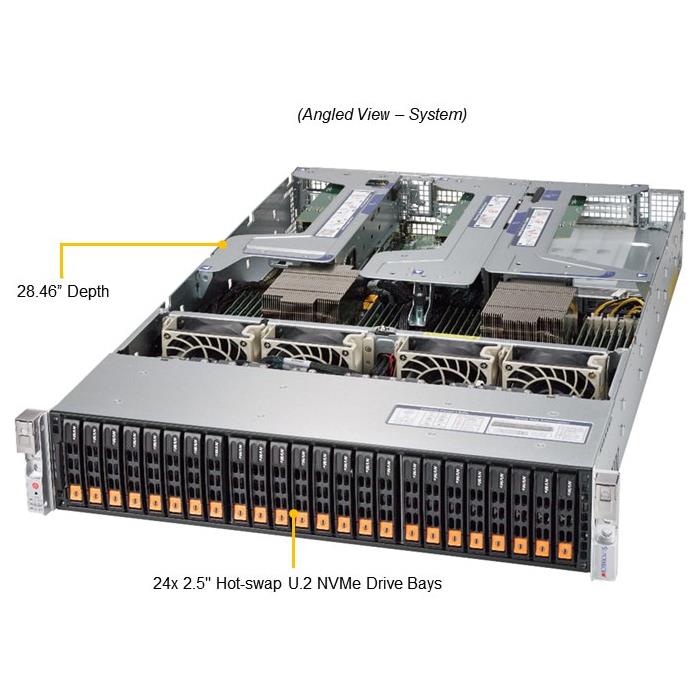

5. Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays
6. 1600W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2123US-TN24R25M 2U Barebone Dual AMD Processor
| Product SKUs | ||
| AS -2123US-TN24R25M | A+ Server 2123US-TN24R25M | |
| Motherboard | ||
| Motherboard | H11DSU-iN | |
| Processor/Chipset | ||
| CPU | Dual AMD EPYC™ 7001/7002 * series Processors ( * Board revision 2.x required ) | |
| Socket SP3 | ||
| Supports CPU cTDP up to 280W ** | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| Note | ** Certain CPUs with high TDP higher than 225W may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |

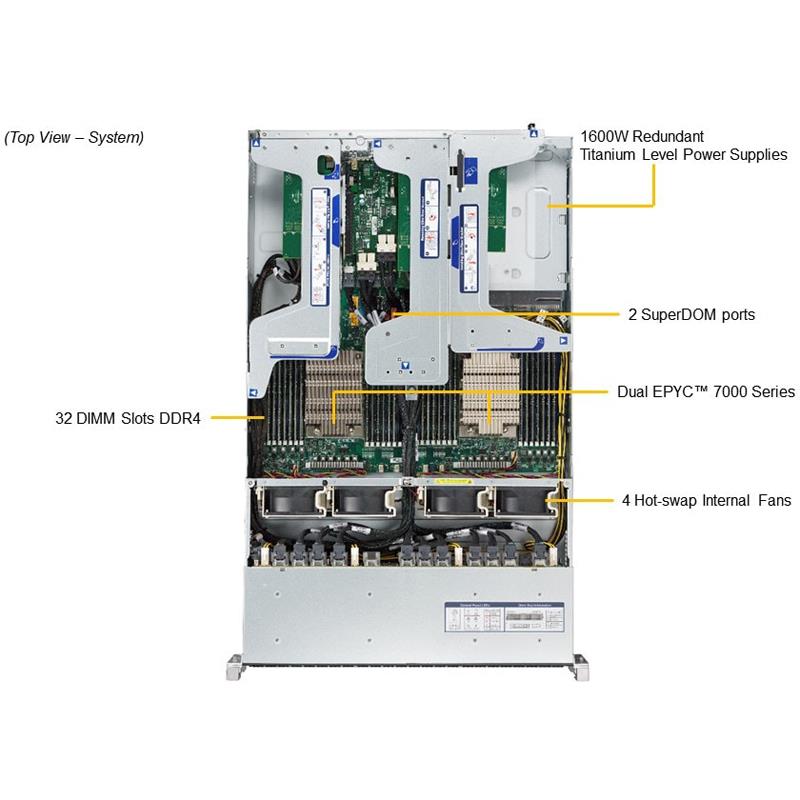

| 32 DIMM slots | ||
| Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Connectivity | Dual 25GbE SFP28 ports via AOC-2UR68-M2TS-O (Mellanox ConnectX-4 Lx EN) | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| 2U | No expansion slot available. * | |

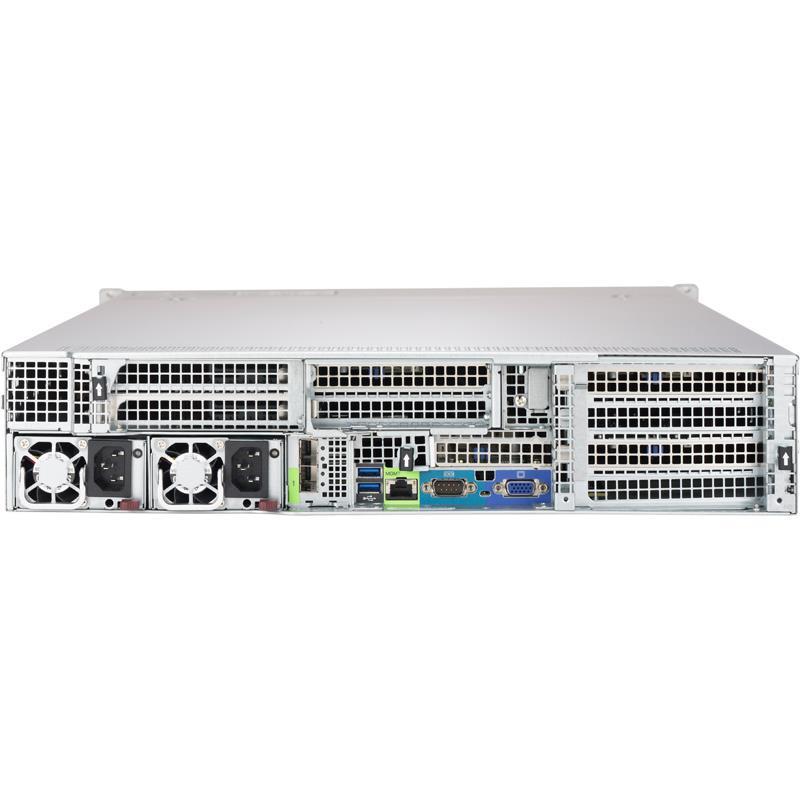

| Input / Output | ||
| NVMe | 24 U.2 NVMe support | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Dual 25G SFP28 LAN ports | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| VGA | 2 VGA ports (1 rear, 1 onboard) | |
| Others | 1 COM port | |
| 2 SATA DOM power connectors | ||
| TPM 2.0 header | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-219U2TS-R1K62P | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 28.46" (723mm) | |
| Package | 9.96" (H) 24.60" (W) 45.43" (D) | |
| Weight | Net Weight: 39 lbs (17.7 kg) | |
| Gross Weight: 63 lbs (28.6 kg) | ||

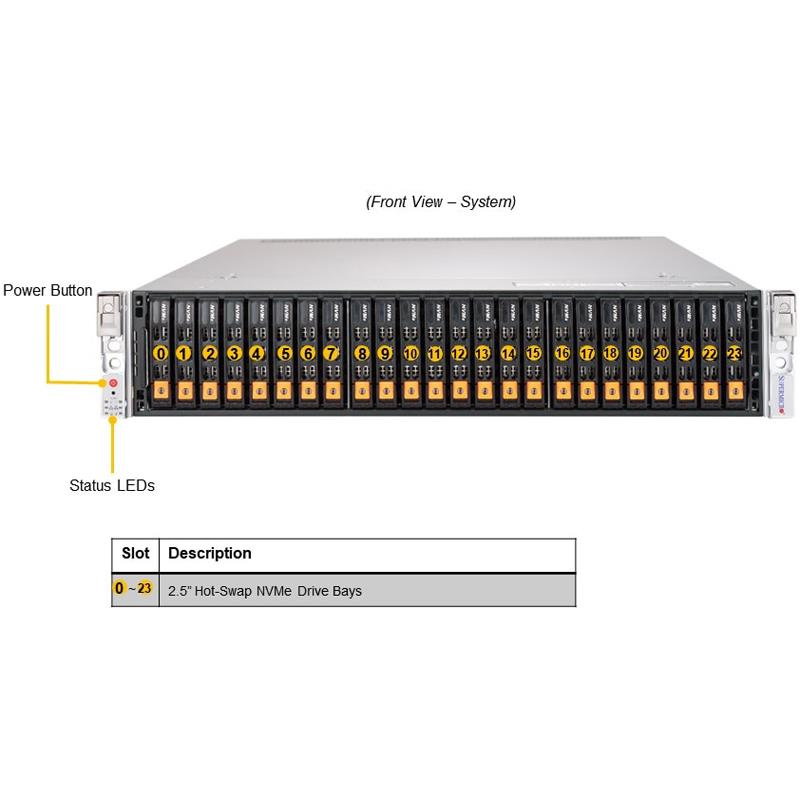

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 24 hot-swap 2.5" U.2 NVMe drive bays | |
| System Cooling | ||
| Fans | 4 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply | ||
| Power Supply | 1600W Redundant Power Supplies with PMBus | |
| Total Output Power | 1600W/1000W | |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 13 - 9A / 50-60Hz | |
| 200-240Vac / 10 - 8A / 50-60Hz | ||
| +12V | Max: 83.3A / Min: 0A (100-127Vac) | |
| Max: 133A / Min: 0A (200-240Vac) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 4-fan status tachometer monitoring | ||
| Up to four 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| I²C Temperature Sensing Logic | ||
| Thermal control for 4x Fan connectors | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11DSU-iN | 1 | Super H11DSU-iN Motherboard | |
| Chassis | CSE-219U2TS-R1K62P | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-2UR68-M2TS-P | 1 | 2U Ultra 2-port 25G SFP28, 1x PCI-E 3.0 x8 (internal) | |
| Add-on Card / Module | AOC-SLG3-2E4R-P | 2 | NVMe AOC by 8,HF,RoHS/REACH | |
| Add-on Card / Module | AOC-SLG3-4E4R-P | 4 | NVMe AOC by 16,HF,RoHS/REACH | |
| Backplane | BPN-NVME3-216N-S4 | 1 | 24-port 2U (SC216/219) NVMe direct-attached backplane, support 24x 2.5-inch NVMe devices, 4 of them are hybrid ports also support SAS3/SATA3 | |
| Cable 1 | CBL-0088L | 4 | 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG | |
| Cable 2 | CBL-0174L | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH | |
| Cable 3 | CBL-0318L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,24CM,28AWG | |
| Cable 4 | CBL-PWEX-1018 | 1 | BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C | |
| Cable 5 | CBL-PWEX-1019 | 2 | BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C | |
| Cable 6 | CBL-PWEX-1048 | 1 | BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 82CM,18AWG, 11A/pin, -25~85C | |
| Cable 7 | CBL-SAST-0818 | 2 | OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG | |
| Cable 8 | CBL-SAST-0819 | 2 | OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH | |
| Cable 9 | CBL-SAST-0841 | 8 | MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 76CM,34AWG,RoHS | |
| Cable 10 | CBL-SAST-0849 | 12 | MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG | |
| FAN 1 | FAN-0158L4 | 4 | 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH | |
| Drive Tray(s) | MCP-220-00121-0B | 20 | Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive) | |
| Drive Tray(s) | MCP-220-00121-0B | 4 | Black gen-3 2.5 NVMe drive tray, Orange tab with lock (improved EMI for hotswap NVMe drive) | |
| Air Shroud | MCP-310-81905-0B | 1 | Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH | |
| Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| Riser Card | RSC-W2-66 | 1 | RSC-W2-66 | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
