- Supermicro X10SDV-12C+-TLN4F Motherboard Mini-ITX Xeon D-1567 12-Core, FCBGA 1667

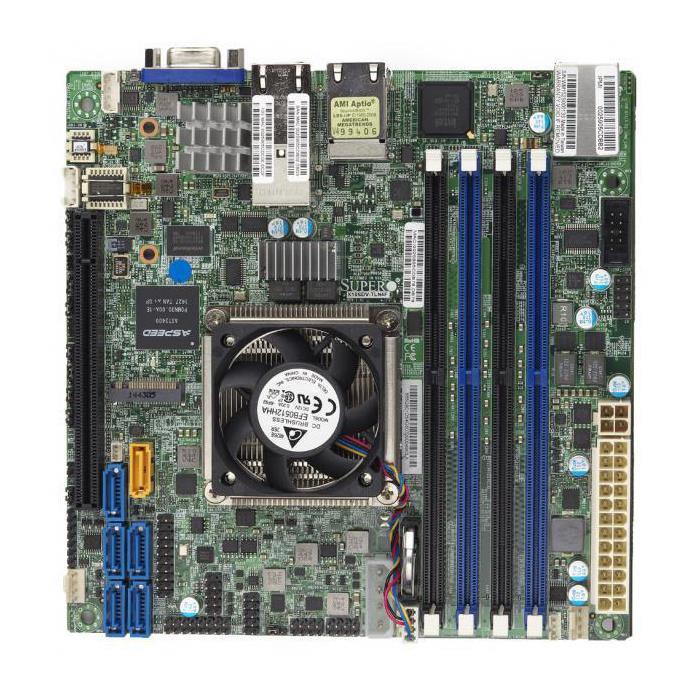

Supermicro X10SDV-12C+-TLN4F Motherboard Mini-ITX Xeon D-1567 12-Core, FCBGA 1667
Includes 6 SATA3 (6Gbps) ports via SoC controller
Powered by an Intel Xeon D‑1567 12‑core processor
Optimized for compact servers, networking, and storage appliances
Features 2x 10GbE and 2x Gigabit LAN ports for flexible connectivity
Motherboard Mini-ITX SoC Xeon D-1567 12-Core, FCBGA 1667 - Up to 128GB DDR4 ECC RDIMM in 4x slots - On-board : SATA RAID via SoC controller, 2x 10GBase-T Ethernet, 2x Gigabit Ethernet, IPMI 2.0, VGA, SuperDOM - MBD-X10SDV-12C+-TLN4F-O - (Retail Box)
1. Intel® Xeon® processor D-1567, Single socket FCBGA 1667; 12-Core, 24 Threads, 65W
2. System on Chip
3. Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
4. 1 PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280
5. 2 10GbE and 2 GbE LAN ports
6. 6 SATA3 (6Gbps) ports via SoC
7. 2 USB 3.0 ports (rear) 4 USB 2.0 ports (via headers)
8. 1 SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
9. 12V DC Input and ATX Power Source
Extra Specifications for Supermicro X10SDV-12C+-TLN4F Motherboard Mini-ITX Xeon D-1567 12-Core, FCBGA 1667
| System Memory | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots | |
| Up to 128GB Registered ECC RDIMM, DDR4-2133MHz | ||
| Memory Type | 2400/2133/1866/1600MHz DDR4 RDIMM and ECC/Non-ECC UDIMM | |
| (Operating speed up to 2133MHz) | ||
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I350-AM2 Dual LAN with 10Gbase-T | |
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 2 RJ45 10GBase-T ports | ||
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 3.0 ports (2 rear) | |
| 4 USB 2.0 ports (4 headers), | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | TPM Header | |
| System BIOS | ||
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| CPU Fan auto-off in sleep mode | ||
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor® 5, Watchdog | |
| PC Health Monitoring | ||
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control | |
| LED | CPU / System Overheat LED, UID/Remote UID | |
| Other Features | 12V DC or ATX Power Source, ACPI power management, Chassis intrusion detection, Chassis intrusion header, M.2 NGFF connector, Node Manager Support, RoHS, UID | |
| Voltage | +1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Monitors for CPU Cores, Supports system management utility, System level control, VBAT | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support | |
| Product SKUs | ||
| Product SKUs | ||
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) | |
| Processor/Cache | ||
| CPU | Socket FCBGA1667 supported, CPU TDP support 65W | |
| Intel® Xeon® Processor D-1567. | ||
| Cores / Cache | 12 cores, 24 threads / 18MB cache | |
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| M.2 | Key: M-Key | |
| Form Factor: 2242/2280 | ||
| M.2 Interface: PCI-E 3.0 x4 and SATA | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) | |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
