| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Main Specifications |

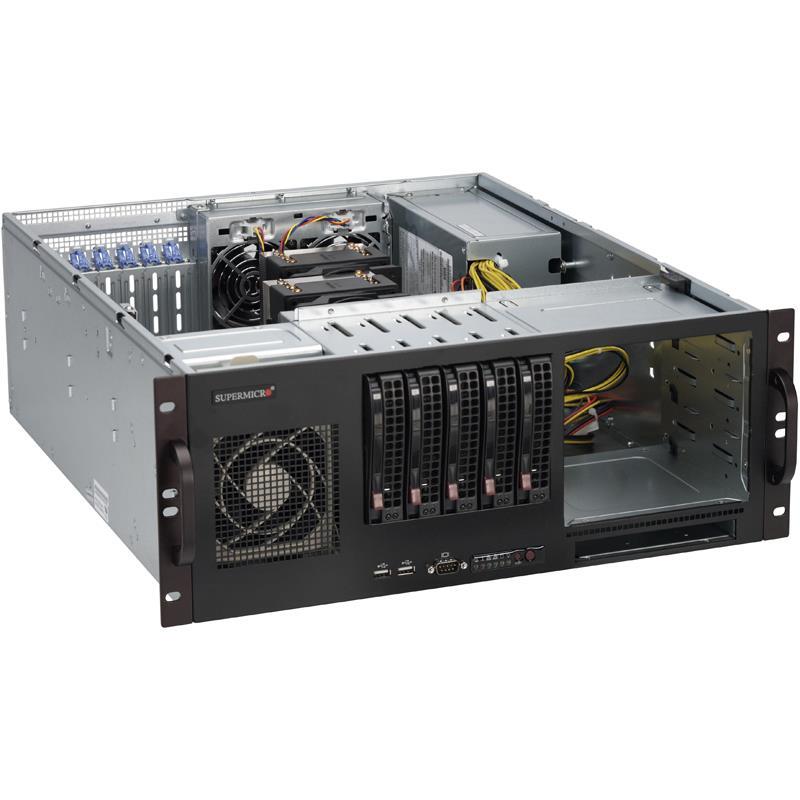

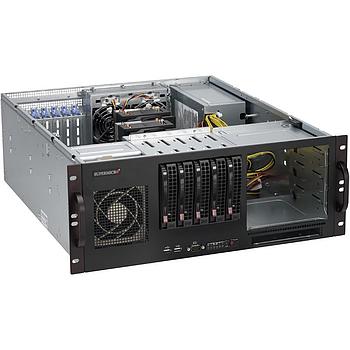

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 20.5" (521 mm) |
| Color | Black |
| Form Factor | 4U rackmount chassis |
| Supported Motherboards | Supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX |
| Weight | 25 lbs (11.34 kg) |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED |
| Networking |
| Ports | 2x USB 3.0 Port(s) |
| Drive Bays |
| Hot-swap | 5 x 3.5" hot-swap SAS/SATA |
| Peripheral Bays | 3 x standard 5.25" drive bay |
| Peripheral Drives |
| CD-ROM / DVD-ROM | Optional 1 x slim DVD-ROM drive bay |
| SAS/SATA Backplane |
| SAS/SATA Backplane | 4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform, HF, RoHS |
| System Cooling |
| Fans | 1 x 9cm hot-swap cooling fan(s) |
| Rear, 9.4K RPM |
| Front, 5K RPM |
| 2 x 8cm hot-swap redundant PWM cooling fan(s) |
| 1x FAN-0097L4, 2x FAN-0180L4 |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 full-height & full-length expansion slot(s) |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5C - 35C (41F - 95F) |
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | PS2 668W Multi-output power supply 80PLUS Platinum |
| 1x PWS-668-PQ |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL |
| Standard Parts List |
| Accessory | 1x Cooling Fan & Accessory |
| Hard Drive Trays | 5x MCP-220-00075-0B |
| Parts List - (Items Included) |
| Backplane | 1x BPN-SAS3-842TQ |
| Parts List |
| Cables | 1x CBL-0084L, 1x CBL-0087, 1x CBL-0160L, 2x CBL-0286L, 1x CBL-0336L, 5x CBL-0484L, 1x CBL-CUSB-0621, 1x CBL-CUSB-0621-1 |
| Miscellaneous |
| Compatible Motherboards | X11SAE, X11SAE-F, X11SPi-TF, X11SPL-F, X11SPM-TF, X11SPM-TPF, X11SPM-F |
| Applications | Chassis Intrusion switch |
