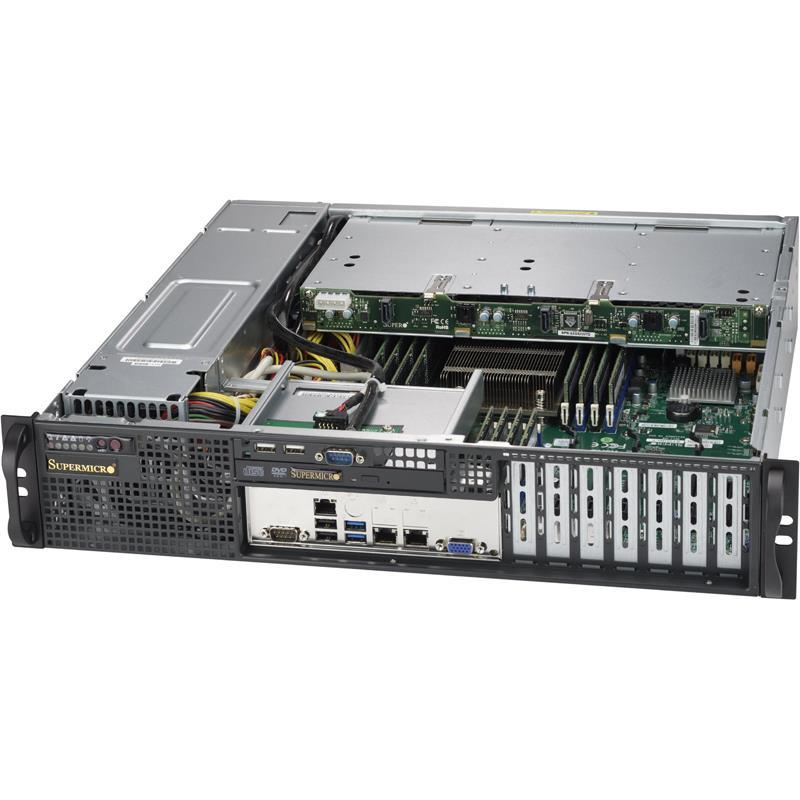

Supermicro CSE-823MTQC-R802LPB Server Chassis 2U Rackmount
• Supports motherboard sizes: EE-ATX/E-ATX/ATX
• 3x 3.5 hot-swap SAS/SATA drive bay with SGPIO
• Equipped 800W Redundant Power Supply Titanium
• Supports Dual and Single Intel and AMD processors
Rackmount 2U EATX w/ 800W Redundant Power Supply, for Dual Xeon 64-Bit, 3 Hot-Swap SAS/Sata Drive Trays (in rear), SAS/Sata Backplane, DVD-Rom, Mounting Rails Kit (Black)
• 7 low-profile expansion slot(s)
• 3 x 3.5 hot-swap SAS/SATA drive bay with SGPIO
• 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
• 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
• Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
• 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
• 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68 x 13, E-ATX 12 x 13, ATX 12 x 10 motherboards
Extra Specifications for Supermicro CSE-823MTQC-R802LPB Server Chassis 2U Rackmount
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 17.7" (450 mm) | |
| Color | Black | |
| Form Factor | 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Weight | 42 lbs (19.05 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7 low-profile expansion slot(s) | |
| Drive Bays | ||
| Hot-swap | 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | Optional 1 x slim DVD-ROM drive bay | |
| Peripheral Bay | Optional 2 x USB 2.0 ports | |
| Optional 1 x COM port tray | ||
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED | |
| System Cooling | ||
| Fans | 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | |
| Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | |
| Operating Temperature Range: 5C - 35C (41F - 95F) | ||
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Power Supply | ||
| Certification | 80PLUS Titanium Certified | |
| Power Supply | 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium | |
| 2x PWS-802A-1R | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL | |
| Standard Parts List | ||
| Accessory | 4x FAN-0157L4 | |
| 1x MCP-290-82303-0B, 1x MCP-320-82301-0B, 2x MCP-340-00035-0B | ||
| Power Distributor | 1x PDB-PT823M-8824 | |
| Rear Window | 1x MCP-240-82303-0B, 1x MCP-240-82304-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-29019-0N | |
| Backplane | 1x BPN-SAS3-825MTQ-P | |
| Drive Trays | 3x MCP-220-00075-0B, 1x MCP-220-82301-0N | |
| Mounting Rails | 1x MCP-290-00053-0N | |
| Parts List | ||
| Cables | 1x CBL-0071L, 2x CBL-0160L | |
