- Supermicro SYS-E50-9AP-N5 Compact Embedded Intel Processor Barebone
Supermicro SYS-E50-9AP-N5 Compact Embedded Intel Processor Barebone
• IoT Gateway
• Entry Networking Appliance
Barebone Proprietary, Embedded Intel Atom Processor E3940 Processor, 1.60GHz 4-Core/4 Thread. System-on-Chip, Up to 8GB 1866MHz DDR3L Non-ECC memory, 5x GbE LAN ports, Lockable 12v DC 40W Power adapter (CSE-E50 + MBD-A2SAP-H)
1. Intel® Atom® processor E3940 (9.5W, 4C) Single socket FCBGA 1296
2. System on Chip
3. 1 SATA 3.0 for 7mm 2.5" SATA SSD, 1 M.2 B-Key 2242 for SATA SSD
4. Up to 8GB Unbuffered Non-ECC SO-DIMM, DDR3L-1866MHz, in 1 socket
5. 1 Half size Mini-PCIe, 1 M.2 B-Key 2242/3042, 1 M.2 E-Key 2230
6. 5 LAN with Intel I210-IT
7. 2 USB 3.0, 2 USB 2.0, 1 COM, 2 HDMI, ALC 888S HD Audio, 1 TPM 2.0 onboard
8. Fanless design
9. Lockable 12V DC 40W power adapter
Extra Specifications for Supermicro SYS-E50-9AP-N5 Compact Embedded Intel Processor Barebone
Motherboard | ||
Motherboard | Super A2SAP-H | |
Processor/Cache | ||
CPU | Intel® Atom® processor E3940 | |
Single socket FCBGA 1296 | ||
9.5W, 4C | ||
System Memory | ||
Memory Capacity | Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket | |
Memory Type | DDR3L up to 1866MHz | |
DIMM Sizes | 8GB, 4GB | |
Memory Voltage | 1.35 V | |
On-Board Devices | ||
Chipset | System on Chip | |
Network Controllers | 5 LAN with Intel® Ethernet Controller I210-IT | |
Audio | ALC 888S HD Audio | |
Graphics | HDMI (max. resolution up to 3840 x 2160 @ 30Hz) | |
Intel® HD Graphics | ||
Input / Output | ||
LAN | 5 RJ45 Gigabit Ethernet LAN ports | |
USB | 2 USB 3.0 ports (rear) | |
2 USB 2.0 ports (front) | ||
Video | 2 HDMI port | |
COM | 1 COM | |
TPM | 1 TPM 2.0 onboard | |
Chassis | ||
Form Factor | Proprietary | |
Model | CSE-E50 | |
Dimensions | ||
Width | 5.82" (148mm) | |
Height | 1.72" (44mm) | |
Depth | 4.64" (118mm) | |
Package | 5.5" (H) x 9.5" (W) x 8" (D) | |
Weight | Gross Weight: 3.52 lbs (1.6 kg) | |
Net Weight: 2.2 lbs (1 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
LEDs | Power LED (Hard drive activity LED) | |
Expansion Slots | ||
PCI-Express | 1 Half size Mini-PCIe | |
M.2 | 1 M.2 B-Key 2242 for storage (SATA SSD) | |
1 M.2 E-Key 2230 for communication module | ||
Drive Bays / Storage | ||
Internal | 1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242 for SATA SSD | |
System Cooling | ||
Fans | Fanless design | |
Power Supply | ||
Power Supply | 40W lockable 12V DC power adapter | |
System BIOS | ||
BIOS Type | AMI UEFI | |
Management | ||
Software | Watch Dog | |
SuperDoctor® 5 | ||
Power Configurations | +12V DC Power Input | |
ACPI Power Management | ||
Control of power-on for recovery from AC power loss | ||
Force Power On by Jumper | ||
Operating Environment / Compliance | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) The use of industrial grade wide-temperature peripherals is required to meet 50°C operating temperature. | ||
Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s air flow | ||
Product SKUs | ||
Product SKUs | SuperServer E50-9AP-N5 (Black) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-A2SAP-H | 1 | Super A2SAP-H Motherboard | |
Motherboard / Chassis | CSE-E50 | 1 | IP51 Fanless Chassis for 2.5" PICO | |
Add-on Card / Module | AOM-PICO-3L-P | 1 | Add-on I/O Module for Pico-ITX A2SAP and Embedded IoT system SYS-E50 series with 3 GbE LANs.,RoHS | |
Cable 1 | CBL-PWCD-0260-IS | 1 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH | |

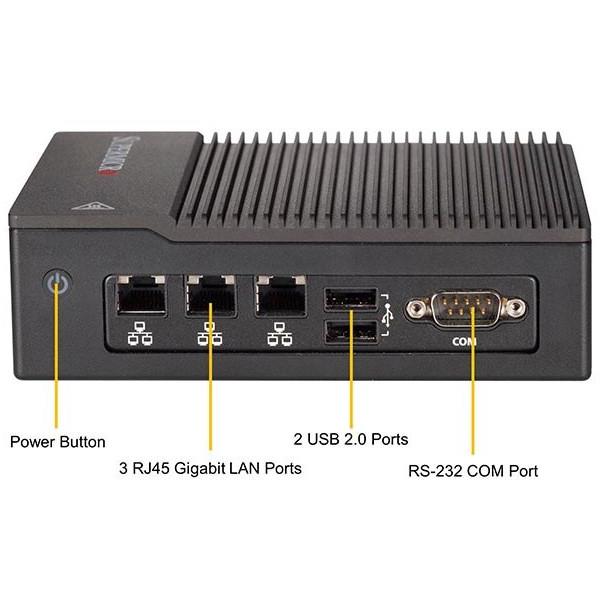

Parts | MCP-210-05002-0B | 1 | Front IO for CSE-E50 with 2xUSB2.0, 1xCOM, 3xLAN | |
Power Adapter | MCP-250-10135-0N | 1 | 40W 12V 3.33A, AC to DC lockable power adapter (0-40°C) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
