- Samsung MZQLB960HAJR-00007 Hard Drive 960GB NVMe PCIe3.0 x4 V4 TL - PM983 Series

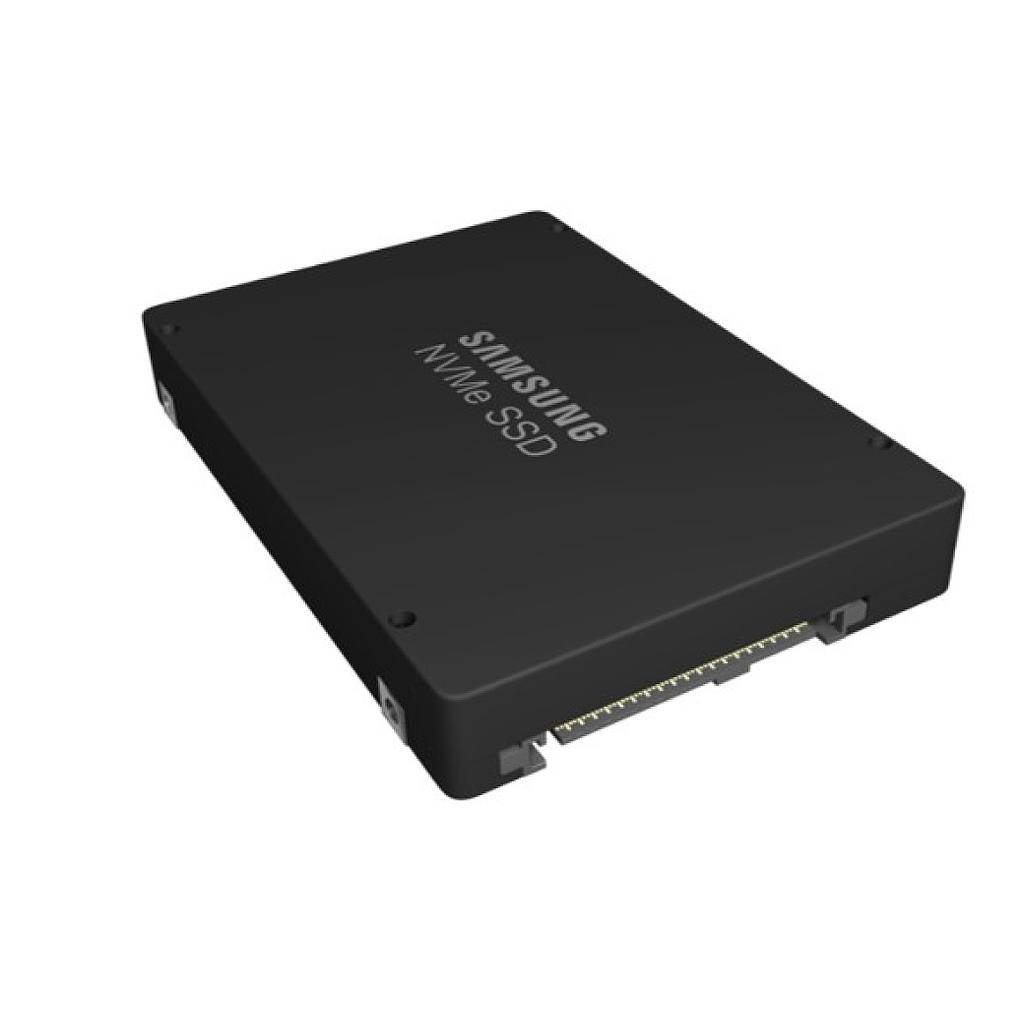

Samsung MZQLB960HAJR-00007 Hard Drive 960GB NVMe PCIe3.0 x4 V4 TL - PM983 Series
• High Speed with Low Latency
• Ultra-High Capacity SAS SSD
• Best Solution for Heavy Demands
• Top Solution for Diverse Applications
Hard Drive 960GB, NVMe PCIe3.0 x4, V4 TLC V, 2.5in (1.3 DWPD) - DC PM983 - OEM
• High Speed with Low Latency
• Ultra-High Capacity SAS SSD
• Best Solution for Heavy Demands
• Top Solution for Diverse Applications
• Enhanced Reliability, Better Performance
Extra Specifications for Samsung MZQLB960HAJR-00007 Hard Drive 960GB NVMe PCIe3.0 x4 V4 TL - PM983 Series
| Main Specifications | ||
| Capacity | 960 GB | |
| Device Type | Solid state drive - internal | |
| Dimensions (WxDxH) | 2.7 in x 3.9 in x 0.3 in | |
| Form Factor | 2.5" | |
| Interface | PCI Express 3.0 x4 (NVMe) | |
| NAND Flash Memory Type | 3D triple-level cell (TLC) | |
| Weight | 2.47 oz | |
| Performance | ||
| 4KB Random Read | 40000 IOPS | |
| 400000 IOPS | ||
| Average Latency | 15 s | |
| Internal Data Rate | 3000 MBps (read) / 1050 MBps (write) | |
| Lifetime Endurance (DWPD) | 1.3 | |
| SSD Endurance | 1366 TB | |
| Miscellaneous | ||
| MTBF | 2,000,000 hours | |
| Features | Native Command Queuing (NCQ), TRIM support, Dynamic and Static Wear Leveling, End-to-end data protection, Enterprise Power-Loss Protection | |
| RoHS | Yes | |
| Reliability | ||
| Non-Recoverable Errors | 1 per 10^17 | |
| Environmental | ||
| Storage Temperature | Min Operating Temperature: 32 F | |
| Min Storage Temperature: -40 F | ||
| Environmental Parameters | ||
| Operating Temperature | Max Operating Temperature: 158 F | |
| Min Operating Temperature | Max Storage Temperature: 185 F | |
| Humidity Range Operating: 5 - 95% (non-condensing) | ||
| Shock Tolerance (non-operating): 1500 g @ 0.5 ms half-sine wave | ||
| Vibration Tolerance (non-operating): 20 g @ 10-2000 Hz | ||
| Power | ||
| Power Consumption | 4 Watt (idle) | |
| 8.6 Watt (read) | ||
| 8.1 Watt (write) | ||
| Expansion / Connectivity | ||
| Interfaces | PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639) | |
