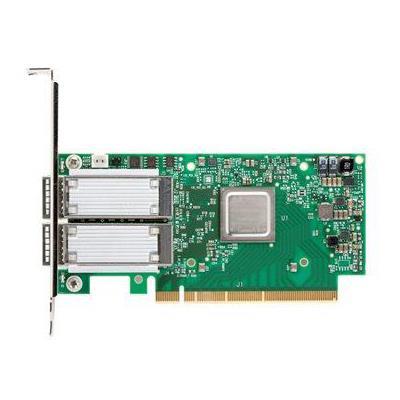

Mellanox MCX556A-ECAT Connectx-5 EDR/100GbE VPI Ethernet Adapter Card - Gen 4 PCIe x16 Dual-port QSFP28 Connectors
• Adaptive routing on reliable transport
• Tag matching and rendezvous offloads
• Embedded PCIe switch; Flexible pipeline
• Burst buffer offloads for background checkpointing
2-Port Connectx-5 VPI Ethernet Adapter Card - EDR Infiniband and 100GbE QSFP28 Gen 4 PCIe x16 - RoHS R6
• Flexible pipeline
• PCIe Gen 4 support
• Embedded PCIe switch
• NVMe over fabric (NVMf) offloads
• RoCE for overlay networks
• Enhanced vSwitch/vRouter offloads
• Adaptive routing on reliable transport
• Tag matching and rendezvous offloads
• Back-end switch elimination by host chaining
• Burst buffer offloads for background checkpointing
Extra Specifications for Mellanox MCX556A-ECAT Connectx-5 EDR/100GbE VPI Ethernet Adapter Card - Gen 4 PCIe x16 Dual-port QSFP28 Connectors
| Main Specifications | ||
| Cable Type | Network adapter | |
| Dimensions (WxDxH) | 5.6 in x 2.7 in | |
| Form Factor | Plug-in Card | |
| Interface Type | PCI Express 3.0 x16 | |
| PCI Specification Revision | PCIe 3.0 | |
| Miscellaneous | ||
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by | |
| Features | Auto-negotiation, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), On demand paging (ODP) | |
| RoHS | Yes | |
| Storage Controller | ||
| Connectivity Technology | Wired | |
| Data Transfer Rate | 100 Gbps | |
| Networking | ||
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Port Quantity | 2x 100Gb Ethernet / 100Gb Infiniband QSFP28 | |
| Expansion / Connectivity | ||
| Interface and Connections | 2 x 100Gb Ethernet / 100Gb Infiniband - QSFP28 | |
| Warranty: | 1 year |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Mellanox |
| Type of Support: | FULL |
| Phone No.: | 408-916-0055 |
| URL: | Click here for Manufacturer Website |
