| Motherboard |

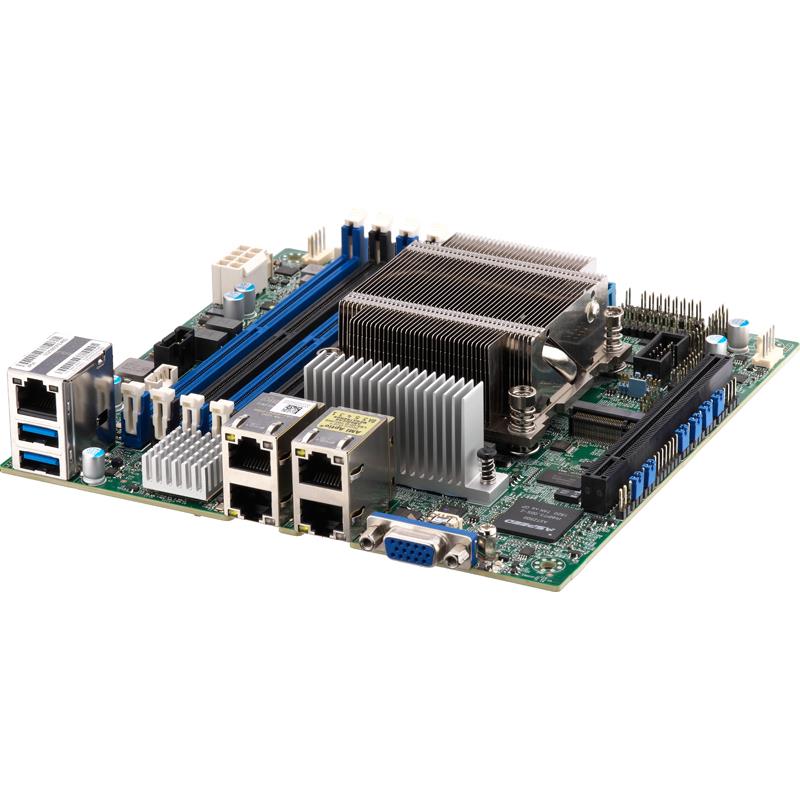

| Motherboard | Super M11SDV-8C-LN4F |
| Processor/Cache |
| CPU | Single AMD EPYC™ 3251 SoC Processor |
| Cores | 8 Core/16 Thread |
| System Memory |
| Memory Capacity | 4 DIMM slots |
| Supports up to 512GB Registered RCC DDR4 2666MHz SDRAM in 4 DIMMs |
| 4-channel memory bus |
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| SATA | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | Quad 1GbE with Intel I350-AM4 |
| IPMI | IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Support for Intelligent Platform |
| Management Interface v.2.0 |
| Graphics | Aspeed AST2500 BMC |

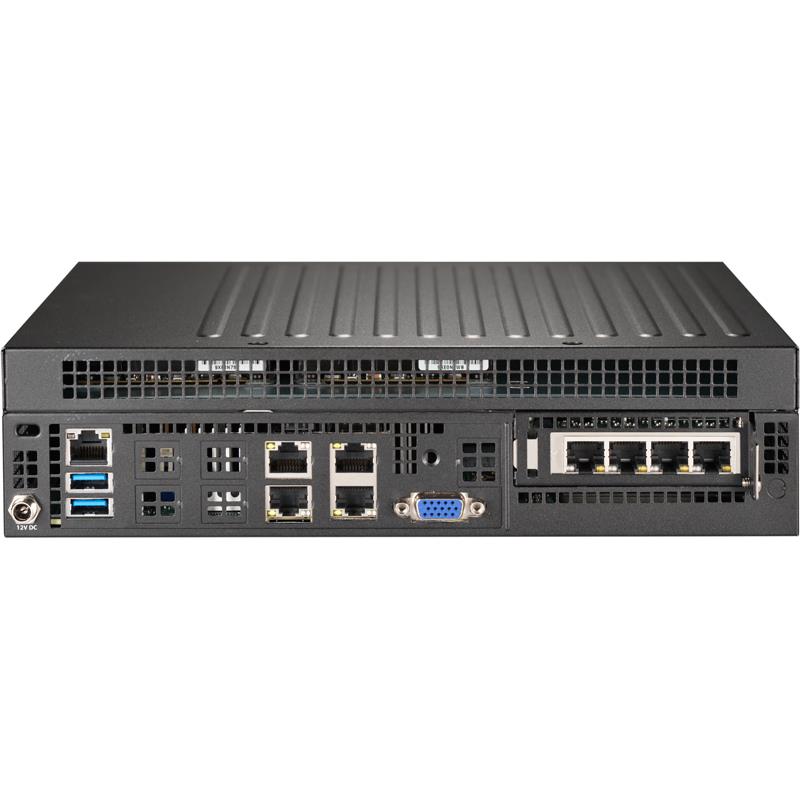

| Input / Output |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports |
| LAN | 4x 1GbE LAN ports |
| 1 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| Display | 1 VGA port |
| TPM | 1 TPM 2.0 header |

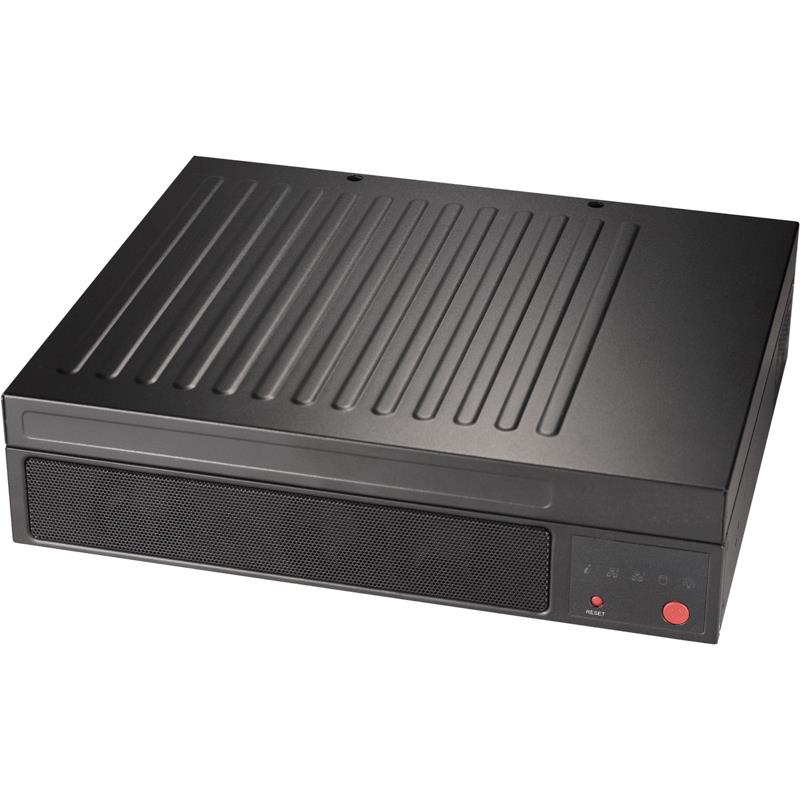

| Chassis |
| Form Factor | 1.5U Compact Box |
| Model | CSE-E301 |
| Dimensions |
| Width | 10" (254mm) / 15" (381mm) - pkg. |
| Height | 2.6" (66mm) / 10.87" (276mm) - pkg. |
| Depth | 8.9" (226mm) / 5.59" (142mm) - pkg. |
| Weight | Gross Weight: 6.8 lbs (3.08 kg) |
| Net Weight: 4.93 lbs (2.24 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 AOC slot (LP) |
| 1 M.2 PCI-E 3.0 x4, 2280, M Key |
| Drive Bays |
| Internal | 2 Fixed 2.5" drive bay bracket, supporting 15mm 2.5" Enterprise drive |
| System Cooling |
| Fans | 2x 40x28mm 4-PIN PWM Fans (FAN-0065L4, 13K RPM) |
| Power Supply |
| Power Supply | Lockable 12V DC 150W power adapter |
| System BIOS |
| BIOS Type | AMI 64Mb Flash EEPROM |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Product SKUs |

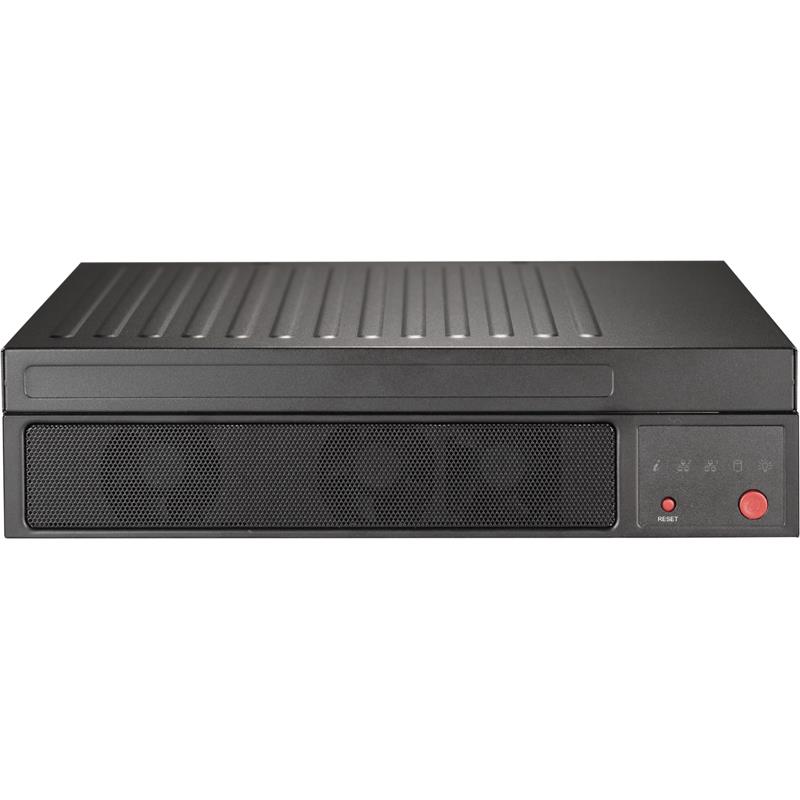

| Product SKUs | A+ Server E301-9D-8CN4 (Black) |
