| Motherboard |
| Motherboard | Super X11SDV-8C-TP8F |
| Processor |
| CPU | Intel® Xeon® processor D-2146NT , CPU TDP support 80W |
| Cores / Cache | 8 Cores, 16 Threads |
| System Memory |
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM |
| Up to 256GB DDR4 ECC RDIMM |
| 4 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM |
| Operating speed up to 2133MHz |
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | System on Chip (SoC) |
| SATA | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | Dual LAN with 10G SFP+ LAN via SoC |
| Dual LAN with 10Gbase-T |
| Quad LAN with Intel® Ethernet Controller I350-AM4 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | VGA via Aspeed AST2500 BMC |
| Input / Output |
| SATA | 12 SATA3 (6Gbps) ports, RAID 0, 1, 5, 10 |
| LAN | 1 RJ45 Dedicated IPMI LAN port (front) |
| 4 RJ45 1GbE LAN ports (front) |
| 2 RJ45 10GBase-T LAN ports (front) |
| 2 10G SFP+ LAN ports (front) |
| USB | 2 USB 3.0 ports (front) |
| Video | 1 VGA port (front) |
| System BIOS |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Intel® Node Manager |
| IPMI 2.0 |
| SUM |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-515-R407 |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 16.9" (429mm) |
| Package | 8" (H) x 27" (W) x 24" (D) |
| Weight | Gross Weight: 12 lbs (5.44 kg) |
| Net Weight: 8 lbs (3.63 kg) |
| Available Colors | Silver |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| System Information LED |
| Network activity LEDs |
| Hard drive activity LED |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 slot |
| 1 Mini PCI-E x1 slot |
| M.2 | 1 M.2 M-Key for storage: 2242/2280 |
| 1 M.2 B-Key for SSD & WAN: 2242 |
| Drive Bays |
| Internal | Up to 4x 2.5" drive bays |
| System Cooling |
| Fans | 4x 40mmx56mm cooling fan |
| AC/DC240V Input Redundant Power Supplies |
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus |
| Total Output Power | 400W |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) |
| +12V | Max: 33A / Min: 0.5A |
| +5V sb | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | Platinum Level Certified |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 40°C (50°F to 104°F) |
| Product SKUs |

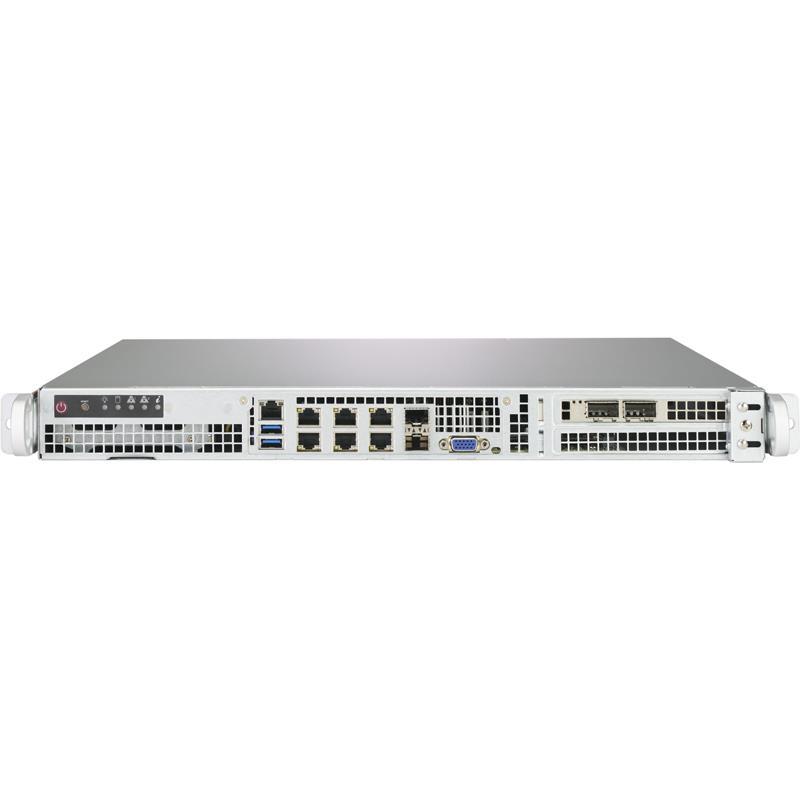

| Product SKUs | SuperServer 1019D-FRN8TP (Black) |
