- Supermicro SYS-1019D-16C-FHN13TP 1U Compact Barebone Embedded Intel Xeon D-2183IT Processor

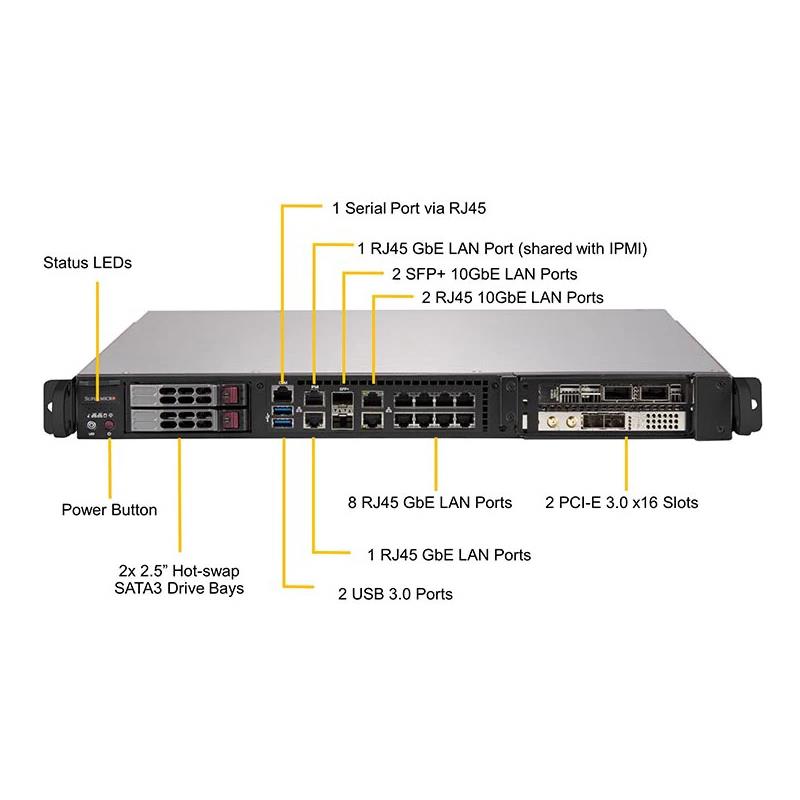

Supermicro SYS-1019D-16C-FHN13TP 1U Compact Barebone Embedded Intel Xeon D-2183IT Processor
• Multi-Access Edge Computing (MEC)
• Centralized/Cloud Radio Access
• Network (C-RAN)
• Universal Customer Premise
• Equipment (uCPE)
• Software Defined WAN (SD-WAN)
• Network Function Virtualization (NFV)
• Artificial Intelligence (AI)
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-2183IT Processor, 2.20GHz 16-Core/32 Thread. Up to 512GB LRDIMM or 256GB RDIMM in 4 memory slots. 9x 1GbE, 2x 10GBase-T and 2x 10G SFP+ LAN ports. 2x PCI-E, 3x M.2 slots. 2x 2.5in Hot swap drive bays and 2x 2.5in Internal drive bays. 500W PWS (CSE-513BTS-505WB + X11SDW-16C-TP13F)
This product is no longer available.
1. Intel® Xeon® D-2183IT Processor, 16-Core, 32 Threads, 2.2 GHz, 100W
2. Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 (FHFL) slots
4. 2 Hot-swap 2.5" drive bays, 2 Internal 2.5" SSD bays
5. 1 M-Key, 2280/22110, 1 E-Key, 2230, 1 B-Key, 3042
6. 9 GbE (1 port is used for management), 2x 10GbE, 2x 10G SFP+, and 1 Dedicated IPMI LAN ports
7. 2 USB 3.0, 1 VGA, 1 COM via RJ45
8. 500W Multi-output Platinum Level Power Supply
Extra Specifications for Supermicro SYS-1019D-16C-FHN13TP 1U Compact Barebone Embedded Intel Xeon D-2183IT Processor
| Motherboard | ||
| Motherboard | Super X11SDW-16C-TP13F | |
| Processor | ||
| CPU | Intel® Xeon® processor D-2183IT , CPU TDP support 100W | |
| Cores / Cache | 16 Cores, 32 Threads | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| Up to 256GB DDR4 ECC RDIMM | ||
| 4 DIMM slots | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 L/RDIMM | |
| Operating speed up to 2400MHz | ||
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
| Memory Voltage | 1.2 V | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | Dual 10G SFP+ via SoC | |
| Dual 10GBase-T via Intel X557 | ||
| Single 1GbE with Intel I210 | ||
| 8x 1GbE with Intel I350-AM4 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | VGA via Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 10G SFP+ LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| 9 RJ45 Gigabit Ethernet LAN ports | ||
| 2 RJ45 10GbE LAN ports | ||
| USB | 2 USB 3.0 ports (front) | |
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM via RJ45 | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-513BTS-505WB | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 15" (381mm) | |
| Package | 6.9" (H) x 19.5" (W) x 22.4" (D) | |
| Weight | Gross Weight: 25 lbs (11.34 kg) | |
| Net Weight: 14 lbs (6.35 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 (FHFL) slots | |
| M.2 | 1 M.2 M-Key , 2280/22110 | |
| 1 M.2 E-Key , 2230 | ||
| 1 M.2 B-Key , 3042 | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" drive bays | |
| Internal | 2 Internal 2.5" SSD bays (optional) | |
| System Cooling | ||
| Fans | 4x 40x28mm PWM fans (up to 6) | |
| Power Supply | ||
| Power Supply | 500W High-Efficiency Power Supply w/PMBus 1.2, I 2 C, and PFC | |
| AC Input | 100-240V, 50-60Hz, 6.6A max | |
| DC Output | +5V standby: 3A | |
| +3.3V: 12A | ||
| +5V: 15A | ||
| +12V: 41A | ||
| -12V: 0.2A | ||
| Certification | Platinum Certified | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 45°C (32°F to 113°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1019D-16C-FHN13TP (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDW-16C-TP13F | 1 | Super X11SDW-16C-TP13F Motherboard | |
| Motherboard / Chassis | CSE-513BTS-505WB | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0473L | 2 | SATA,INT,ROUND,ST-ST,21CM,30AWG | |
| Cable 2 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| Cable 3 | CBL-CDAT-0850 | 1 | CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS | |
| FAN 1 | FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| Parts | MCP-260-00144-0B | 1 | 1U I/O Shield for X11SDW with EMI Gasket, Black | |
| Air Shroud | MCP-310-51303-0B | 1 | Mylar Air shroud for SC513B + UP MB X11SDW | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| * Power Supply | PWS-505P-1H | 1 | 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH | |
| * Cable 4 | CBL-0160L | 1 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 5 | CBL-0335L | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG | |
| * FAN 2 | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| * Drive Tray(s) | MCP-220-00180-0B | 2 | 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket) | |
| * Parts | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black | |
| * Front Panel | MCP-280-80901-0N | 1 | SC809 FRONT CONTROL PANEL ASSY | |
| * Rail Set | MCP-290-00102-0N | 1 set | Outer rail, quick-release type, 25.6\" to 33.05\" | |
| * Rail Set | MCP-290-00108-0B | 1 set | Inner rail, front, short (quick) for 1U 17.2 | |
| * Fan Holder | MCP-320-00060-0N | 1 | Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\") | |
| * Parts | MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
