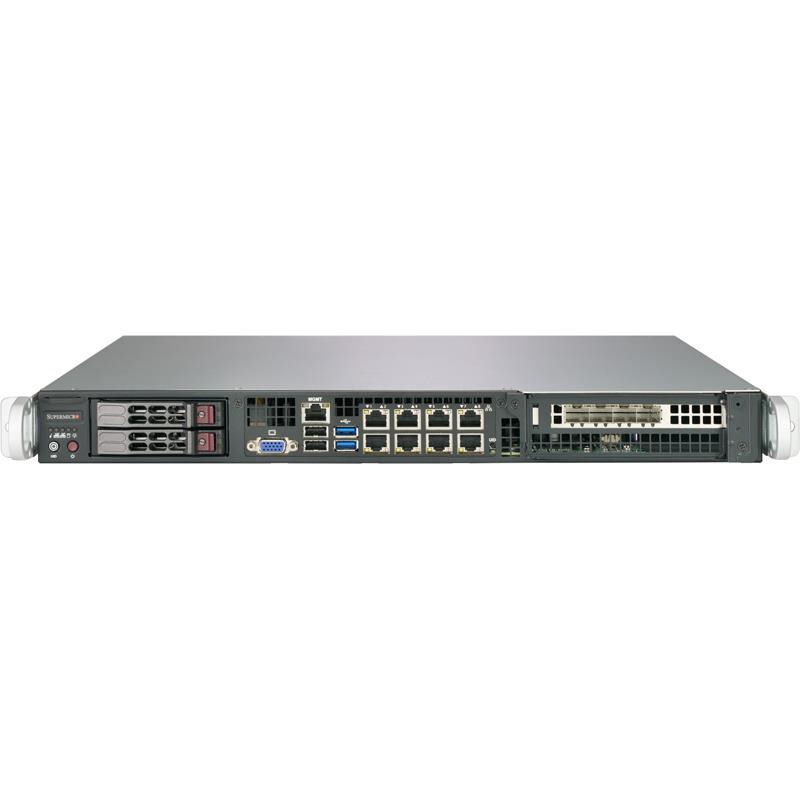

Supermicro SYS-1019C-FHTN8 1U Barebone Single Intel Xeon E-2100/E-2200 8th Generation Processors
• uCPE Network Appliance
• Network Security Appliance
• Virtualization
Barebone 1U Rackmount SuperServer, Support Single Socket H4 (LGA 1151), Supporting Intel Xeon E-2100/E-2200 Series 8th Generation. Intel Core i3, Intel Celeron, Intel Pentium Processors. Up to 128GB memory in 4 DIMM slots, Up to 4x 2.5in SATA drives, 1x PCIe 3.0 x16 slot, 1x M.2 Key slot, 8x 1GbE LAN port. 350W AC PWS (X11SCM-LN8F + CSE-513BTQC-350B)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. Up to 128GB unbuffered ECC UDIMM, DDR4-2666MHz; 4 DIMM slots
4. 1 PCI-E 3.0 x16 (FHFL) slot
5. 2 Hot-swap 2.5" SATA3 drive bays, 2 Internal 2.5" SATA3 drive bays (SSD only)
6. M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
7. 8 GbE LAN ports, 1 Dedicated IPMI LAN
8. 2 USB 3.1, 2 USB 2.0, 1 VGA
9. 350W AC-DC multiple output Platinum Level Power Supply
Extra Specifications for Supermicro SYS-1019C-FHTN8 1U Barebone Single Intel Xeon E-2100/E-2200 8th Generation Processors
| Motherboard | ||
| Motherboard | Super X11SCM-LN8F | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 80W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium® | ||
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC UDIMM | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| Note | 128GB system memory capacity will be available in 2019 through a published BIOS update. | |
| On-Board Devices | ||
| Chipset | Intel® C246 chipset | |
| SATA | Intel® C246 controller for SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Eight LAN with Intel® I210-AT | |
| Video | VGA via Aspeed AST2500 BMC | |
| Input / Output | ||
| SATA | 5 SATA3 (6Gbps) ports | |
| LAN | 8 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 ports (front) | |
| 2 USB 3.1 ports (front) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port (option) | |
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-513BTQC-350B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 15" (381mm) | |
| Package | 8" (H) x 24" (W) x 27" (D) | |
| Weight | Gross Weight: 14.1 lbs (6.4 kg) | |
| Net Weight: 10.0 lbs (4.54 kg) | ||
| Available Colors | Black front panel with silver chassis | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 (FHFL) slot | |
| M.2 | M.2 Key: M-Key | |
| M.2 Form Factor: 2280/22110 | ||
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" SATA3 drive bays | |
| Internal | 2 Internal 2.5" SATA3 drive bays (SSD only) | |
| System Cooling | ||
| Fans | 4x 40x28mm 4-pin PWM fans (optional: 2 additional fans) | |
| Power Supply | ||
| Power Supply | 350W AC power supply w/ PFC | |
| AC Voltage | 100-240 V, 50-60 Hz, 5.0-2.5 Amp | |
| +5V | Max.: 15 Amp | |
| Min.: 0.2 Amp | ||
| +5V standby | Max.: 3 Amp | |
| Min.: 0 Amp | ||
| +12V | Max.: 29 Amp | |
| Min.: 0.5 Amp | ||
| -12V | Max.: 0.2 Amp | |
| Min.: 0 Amp | ||
| +3.3V | Max.: 12 Amp | |
| Min.: 0.2 Amp | ||
| Certification | Platinum Level Certified | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1019C-FHTN8 (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCM-LN8F | 1 | Super X11SCM-LN8F Motherboard | |
| Motherboard / Chassis | CSE-513BTQC-350B | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-826TQ-B2B | 1 | 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-0206L | 2 | SATA,INT,ROUND,ST-ST,48CM,26AWG | |
| Cable 2 | CBL-0296L | 1 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | |
| Cable 3 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| Parts | MCP-150-00015-0B | 1 | Rubber pad, 3.0mm H, 10x10mm | |
| Parts | MCP-260-00131-0B | 1 | 1U I/O Shield for SC513B & X11SCL-LN4F with EMI Gasket, black color | |
| Air Shroud | MCP-310-51302-0B | 1 | Mylar Air shroud for SC513B with UP X11SCM MB | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors | |
| * Power Supply | PWS-350-1H | 1 | 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm) | |
| * Cable 4 | CBL-0160L | 1 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 5 | CBL-0335L | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG | |
| * FAN 1 | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| * Drive Tray(s) | MCP-220-00180-0B | 2 | 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket) | |
| * Parts | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black | |
| * Front Panel | MCP-280-80901-0N | 1 | SC809 FRONT CONTROL PANEL ASSY | |
| * Rail Set | MCP-290-00102-0N | 1 set | Outer rail, quick-release type, 25.6\" to 33.05\" | |
| * Rail Set | MCP-290-00108-0B | 1 set | Inner rail, front, short (quick) for 1U 17.2 | |
| * Fan Holder | MCP-320-00060-0N | 1 | Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\") | |
| * Parts | MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
