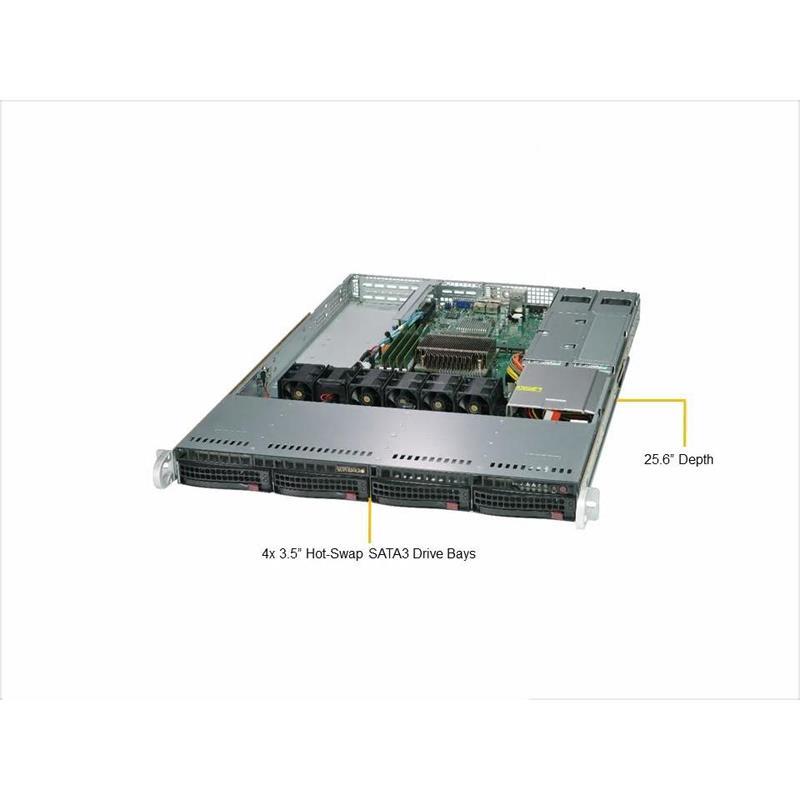

Supermicro SYS-5019C-WR 1U Barebone Single Intel Processor
• HA, High flexibility, VM, Communication
• Application and data serving
• Appliance Server
Barebone 1U Single Xeon E-2200 or 8th Gen Core i3 processors, up to 128GB in 4 DIMM slots, Intel C246 chipset, up to 4 hot-swap 3.5in drives, 1x M.2 PCIe 3.0 x4, 2x 1GbE LAN ports, 500W Redundant Power Supplies (CSE-815TQC-R504WB2 + X11SCW-F)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset
3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
4. 1 PCI-E 3.0 x16 or 2 PCI-E x8, 1 PCI-E 3.0 x4 (in x8) slot
5. 4 Hot-swap 3.5" drive bays
6. M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key
7. 2 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 2 COM, 1 TPM header
10. 500W High efficiency (96%) Redundant PSU, 54.5mm wide; Platinum Level
Extra Specifications for Supermicro SYS-5019C-WR 1U Barebone Single Intel Processor
| Motherboard | ||
| Motherboard | Super X11SCW-F | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 8 cores, 16 threads | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC UDIMM | ||
| Up to DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices | ||
| Chipset | Intel® C246 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via Intel C246 controller | ||
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® I210-AT | |
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 ports (rear) | |
| 2 USB 3.1 ports (rear) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port (header), 1 COM port (rear) | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| BIOS Features | SMBIOS 2.7 | |
| USB Keyboard support | ||
| ACPI 6.0 | ||
| Plug and Play (PnP) | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| UEFI 2.7 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-815TQC-R504WB2 | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 25.6" (650mm) | |
| Package | 8.5" (H) x 23.5" (W) x 33.7" (D) | |
| Weight | Gross Weight: 38 lbs (17.24 kg) | |
| Net Weight: 25 lbs (11.34 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 or 2 PCI-E x8 slots | |
| 1 PCI-E 3.0 x4 (in x8) slot | ||
| M.2 | M.2 Form Factor: 2260/2280/22110 | |
| M.2 Key: M-Key | ||
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 | ||
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" drive bays | |
| System Cooling | ||
| Fans | 5x 4cm heavy duty counter-rotating fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 500W Redundant Power Supplies with PMBus | |
| Total Output Power | 500W: 100 – 240Vac | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100-240Vac, 50-60Hz, 6.1-2.6A | |
| +12V | Max: 42A / Min: 0.5A | |
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| With Power Distributor | +5V: 25A | |
| +3.3V: 12A | ||
| -12V: 0.6A | ||
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5019C-WR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCW-F | 1 | Super X11SCW-F Motherboard | |
| Motherboard / Chassis | CSE-815TQC-R504WB2 | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Cable 1 | CBL-0296L | 1 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | |
| Cable 2 | CBL-0488L | 2 | SATA,INT,ROUND,ST-RA,55CM,30AWG | |
| Cable 3 | CBL-0489L | 1 | SATA,INT,ROUND,ST-RA,70CM,30AWG | |
| Cable 4 | CBL-CDAT-0660 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG | |
| Cable 5 | CBL-SAST-0641 | 1 | SATA,INT,ROUND,ST-RA,45CM,30AWG | |
| FAN 1 | FAN-0156L4 | 2 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH | |
| Air Shroud | MCP-310-19002-0N | 1 | SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB | |
| Manual | MNL-2108-QRG | 1 | 5019C-WR Quick Reference Guide | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-W-68 | 1 | 1U LHS WIO w/ 2 PCI-E x8 slots or PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors | |
| * Power Supply | PWS-504P-1R | 2 | 500W 1U Redundant PWS W/ 54.5MM Wide | |
| * Power Distributor | PDB-PT112-S2424 | 1 | WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424 | |
| * Cable 6 | CBL-0335L | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG | |
| * Cable 7 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| * Fan Holder | CSE-PT0135 | 1 | FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS | |
| * Peripheral Drive 1 | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS | |
| * FAN 2 | FAN-0156L4 | 3 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH | |
| * Front Panel | FPB-FP815U | 1 | 815 UIO front control board (U) | |
| * Parts | MCP-120-00030-0N | 1 | Blank LP L-bracket (1 raw of capsule hole) | |
| * Parts | MCP-120-00053-0N | 2 | Blank FH L bracket w/o SCSI cutout for SC825,836,846,743 | |
| * Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5"; HDD tray | |
| * Rear Window | MCP-240-00098-0N | 1 | WIO rear window for SC113,SC116, SC815 Redundant PWS | |
| * Power Supply | MCP-250-81502-0N | 1 | SC815 Redundant Power Distributor Cover | |
| * Rail Set | MCP-290-00054-0N | 1set | Rail set, quick/quick, optional for 1U 17.2 | |
| * Fan Holder | MCP-340-00035-0B | 3 | Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 84.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 51.50 | 1 | PHILPS slim DVD-RW SATA drive | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
| Internal 2.5" HDD Tray (FDD slot) | MCP-220-83601-0B | $ 24.50 | 1 | Black FDD dummy tray support 1x 2.5" slim HDD | ||
| Internal 2.5" HDD Tray (DVD slot) | MCP-290-00036-0B | $ 19.00 | 1 | Black DVD dummy tray support 1x 2.5" slim HDD | ||
| Cable for internal HDD | CBL-0484L | $ 17.00 | 2 | 55cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm | |||
| Hot-swap 2.5" kit (FDD slot) | MCP-220-81504-0N | $ 113.00 | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor | ||
| Hot-swap 2.5" kit (DVD slot) | MCP-220-81506-0N | $ 81.50 | 1 | Single slim 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor | ||
| Cooling Fan | FAN-0156L4 | $ 31.00 | 0 | 40x40x56mm 13K-11K RPM Counter-rotating Fan | ||
| Storage Controller card & cable | AOC-S3108L-H8iR& 1x CBL-SAST-0699 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3108L-H8iR-16DD& 1x CBL-SAST-0699 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 1x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,63HDD, RAID 0, 1, 10 | |||
| Storage Controller card & cable | AOC-S3008L-L8e& 1x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,122HDD HBA | |||
| CacheVault | BTR-CV3108-1U1 | $ 324.50 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray | ||
| CacheVault | BTR-TFM8G-LSICVM02 &BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
| Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
| Front Bezels | CSE-PTFB-813LB | $ 27.00 | 0 | Black front bezels | ||
| Front Bezels | CSE-PTFB-813-02B | $ 25.50 | 0 | Black Front Bezel w/ Round Venting Holes | ||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
