Supermicro SYS-5019C-MR 1U Barebone Single Intel Processor
• General Purpose, SMB, Web Hosting
• Application and data serving
• Archiving, Mail/Finance, Security
Barebone 1U Single Xeon E-2200 or 8th Gen Core i3 processors, up to 128GB in 4 DIMM slots, Intel C246 chipset, up to 4 hot-swap 3.5in drives, one M.2 PCIe 3.0 x4, Dual 1GbE LAN ports, 400W Redundant Power Supplies (CSE-813MFTQC-R407CB + X11SCM-F)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C246 chipset

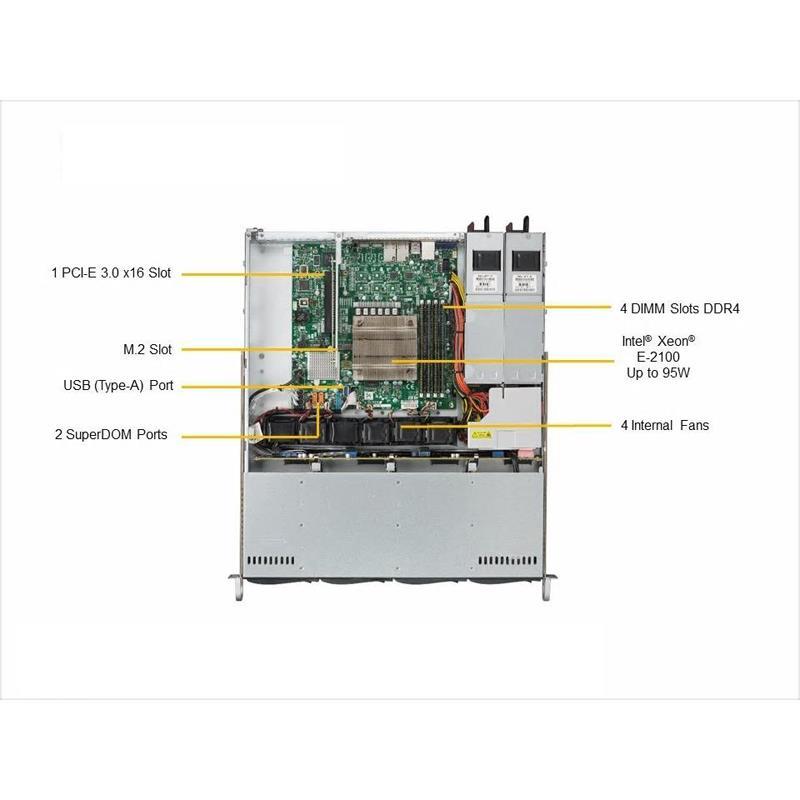

3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
4. 1 PCI-E 3.0 x16 slot

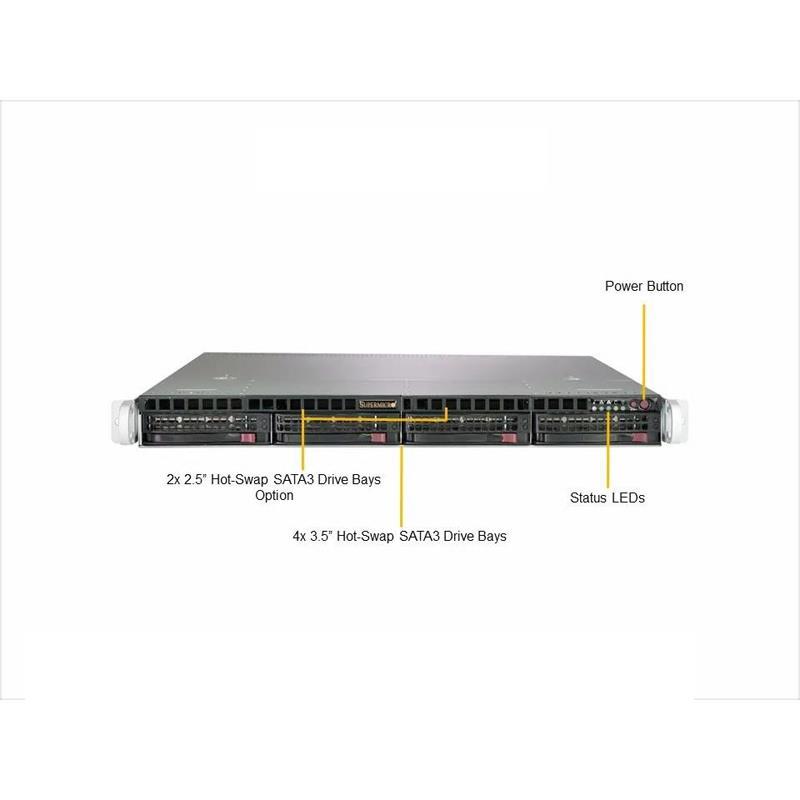

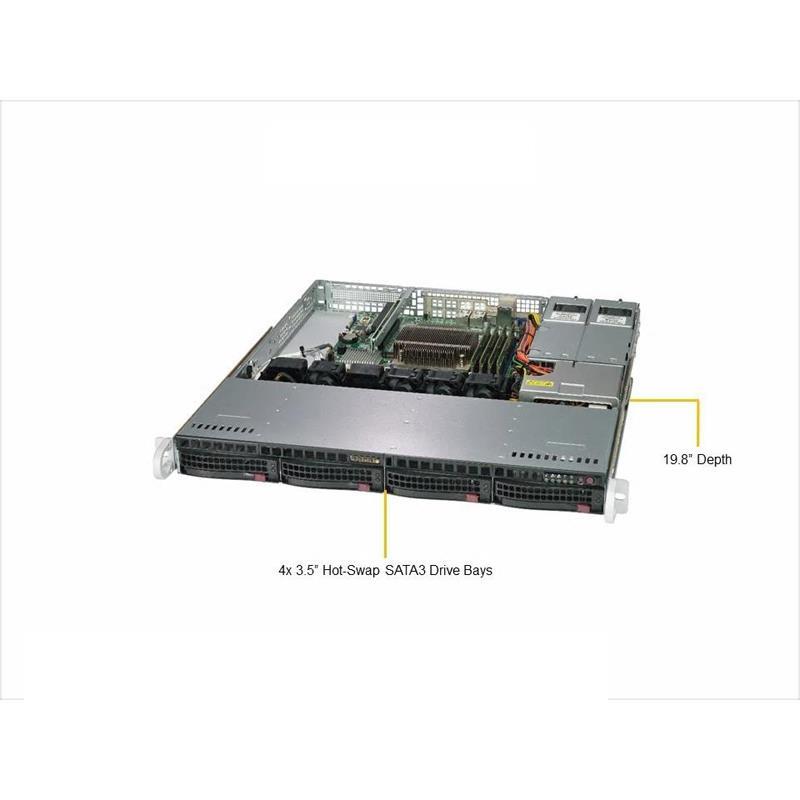

5. 4 Hot-swap 3.5" drive bays
6. M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key

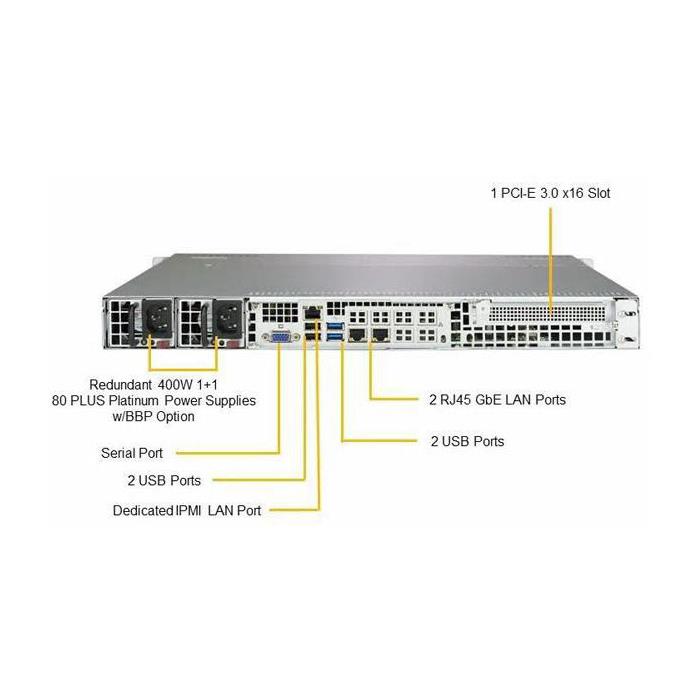

7. 2 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 1 COM (header), 1 TPM header
10. 400W High efficiency (96%) Redundant PSU; Platinum Level
Extra Specifications for Supermicro SYS-5019C-MR 1U Barebone Single Intel Processor
| Motherboard | ||

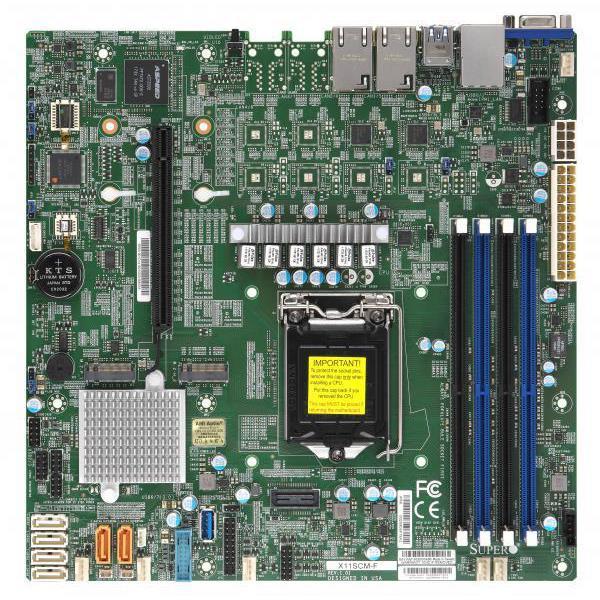

| Motherboard | Super X11SCM-F | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 8 cores, 16 threads | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC UDIMM | ||
| Up to DDR4-2666MHz | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices | ||
| Chipset | Intel® C246 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via Intel C246 controller | ||
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® I210-AT | |
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 ports (rear) | |
| 2 USB 3.1 ports (rear) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port (header) | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| BIOS Features | SMBIOS 2.7 | |
| USB Keyboard support | ||
| ACPI 6.0 | ||
| Plug and Play (PnP) | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| UEFI 2.7 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-813MFTQC-R407CB | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 19.85" (503mm) | |
| Package | 8.5" (H) x 23.4" (W) x 29.7" (D) | |
| Weight | Gross Weight: 34 lbs (15.42 kg) | |
| Net Weight: 21 lbs (9.53 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| M.2 | M.2 Key: M-Key | |
| M.2 Form Factor: 2280/22110 | ||
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 | ||
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 3.5" drive bays | |
| System Cooling | ||
| Fans | 4x 40x28mm PWM fans | |
| AC/DC240V Input Redundant Power Supplies | ||
| AC/DC240V Input Redundant Power Supplies | 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | 400W | |
| Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz | |
| 200 - 240Vdc / 3.4 - 3.2A (CCC Only) | ||
| +12V | Max: 33A / Min: 0.5A | |
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Level Certified | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5019C-MR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCM-F | 1 | Super X11SCM-F Motherboard | |
| Motherboard / Chassis | CSE-813MFTQC-R407CB | 1 | 1U Chassis | |
| Backplane | BPN-SAS3-815TQ | 1 | 1U 4-Port 12Gbps Backplane Support 4x3.5 | |
| Cable 1 | CBL-0488L | 1 | SATA,INT,ROUND,ST-RA,55CM,30AWG | |
| Cable 2 | CBL-CDAT-0660 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,27CM,28AWG | |
| Cable 3 | CBL-SAST-0639 | 2 | SATA,INT,ROUND,ST-RA,31CM,30AWG | |
| Cable 4 | CBL-SAST-0641 | 1 | SATA,INT,ROUND,ST-RA,45CM,30AWG | |
| Parts | MCP-260-00131-0N | 1 | 1U I/O Shield for X11SCL-LN4F with EMI Gasket | |
| Air Shroud | MCP-310-19007-0N | 1 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | |
| Manual | MNL-2109-QRG | 1 | 5019C-M/MR Quick Reference Guide | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors | |
| * Power Supply | PWS-407P-1R | 2 | AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH | |
| * Power Distributor | PDB-PT813M-2424 | 1 | Power Distributor With 24pin for SC813M | |
| * Cable 5 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG | |
| * Cable 6 | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH | |
| * Peripheral Drive 1 | CSE-PT93L-B | 1 | Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS | |
| * FAN 1 | FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| * Front Panel | FPB-FP813-D | 1 | Front control board dual color for SC815,SC813M (C) | |
| * Drive Tray(s) | MCP-220-00075-0B | 4 | Black gen 5.5 hot-swap 3.5"; HDD tray | |
| * Rear Window | MCP-240-00086-0N | 1 | STD rear window for SC113 redundant PWS | |
| * Power Supply | MCP-250-00016-0V | 1 | Redundant Silver plastic PDB cover for SC813M,113M | |
| * Parts | MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF | |
| * Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6\" to 33.05\" | |
| * Rail Set | MCP-290-00108-0N | 1set | Inner rail, front, short, quick-release type | |
| * Rail Set | MCP-290-00110-0N | 1set | Inner rail, extension (quick) for 1U 17.2 | |
| * Fan Holder | MCP-320-00031-0B | 1 | Fan tray for six 40x28 fans(SC813M/113M) | |
| * Parts | MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
