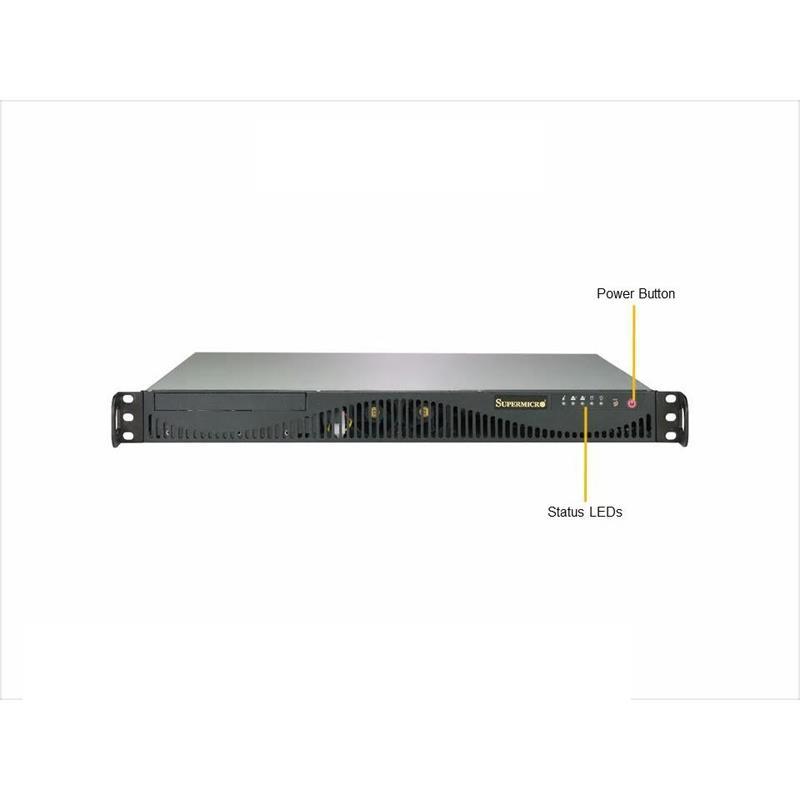

Supermicro SYS-5019C-M4L 1U Barebone Single Intel Processor

• Entry level, Cost effective
• Compact, less than 15" depth

Barebone 1U Single Xeon E-2200 or 8th Gen Core i3 processors, up to 128GB in 4 UDIMM slots, Intel C242 chipset, 4x GbE LAN ports. 1x PCI-E, 1x M.2. 2x 3.5in or 3x 2.5in drive bays. 350W Power Supply (MBD-X11SCL-LN4F + CSE-512F-350B1)

This product is no longer available.

1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C242 chipset
3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
4. 1 PCI-E 3.0 x16 slot
5. 1 Fixed 3.5" drive support (default); up to 2 Fixed 3.5" drives or 3 Fixed 2.5" drives (opt.)
6. M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
7. 4 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 1 COM (header), 1 TPM
10. 350W Multi-output power supply, Platinum Level Certified

Extra Specifications for Supermicro SYS-5019C-M4L 1U Barebone Single Intel Processor

Motherboard
Motherboard	Super X11SCL-LN4F
Processor
CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95W
	Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores	8 cores, 16 threads
Note	BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series
System Memory
Memory Capacity	4 DIMM slots
	Up to 128GB Unbuffered ECC UDIMM
	Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB
On-Board Devices
Chipset	Intel® C242 chipset
SATA	RAID 0, 1, 5, 10 support
	SATA3 (6Gbps) via Intel C242 controller
IPMI	ASPEED AST2500
Network Controllers	Quad LAN with Intel® I210-AT
Video	ASPEED AST2500 BMC
Input / Output
SATA	6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN	4 RJ45 Gigabit Ethernet LAN ports
	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear)
	2 USB 3.1 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
TPM	1 TPM 2.0 Header
System BIOS
BIOS Type	UEFI 256Mb
BIOS Features	SMBIOS 2.7
	USB Keyboard support
	ACPI 6.0
	Plug and Play (PnP)
	RTC (Real Time Clock) Wakeup
	PCI 3.0
	UEFI 2.7
Management
Software	Watch Dog
	NMI
	SuperDoctor® 5
	Intel® Node Manager
	IPMI 2.0
	SSM , SPM , SUM
Chassis
Form Factor	1U Rackmount
Model	CSE-512F-350B1
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	14.5" (368mm)
Package	6.3" (H) x 22" (W) x 20" (D)
Weight	Gross Weight: 17 lbs (7.71 kg)
	Net Weight: 11 lbs (4.99 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button
	System Reset button
LEDs	Power LED
	System Information LED
	Network activity LEDs
	Hard drive activity LED
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 slot
M.2	M.2 Key: M-Key
	M.2 Form Factor: 2280/22110
	M.2 Interface: 1 PCI-E 3.0 x4
Drive Bays
Internal	2x 3.5" or 3x 2.5" drive bays with optional converter kits
System Cooling
Fans	2x 4cm counter-rotating PWM fan
Power Supply
Power Supply	350W AC power supply w/ PFC
AC Voltage	100-240 V, 50-60 Hz, 5.0-2.5 Amp
+5V	Max.: 15 Amp
	Min.: 0.2 Amp
+5V standby	Max.: 3 Amp
	Min.: 0 Amp
+12V	Max.: 29 Amp
	Min.: 0.5 Amp
-12V	Max.: 0.2 Amp
	Min.: 0 Amp
+3.3V	Max.: 12 Amp
	Min.: 0.2 Amp
Certification	Platinum Level Certified
PC Health Monitoring
CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Product SKUs
Product SKUs	SuperServer 5019C-M4L (Black)

Name	Part Number	Qty.	Description
	Motherboard / Chassis	MBD-X11SCL-LN4F	1	Super X11SCL-LN4F Motherboard
	Motherboard / Chassis	CSE-512F-350B1	1	1U Chassis
	Parts	MCP-260-00131-0N	1	1U I/O Shield for X11SCL-LN4F with EMI Gasket
Manual	MNL-2153-QRG	1	5019C-M4L Quick Reference Guide
	Riser Card	RSC-RR1U-E16	1	RSC-RR1U-E16 with PIC-E x16 output
	Heatsink / Retention	SNK-P0049P	1	1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
	* Power Supply	PWS-350-1H	1	1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
	* Cable 1	CBL-0156L	1	CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
* Cable 2	CBL-0260L	1	US power cord 18AWG 6ft, PBF (default for low watt)
* Cable 3	CBL-0261L	1	SATA,INT,FLAT,ST-RA,40CM,26AWG
* Cable 4	CBL-0262L	1	PWEX,SATA,1X4M/P5.08 TO 1x4(RA)+1xSATA(RA)+1xFPD,18/22AWG
	* FAN 1	FAN-0087L4	2	40x56,4 Pin PWM Fan
* Parts	MCP-260-00024-0N	1	1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
	* Parts	MCP-260-00078-0N	1	1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
	* Front Panel	MCP-280-51201-0N	1	Front control board (FP512) for SC512 (surface-mounted LED)
	* Parts	MCP-290-00005-01	2	Black chassis handle for SC512F-520
	* Peripheral Drive 1	MCP-290-00006-01	1	Black DVD dummy cover for SC512, RoHS
* Fan Holder	MCP-320-00003-01	1	Fan holder of two 40x40x56mm fans for SC512F-280

Note:

• Parts with * are inside the chassis

• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Name	Part Number	Price	Add to Cart	Qty.	Description
	DVD-ROM / DVD-RW	DVM-TEAC-DVD-SBT5	$ 84.50		1	TEAC slim DVD-ROM SATA drive
	DVD-ROM / DVD-RW	DVM-PLDS-DVDRW-SBT5	$ 51.50		1	PHILPS slim DVD-RW SATA drive
	DVD-ROM Accessory	MCP-220-51202-0N	$ 26.50		1	Slim SATA DVD mounting kit
	Internal 2.5" HDD Tray	MCP-220-00044-0N	$ 18.00		0	Dual 2.5" fixed HDD bracket
	Internal 2.5" HDD Tray	MCP-220-00051-0N	$ 19.50		0	Single 2.5" fixed HDD bracket
	Cable for internal HDD	CBL-0484L	$ 17.00		0	55cm 30AWG SATA straight to straigh cable
Cable for internal HDD	CBl-0082L			0	Y split, big 4 pin to two RA SATA power extension 15cm
	Rail Kit	MCP-290-00004-03	$ 59.50		1	Chassis inner and outer rail set (25.6" ~ 33.05")
	Rail Kit	MCP-290-00056-0N	$ 69.50		1	Quick-release outer rail for square hole short-depth rack (19" ~ 26.4")
Network Card(s)	AOC-SGP-i2			0	Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Network Card(s)	AOC-SGP-i4			0	Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Network Card(s)	AOC-STGN-i2S			0	Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Network Card(s)	AOC-STGF-i2S			0	Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
	Network Card(s)	AOC-STG-B4S	$ 408.00		0	Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Network Card(s)	AOC-STGS-i2T			0	Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
	TPM security module	AOM-TPM-9670V	$ 56.50		1	TPM 2.0, vertical form factor
	TPM security module	AOM-TPM-9671V	$ 56.50		1	TPM 1.2, vertical form factor
Global Services & Support	OS4HR3/2/1			0	3/2/1-year onsite 24x7x4 service
Global Services & Support	OSNBD3/2/1			0	3/2/1-year onsite NBD service
Software	SFT-OOB-LIC •			1	OOB Management Package (per node license)
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
