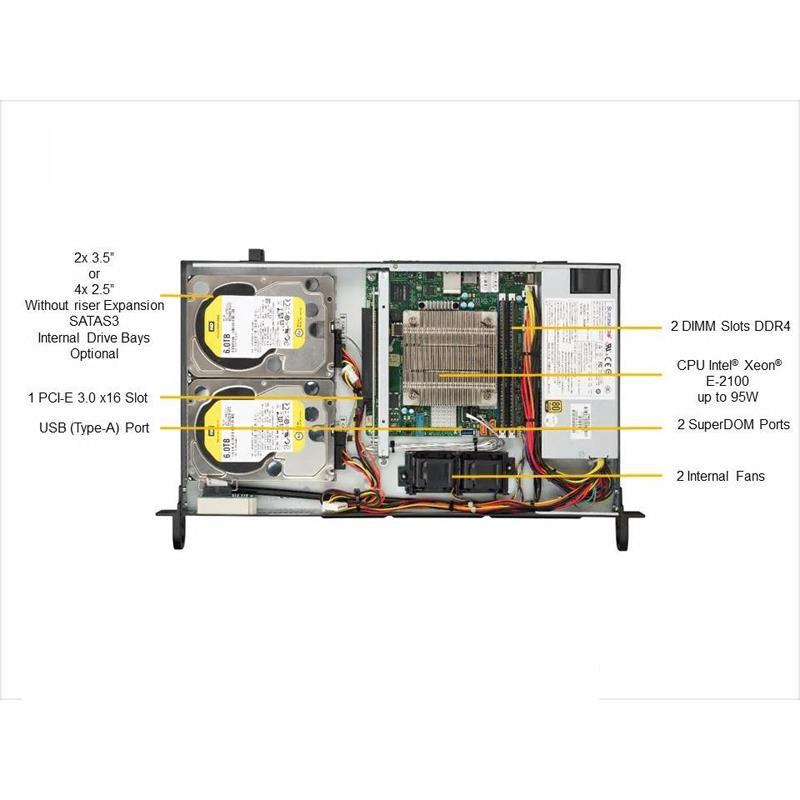

Supermicro SYS-5019C-L 1U Barebone Single Intel Processor
• Appliance Server
• Front-end, Web Hosting
• Edge Computing
Barebone 1U Single Xeon E-2200 or 8th Gen Core i3 processors, up to 64GB memory in 2 UDIMM slots. Intel C242 chipset, 2x Fixed 3.5in or 4 fixed 2.5in drive bays, 1x M.2 interface, Dual 1GbE LAN ports. 200W Low Noise AC-DC PWS (MBD-X11SCL-iF + CSE-504-203B)
This product is no longer available.
1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
2. Intel® C242 chipset
3. Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
4. 1 PCI-E 3.0 x16 slot
5. 1 Fixed 3.5" drive support (default); up to 2 Fixed 3.5" drives or 4 Fixed 2.5" drives (opt.)
6. M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key
7. 2 GbE LAN ports, 1 dedicated IPMI LAN
8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
9. 1 VGA, 1 COM, 1 TPM
10. 200W Multi-output power supply, Gold Level Certified
Extra Specifications for Supermicro SYS-5019C-L 1U Barebone Single Intel Processor
| Motherboard | ||
| Motherboard | Super X11SCL-iF | |
| Processor | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors | ||
| Cores | 6 cores, 12 threads | |
| Note | BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series | |
| System Memory | ||
| Memory Capacity | Up to DDR4-2666MHz | |
| 2 DIMM slots | ||
| Up to 64GB Unbuffered ECC UDIMM | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM | |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB | |
| On-Board Devices | ||
| Chipset | Intel® C242 chipset | |
| SATA | RAID 0, 1, 5, 10 support | |
| SATA3 (6Gbps) via Intel C242 controller | ||
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® I210-AT | |
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 2 USB 2.0 ports (rear) | |
| 2 USB 3.1 ports (rear) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 COM port (rear) | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| BIOS Features | SMBIOS 2.7 | |
| USB Keyboard support | ||
| ACPI 6.0 | ||
| Plug and Play (PnP) | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| UEFI 2.7 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-504-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Package | 6.1" (H) x 25.8" (W) x 18.3" (D) | |
| Weight | Gross Weight: 12 lbs (5.44 kg) | |
| Net Weight: 8 lbs (3.63 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 slot | |
| M.2 | M.2 Key: M-Key | |
| M.2 Interface: 1 SATA/PCI-E 3.0 x4 | ||
| M.2 Form Factor: 2280 | ||
| Drive Bays | ||
| Internal | 2 Fixed 3.5" drive bay or 4 Fixed 2.5" drive bays | |
| System Cooling | ||
| Fans | 2x 4cm PWM fan | |
| Power Supply | ||
| Power Supply | 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max | |
| +5V | 8.0 Amp (max.) | |
| +5V standby | 2.0 Amp (max.) | |
| +12V | 16 Amp (max.) | |
| -12V | 0.5 Amp (max.) | |
| +3.3V | 8.0 Amp (max.) | |
| Certification | Gold Certified | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. | |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 5019C-L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SCL-iF | 1 | Super X11SCL-iF Motherboard | |
| Motherboard / Chassis | CSE-504-203B | 1 | 1U Chassis | |
| Cable 1 | CBL-0484L | 1 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| FAN 1 | FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| Fan Holder | MCP-320-81302-0B | 1 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) | |
| Manual | MNL-2152-QRG | 1 | 5019C-L/FL Quick Reference Guide | |
| Riser Card | RSC-RR1U-E16 | 1 | RSC-RR1U-E16 with PIC-E x16 output | |
| Heatsink / Retention | SNK-P0049P | 1 | 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Internal 2.5" HDD Tray | MCP-220-00044-0N | $ 18.00 | 0 | Dual 2.5" fixed HDD bracket | ||
| Internal 2.5" HDD Tray | MCP-220-00051-0N | $ 19.50 | 0 | Single 2.5" fixed HDD bracket | ||
| Cable for internal HDD | CBL-0484L | $ 17.00 | 0 | 55cm 30AWG SATA straight to straigh cable | ||
| Cable for internal HDD | CBL-0211L | $ 20.00 | 0 | Big 4 pin to 3x SATA power cable | ||
| Cable for internal HDD | CBl-0082L | 0 | Y split, big 4 pin to two RA SATA power extension 15cm | |||
| Fan for AOC | FAN-0154L4 | $ 26.00 | 1 | 40x40x28mm 22.5K RPM, SC813MF Middle Cooling Fan | ||
| Fan for AOC | MCP-320-81302-0B | $ 20.50 | 1 | Fan tray for one 40x28mm fan | ||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | |||
| Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
| Network Card(s) | AOC-STG-B4S | $ 408.00 | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | ||
| Network Card(s) | AOC-STGS-i2T | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | |||
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | TPM 2.0, vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | TPM 1.2, vertical form factor | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
