- Supermicro SYS-6029TR-HTR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
Supermicro SYS-6029TR-HTR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
• HPC
• Data Center
• Enterprise Server
• Finanical Analysis
• Mission-critical applications

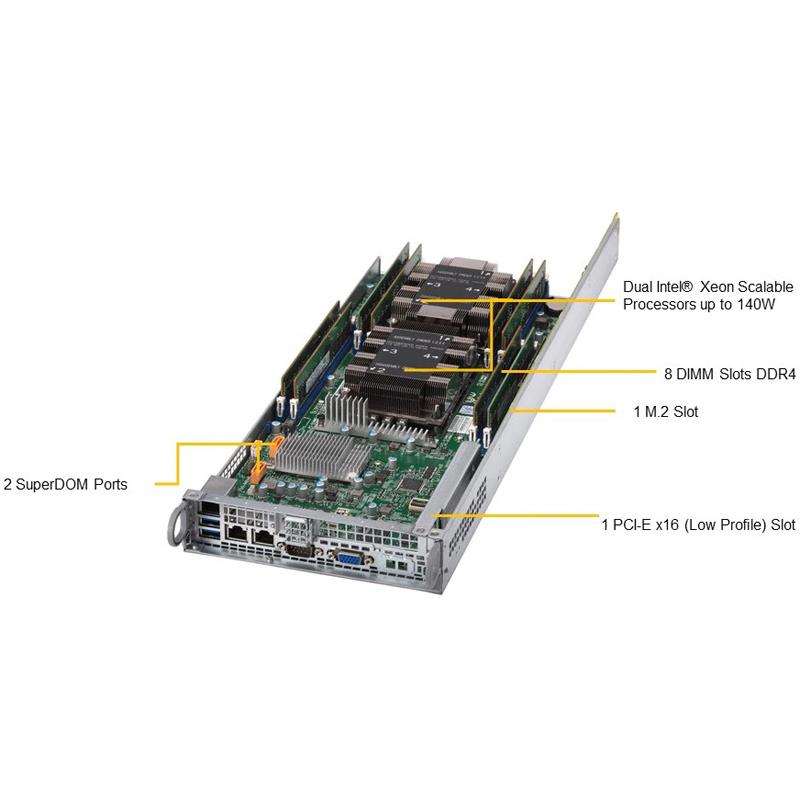

Barebone 2U SuperServer With Four Nodes, Each Node Supports: Dual Socket P (LGA 3647) Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors, Up to 2TB DDR4 2933MHz memory, Intel C621 chipset, 2x 1GbE LAN port. 3x Hot-swap HDD bays, 2x SATA DOM + 1 SATA/NVMe M.2. 1600W Redundant Power Supply (CSE-827HQ-R1K68BP3 + X11DPT-L)
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
3. 1 PCI-E 3.0 x16 (LP) slot
4. Dedicated IPMI 2.0 LAN

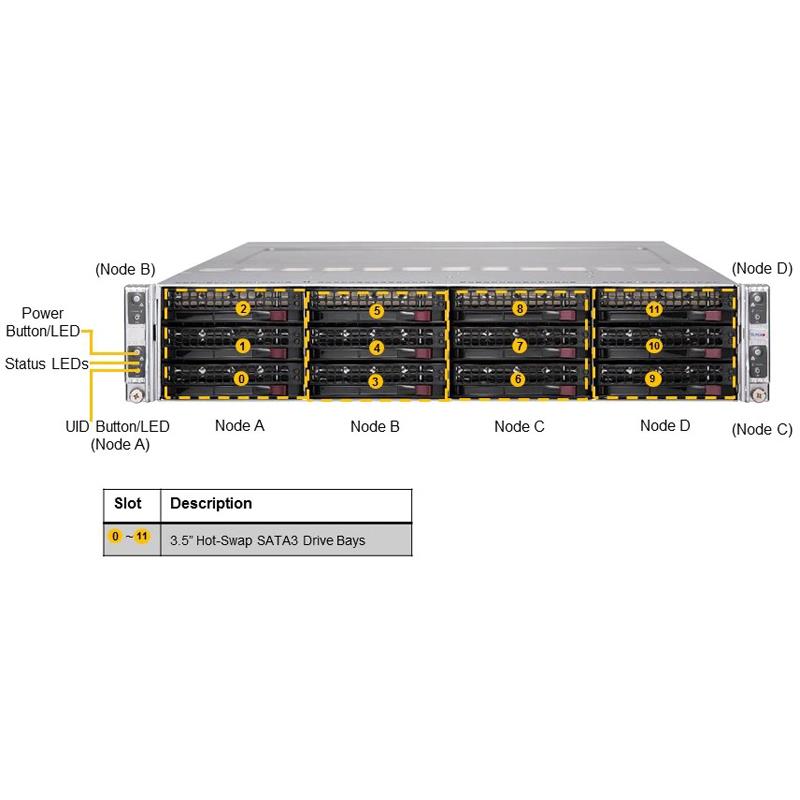

5. 3 Hot-swap 3.5" SATA3 drive bays
6. 2 SATA DOM + 1 SATA/NVMe M.2 (22110/2280)
7. Up to 1600W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-6029TR-HTR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard (Four per System) | ||

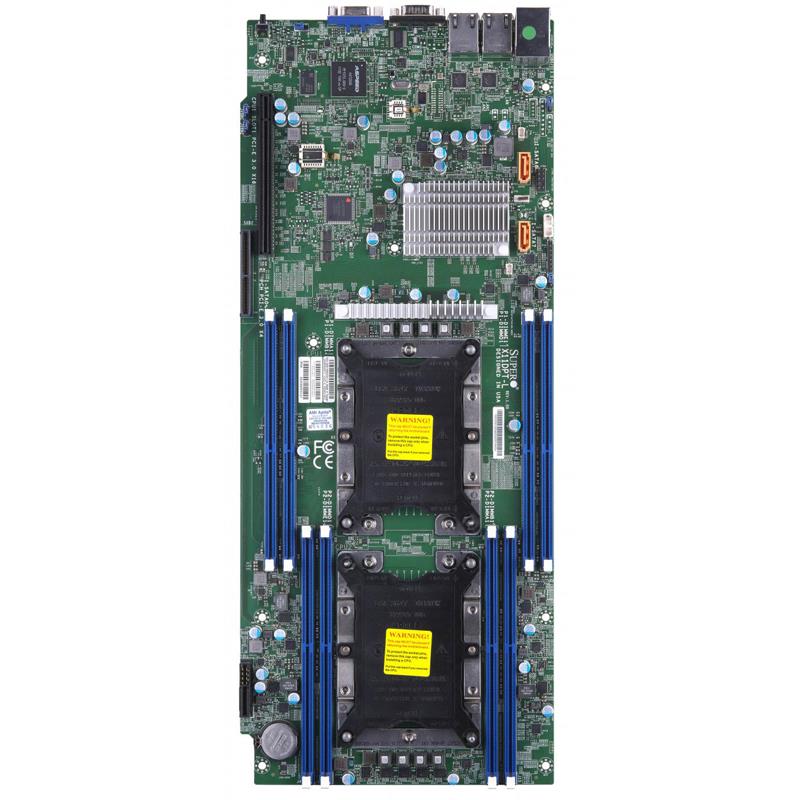

| Motherboard (Four per System) | Super X11DPT-L | |
| System Memory (per Node) | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5 support | |
| Network Controllers | Intel® C621 chipset | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| SATA | 3 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 Gigabit Ethernet LAN ports | ||
| USB | 2 USB 3.0 ports total (rear) | |
| VGA | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 rear) | |
| Others | TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM with UEFI | |
| Management | ||
| Software | NMI | |
| Watchdog | ||
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827HQ-R1K68BP3 | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 28.5" (724mm) | |
| Weight | Gross Weight: 73.5 lbs (33.34kg) | |
| Net Weight: 52.1 lbs (23.63kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1 PCI-E 3.0 x16 Low-profile slot | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 3 Hot-swap 3.5" SATA3 HDD trays | |
| Others | 2 SATA DOM | |
| 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL * M.2 and SuperDOM are for OS boot | ||
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans with optimal fan speed controlled | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor (per Node) | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-140W | ||
| Cores | Up to 22 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| * Processors ending N or S (such as 6230N, 5220S) are not supported | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6029TR-HTR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPT-L | 4 | Super X11DPT-L Motherboard | |
| Motherboard / Chassis | CSE-827HQ-R1K68BP3 | 1 | 2U Chassis | |
| Backplane | BPN-ADP-6SATA3M2-1UL | 4 | 6 x SATA3 with 6Gb/s,onboard 1 x M.2 . 22x80 mm and 22x110 mm,HF,RoHS | |
| Backplane | BPN-SAS2-827HQ2 | 1 | 2U 12-Port 4-Node 6Gbps Backplane Supports 3x3.5 | |
| Cable 1 | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Air Shroud | MCP-310-82722-0B | 4 | SC827HQ mylar air shroud for on MBD-X11DPT-L-P | |
| Manual | MNL-2163-QRG | 1 | 6029TR-HTR Quick Reference Guide | |
| Riser Card | RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0067PS | 4 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0067PSM | 4 | 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Power Supply | PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF | |
| FAN 1 | FAN-0162L4 | 4 | 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module (optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor | ||
| TPM security module (optional, not included) | AOM-TPM-9671V | $ 56.50 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | ||
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap gen 4 3.5" to 2.5" HDD tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
