- Supermicro SYS-6029BT-DNC0R Twin 2U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation

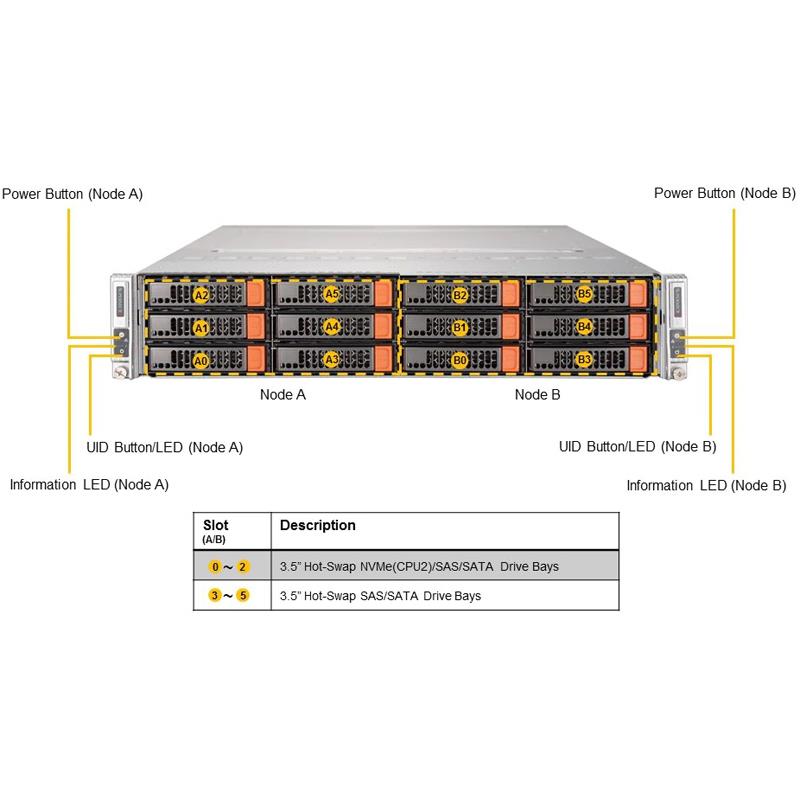

Supermicro SYS-6029BT-DNC0R Twin 2U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
• Compute Intensive Application
• HPC, Data Center, Enterprise
• Server
• Hyperscale / Hyperconverged
Barebone 2U BigTwin. Two Nodes, Each Node Supports: Dual Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors. Up to 6TB DDR4 memory in 24 DIMM slots. M.2/SATA DOM. 2200W Redundant Power Supply (CSE-827BHD+-R2K22BP+ X11DPT-B)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16, 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays, 2 internal M.2 NVMe/SATA slots
5. SAS3 support via Broadcom 3008; IT mode
6. IPMI 2.0 + KVM with dedicated LAN
7. Video via Aspeed AST2500 BMC
8. 4 Heavy duty 8cm PWM fans with air shroud
9. 2200W Redundant Power Supplies Titanium Level (96%)
Extra Specifications for Supermicro SYS-6029BT-DNC0R Twin 2U Barebone Two Hot-pluggable Nodes Dual Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super X11DPT-B | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3008; IT mode | |
| Network | Must bundle with at least one SIOM network card | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| DOM | 1 Super DOM (Disk on Module) port | |
| Others | M.2 and SATA DOM for boot drive only | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827BHD+-R2K22BP | |
| Dimensions and Weight | ||
| Width | 17.6" (447mm) | |
| Height | 3.47" (88mm) | |
| Depth | 30.11" (765mm) | |
| Package | 9.76" (H) x 24.65" (W) x 45.28" (D) | |
| Weight | Gross Weight: 114.66 lbs (52.01 kg) | |
| Net Weight: 87.13 lbs (39.52 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1 SIOM card support (must bundle with network card) | |
| 2 PCI-E 3.0 x8 slots | ||
| 1 PCI-E 3.0 x16 slot | ||
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. | |
| M.2 | 2 Internal M.2 NVMe/SATA slots | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans with air shroud | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090/2200W | |
| Dimension (W x H x L) | 45 x 40 x 480 mm | |
| Input | 1200W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2090W: 230-240Vac / 50-60Hz | ||
| 2090W: 180-220Vac (for UL/cUL only) | ||
| 2200W: 220-240Vac (for UL/cUL only) | ||
| 2090W: 230-240Vdc (for CCC only) | ||
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP 70-205W * | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization. | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6029BT-DNC0R (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPT-B | 2 | Super X11DPT-B Motherboard | |
| Motherboard / Chassis | CSE-827BHD+-R2K22BP | 1 | 2U Chassis | |
| Backplane | BPN-ADP-6S3008N3-2UB | 2 | Big Twin 2U Hybrid ADPHDD: 2x SAS3 port + 3 NVMe or SAS3 ports (SAS3008 controller)M.2: 2x SATA or PCIe M.2 ports,HF,RoHS | |
| Backplane | BPN-SAS3-827BHQ-N3 | 1 | 2U 12-Port 4-Node Hybrid Backplane Supports 3x3.5 | |
| Cable 1 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Drive Tray(s) | MCP-220-00133-0B-BULK | 12 | Black gen 8 hot-swap 3.5 | |
| Parts | MCP-240-82718-0N | 1 | SC827B BigTwin type I (Impact) BPN retention bkt assy | |
| Air Shroud | MCP-310-21725-0B | 2 | Bigtwin 2U2N plastic air shroud for Cascade lake MB | |
| Manual | MNL-2091-QRG | 1 | 6029BT-DNC0R Quick Reference Guide | |
| Riser Card | RSC-P2-88 | 2 | 2U LHS TwinPro Riser card with two standard PCI-E x8 slots,H | |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0069PS | 2 | 1.5U Proprietary 50-mm Tall Front Passive CPU Heat Sink for X11 Purley Platform 2U Node Twin Series Servers | |
| Fan | FAN-0162L4 | 4 | 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan | |
| Power Supply | PWS-2K22A-1R | 2 | 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48 |
