- Supermicro SYS-5039MD18-H8TNR MicroCloud Barebone Single CPU, 8-Node
Supermicro SYS-5039MD18-H8TNR MicroCloud Barebone Single CPU, 8-Node
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking, CDN

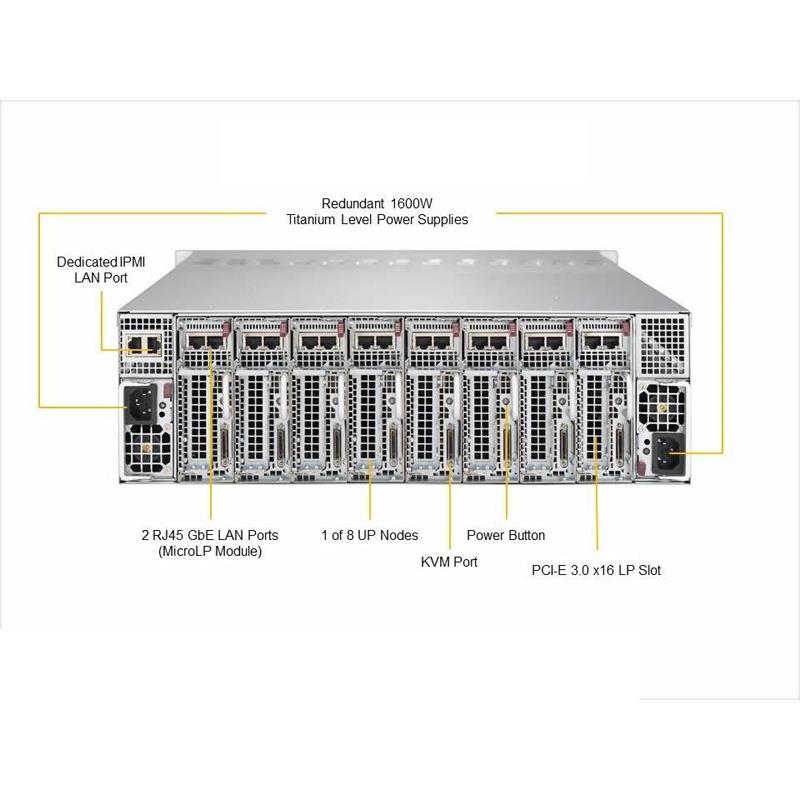

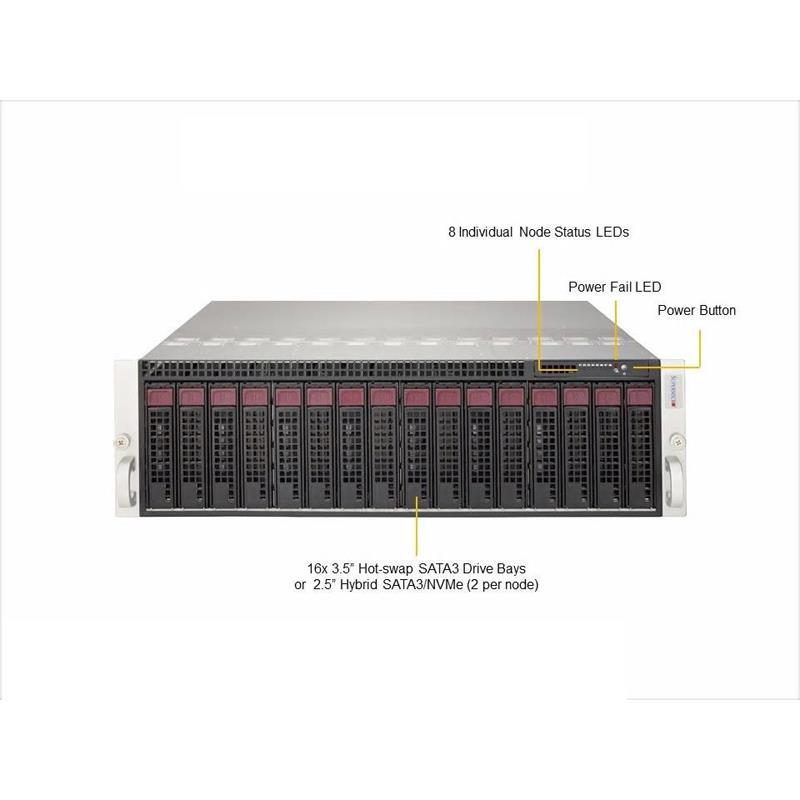

Barebone 3U Rackmount SuperServer. Per Node: Single Intel Xeon D-2191I CPU. Up to 512GB DDR4 memory in 4 DIMM slots. Dual 1GbE LAN Ports, 1x PCI-E, 1x Micro-LP, 2x M.2. 1600W Redundant Power Supply (CSE-938NH-R1K68BP + X11SDD-18C-F)
This product is no longer available.

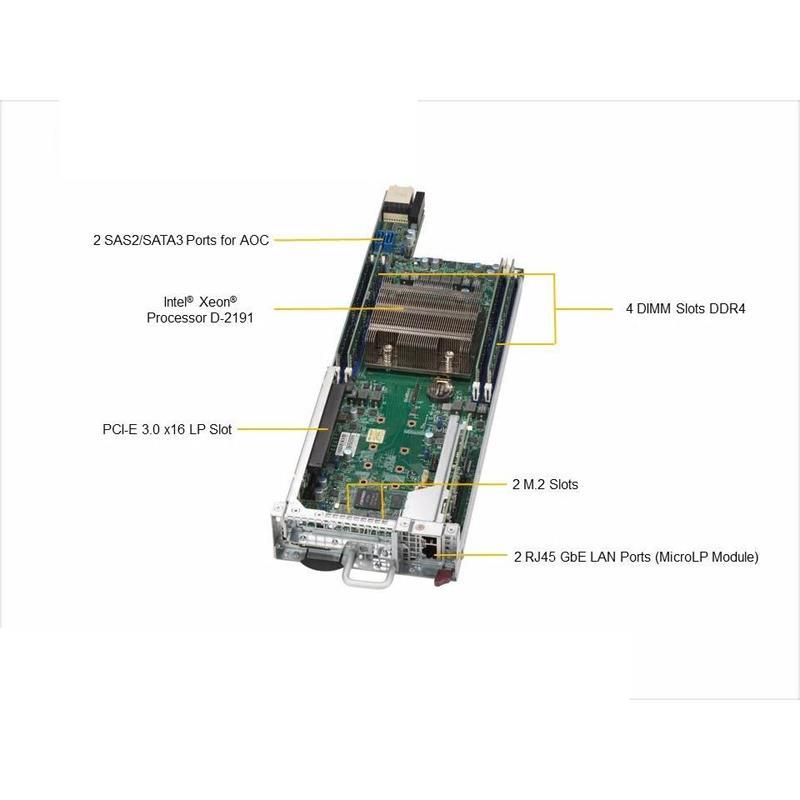

1. Intel® Xeon® Processor D-2191I, 18-Cores, 36 Threads
2. 2x 3.5" SATA3 by default; 2x 2.5" hybrid SATA3/NVMe w/ Optional kits
3. Up to 512GB ECC LRDIMM, Up to 256GB ECC RDIMM, up to DDR4-2400MHz; in 4 DIMM slots
4. 2 GbE LAN ports via Intel i350
5. 1 PCI-E 3.0 x16 (low-profile), 1 Micro-LP, and 2 M.2
6. 2 USB 2.0, 1 VGA, 1 COM port, (with KVM dongle)
7. 4 heavy duty hot-swap 8cm fans with optimal cooling zone (per system)
8. 1600W Redundant power supplies Titanium Level Certified (per system)
Extra Specifications for Supermicro SYS-5039MD18-H8TNR MicroCloud Barebone Single CPU, 8-Node
| Processor/Cache (per Node) | ||
| CPU | Socket FCBGA1667 | |
| Intel® Xeon® Processor D-2191I | ||
| CPU TDP support 86W | ||
| Cores / Cache | 18-Cores, 36 Threads | |
| System Memory (per node) | ||
| Memory Capacity | 4x 288-pin DDR4 DIMM slots | |
| Up to 512 GB ECC LRDIMM | ||
| Up to 256 GB ECC RDIMM | ||
| Memory Type | 2400/2133MHz ECC DDR4 LRDIMM and RDIMM | |
| DIMM Sizes | 32GB, 16GB, 8GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Network Devices (per node) | ||
| Micro-LP NIC | Dual RJ-45 connectors | |
| MicroLP Adapter Matrix (Networking options) | ||
| Intel® i350 GbE LAN controller | ||
| On-Board Devices (per node) | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) via SoC | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2500 BMC | ||
| Graphics | ASPEED AST2500 Graphics (BMC with Graphic controller) | |
| Input / Output (per node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| KVM | 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Rear Window (each node) | ||
| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-938NH-R1K68BP | |
| Dimensions and Weight | ||
| Height | 5.2" (132 mm) | |
| Width | 15.26" (387 mm) | |
| Depth | 23" (585 mm) | |
| Package | 11.65" (H) x 26.26" (W) x 34" (D) | |
| Weight | Net Weight: 62.2 lbs (28.21 kg) | |
| Gross Weight: 88 lbs (39.92 kg) | ||
| Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Node status LED | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1 PCI-E 3.0 x16 (Low-profile) slot | |
| 1 Micro-LP PCI-E 3.0 x8 slot | ||
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 | |
| M.2 Form Factor: 2280/22110 | ||
| M.2 Key: M-Key | ||
| Drive Bays (per node) | ||
| Internal | Enterprise SATA HDD only recommended | |
| 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total | ||
| System Cooling | ||
| Fans | 4 Hot-swap 8cm cooling fans fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039MD18-H8TNR (Black) | |
| Motherboard | ||
| Motherboard | Super X11SDD-18C-F | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDD-18C-F | 8 | Super X11SDD-18C-F Motherboard | |
| Motherboard / Chassis | CSE-938NH-R1K68BP | 1 | 3U Chassis | |
| Add-on Card / Module | AOC-CGP-I2-P | 8 | AOC-CGP-I2-O-P | |
| Add-on Card / Module | AOM-BPN-938NH-P | 1 | AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHS | |
| Add-on Card / Module | AOM-LAN-MC8-P | 1 | AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHS | |
| Add-on Card / Module | AOM-PDB-PT938-LSG-P | 1 | AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,HF,RoHS | |
| Add-on Card / Module | AOM-PDB-PT938-RSG-P | 1 | AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,HF,RoHS | |
| Cable 1 | CBL-0218L | 1 | USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG | |
| Cable 2 | CBL-0355L | 2 | ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG | |
| Cable 3 | CBL-0458L | 1 | 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG | |
| Cable 4 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| Cable 5 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| FAN 1 | FAN-0194L4 | 4 | 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie | |
| Drive Tray(s) | MCP-220-00094-0B | 16 | Black gen 6.5 hot-swap 3.5 inch HDD Tray | |
| Air Shroud | MCP-310-93805-0B | 16 | Mylar air shroud for 2-DIMMs (quick install on DIMM latch) | |
| Riser Card | RSC-RR1U-E16 | 8 | RSC-RR1U-E16 with PIC-E x16 output | |
| Rail set | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W | |
| Power Supply | PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller,Vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller,Vertical form factor | ||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Cable | CBL-SAST-0610 | $ 26.00 | 0 | For AOC-S3008L-L8i/AOC-S3108L-H8IR | ||
| Storage Controller Card(s) | AOC-S3008L-L8iAOC-S3108L-H8IRAOC-S3108L-H8IR-16DD | 0 | Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60 | |||
| Network Card(s) | AOC-CTGS-i2TAOC-CTG-i1SAOC-CTG-i2SAOC-S40G-i2QAOC-SGP-i2AOC-SGP-i4AOC-STG-i2AOC-STG-i2TAOC-STGN-i1SAOC-STGN-i2SAOC-S100G-m2CAOC-SHFI-I1C | 0 | MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENMicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENStandard LP 2-port 40GbE controller, Intel Fortville XL710Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EBStandard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599ENStandard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ESStandard LP 2-port 100GbE with 2 QSFP28, Mellanox CX-4 ENStandard LP 1-port Omni Path controller, Intel 100HFA016LS | |||
| Drive Tray(s) | MCP-220-93801-0B | $ 31.00 | 0 | Black gen 6 hot-swap 3.5-to-2.5 HDD tray | ||
| Drive Tray(s) | MCP-220-00158-0B | $ 33.50 | 0 | Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
