- Supermicro SYS-9029GP-TNVRT 10U Barebone Dual Intel Processor

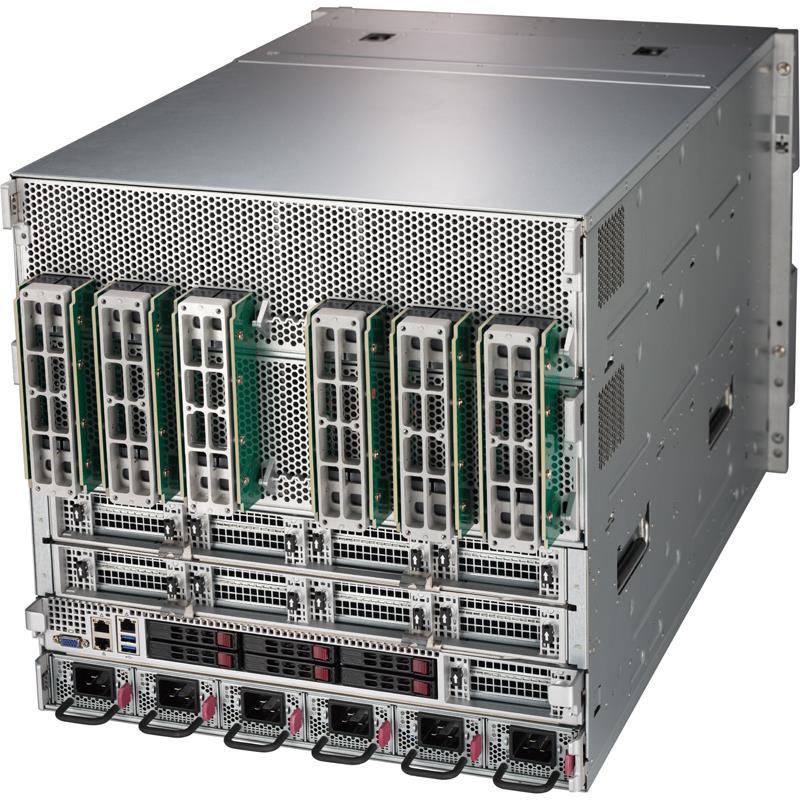

Supermicro SYS-9029GP-TNVRT 10U Barebone Dual Intel Processor
• AI/ML, Deep Learning Training and Inference
• Big Data Analytics
• High-performance Computing (HPC)
• Research Laboratory/National Laboratory
• Autonomous Vehicle Technology
Barebone 10U GPU SuperServer. Support Dual Xeon Scalable CPU. Up to 6TB memory in 24 DIMM slots. Onboard Intel C621 chipset, 2x 10GBase-T LAN ports, 16x 2.5in NVMe and 6x SATA3 (HDD bays Hot-swap), 2x M.2. 3000W Redundant Power (X11DPG-HGX2 + CSE 1018G-R12KP)
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 512GB memory, 1 HDD, 16 GPUs installed). Due to complexity, OSNBD3 is highly recommended.
1. Supports 16 NVIDIA® V100 SXM3 350W GPUs with NVISwitch and NVLink
2. Optimized for NVIDIA® GPUDirect™ RDMA
3. Dual Socket P (LGA 3647) support Intel® Xeon® Scalable processors 3 UPI up to 10.4GT/s
4.Up to 3TB 3DS ECC LRDIMM, up to DDR4-2933MHz; 24 DIMM slots
5. 16 PCI-E 3.0 x16 for RDMA via IB EDR; 2 PCI-E 3.0 x16 on board
6. Support 8 NVIDIA V100 with 300GB/s NVLINK
7. Dual 10GBase-T LAN with Intel® X540
8. 16 Hot-swap 2.5" NVMe drives, 6 Hot-swap 2.5" SATA3 drive bays
9. 6x 80mm Hot-swap PWM Fans, 8x 92mm Hot-swap Fans
10. 6x (5+1) 3000W Redundant Power Supplies; Titanium Level (96%+)
Extra Specifications for Supermicro SYS-9029GP-TNVRT 10U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super | |
| Processor | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 205W | ||
| Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| GPU | ||
| Supported GPUs | Compatible GPU list | |
| NVIDIA V100 | ||
| 16 SXM Socket Based | ||
| CPU-GPU Interconnect | PCI-E Gen 3 x16 Switch CPU-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 3TB 3DS ECC L/RDIMM, up to DDR4-2933MHz | ||
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Network Controllers | Dual Port 10GBase-T from Intel X540 Ethernet Controller | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 2 USB 3.0 ports (front) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| BIOS Features | Intel® Node Manager | |
| IPMI 2.0 | ||
| KVM with dedicated LAN | ||
| SSM , SPM , SUM | ||
| SuperDoctor® 5 | ||
| Watchdog | ||
| Chassis | ||
| Form Factor | 10U Rackmountable | |
| Model | CSE-1018G-R12KP | |
| Dimensions | ||
| Height | 17.2" (437mm) | |
| Width | 17.8" (452mm) | |
| Depth | 27.75" (705mm) | |
| Weight | Net Weight: 298 lbs (135 kg) | |
| Gross Weight: 385 lbs (175 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | 16 Hot-swap 2.5" NVMe drive bays * | |
| 6 Hot-swap 2.5" SATA3 drive bays | ||
| M.2 | Form Factors: 2280, 22110 | |
| Key: M-Key | ||
| M.2 Interface: 2 PCI-E 3.0 x4 | ||
| Note | * NVMe hot-swap feature doesn't work in Windows environment | |
| Expansion Slots | ||
| PCI-Express | 16 PCI-E 3.0 x16 for RDMA via IB EDR - supporting 16 V100 GPUs | |
| 2 PCI-E 3.0 x16 on motherboard | ||
| System Cooling | ||
| Fans | 6x 80mm Hot-swap PWM Fans | |
| 8x 92mm Hot-swap Fans | ||
| Power Supply | ||
| Power Supply | 6x 3000W Redundant Titanium Level Power Supplies with PMBus | |
| Total Output Power | 2883W with Input 200 - 207Vac | |
| 3000W with Input 208 - 240Vac | ||
| Dimension (W x H x L) | 68 x 40 x 430 mm | |
| Input | 50-60Hz | |
| +12V | Max: 53.4A & Min: 0.3A (200-207Vac) | |
| Max: 55.6A & Min: 0.3A (208-240Vac) | ||
| 12Vsb | Max: 3A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 10% to 85% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 9029GP-TNVRT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|

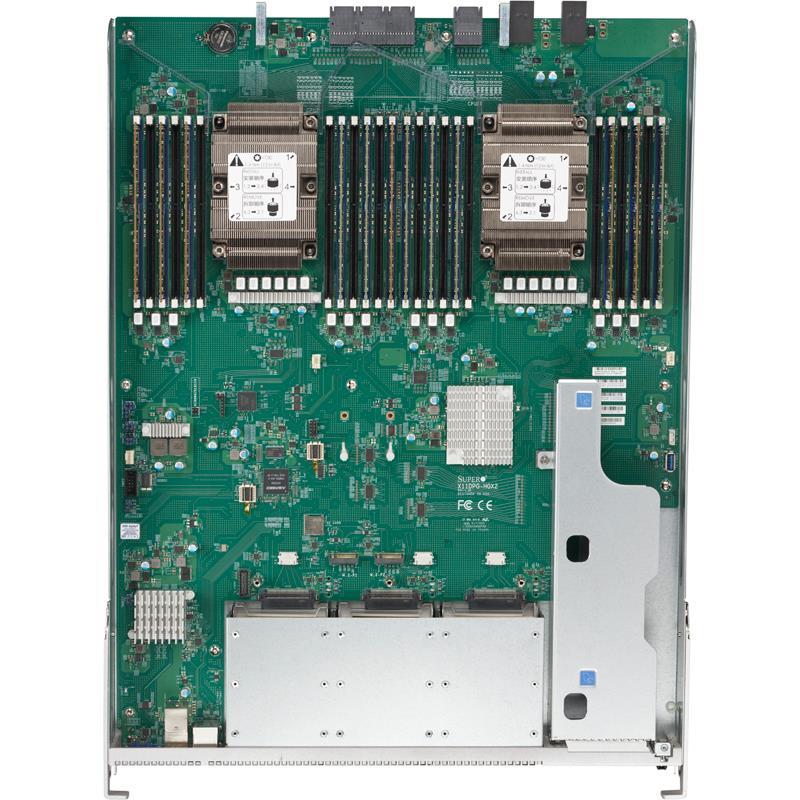

| Motherboard / Chassis | MBD-X11DPG-HGX2 | 1 | Super X11DPG-HGX2 Motherboard | |
| Motherboard / Chassis | MBD-X11DPG-HGX2-SW | 2 | HGX2 PCIe switch board | |
| Motherboard / Chassis | CSE-1018G-R12KP | 1 | CSE-1018G-R12KP Chassis | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |
| Add-on Card / Module | AOM-HGX2-NVL-P | 12 | HGX2 NVLINK board,HF,RoHS | |
| Add-on Card / Module | AOM-SBL-SAS3 | 1 | AOM-SBL-SAS3 | |
| Backplane | BPN-GPU-1018G | 1 | Midplane for 10U CSE-1018G HGX-2 project,RoHS | |
| Riser Card | RSC-G-66-HGX2 | 8 | 1U LHS Passive GPU RSC w/ 2 PCI-Ex16 slots HGX-2 sys,HF,Rohs | |
| Riser Card | RSC-G-A66 | 1 | 1U LHS Active GPU Riser card with two PCI-E x16 Slots,HF,RoH | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Heatsink / Retention | SNK-P0071VS | 2 | 1U Proprietary Passive CPU Heat Sink (124 mm Long) for SYS-2029BZ-HNR Series Servers (X11 2U4N 3UPI Big Twin) | |
| * Power Supply | PWS-3K01G-1R | 6 | AC-DC 3000W, Titanium efficiency output: 54Vdc/55.6A, 12Vsb/ | |
| * Backplane | BPN-PDB-1018G | 1 | 54V PDB for 10U CSE-1018G HGX-2 project, support 6x Delta 54Vdc/3KW PSU, RoHS | |
| * Cable 1 | CBL-0223L | 6 | BLADE PWS POWER CORD C19 to C20, PBF. 1.8m. 12AWG, 20A, 250V | |
| * FAN 1 | FAN-0196L4 | 8 | 92x92x76 mm, 13.3K-12.2K RPM Counter-rotating Fan for HGX2 P | |
| * FAN 2 | FAN-0197L4 | 6 | 80x80x80 mm, 12K-11.3K RPM Counter-rotating Fan for HGX2 Pro | |
| * Front Panel | FPB-FP1018G | 1 | Front control board 4.59x2.59 inches for SC1018G,RoHS | |
| * Drive Tray(s) | MCP-220-00169-0B | 6 | Black hot swap tool-less 2.5 | |
| * Drive Tray(s) | MCP-220-00170-0B | 16 | Black hot swap tool-less NVMe 2.5 | |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF | |
| * Parts | MCP-620-00022-0N | 6 | Blade Server Front Blade Light Pipe for MB |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| NVMe RAID 1 (Require Intel VROC Key) | AOC-SLG3-2M2 | $ 54.00 | 1 | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules | ||
| NVMe RAID 1 (Require Intel VROC Key) | Tested M.2 List | 2 | NVMe M.2 Module | |||
| Network Card(s) | AOC-MCX455A-ECAT-MLN | 0 | Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6 | |||
| Network Card(s) | AOC-MCX456A-ECAT-MLN | 0 | Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6 | |||
| Network Card(s) | AOC-MCX515A-CCAT | $ 918.00 | 0 | Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, HF, RoHSket, HF, RoHS | ||
| Network Card(s) | AOC-MCX516A-CCAT | $ 931.00 | 0 | Mellanox ConnectX-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | ||
| Network Card(s) | AOC-MCX555A-ECAT | $ 791.00 | 0 | Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | ||
| Network Card(s) | AOC-MCX556A-ECAT | $ 1,048.00 | 0 | Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS | ||
| TPM Security Module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable vertical TPM 2.0 provisioned for client,RoHS | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
