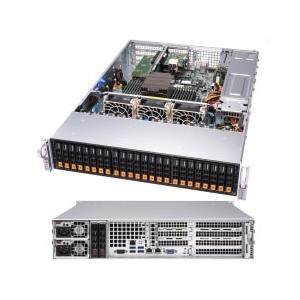

Supermicro AS-2113S-WN24RT 2U Barebone Single AMD Processor

• 24 hot-swap 2.5 U.2 NVMe drive bays
• 1200W Redundant Power Supplies Titanium Level
• Up to 2TB Registered DDR4-2666MHz in 16 DIMMs
• 2x 10GbBase-T LAN ports; 2x SATADOM connectors

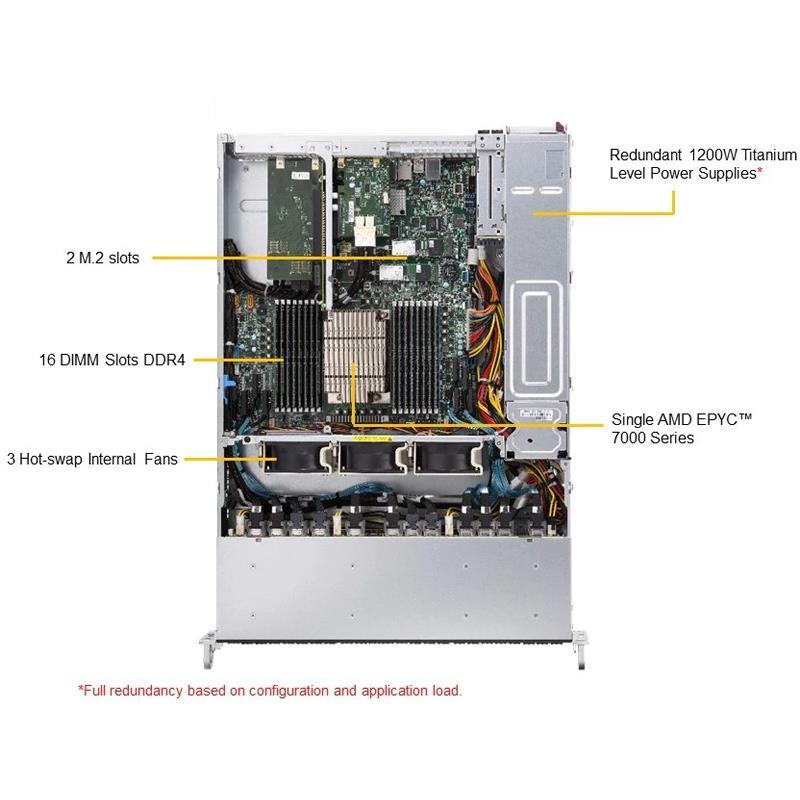

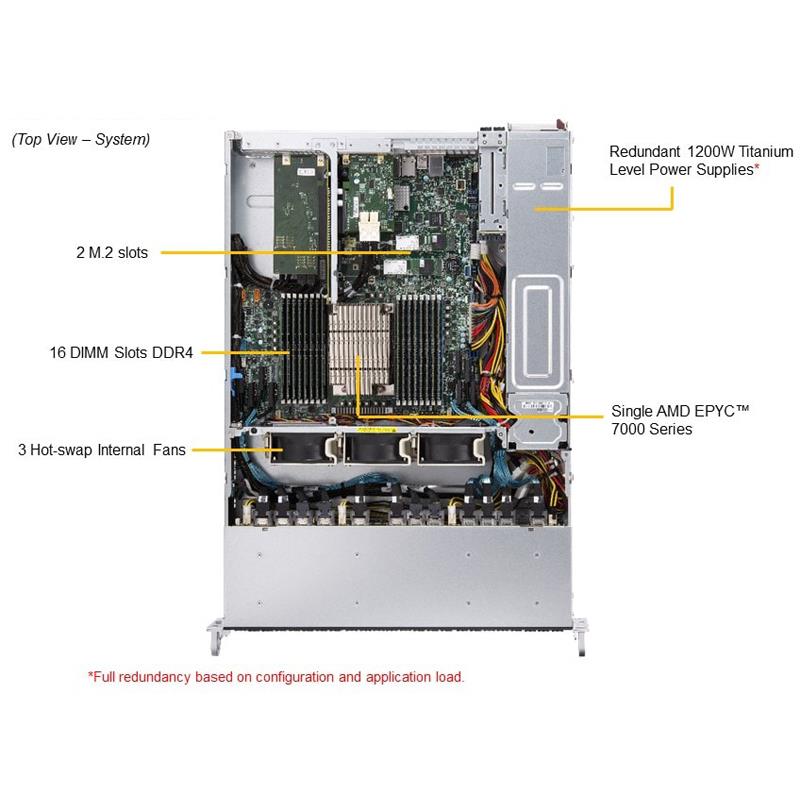

Barebone 2U A+ Server, support AMD Single EPYC 7000. Up to 2TB DDR4 memory in 16 DIMM slots. Onboard Broadcom Controller, 2x 10GbBase-T LAN ports. 24x hot-swap 2.5in U.2 NVMe drive bays. 1200W Redundant Power Supply (H11SSW-NT + CSE-216BTS-R1K23WBP)



    Option not available


    This combination does not exist.

    Add to Cart

    • 24 hot-swap 2.5 U.2 NVMe drive bays
    • Single AMD EPYC 7000-Series Processor
    • Integrated IPMI 2.0 + KVM with dedicated LAN
    • 2x 10GBase-T LAN ports via Broadcom BCM57416
    • 1200W Redundant Power Supplies Titanium Level (96%)
    • Up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
    • Expansion slots: 1 PCI-E 3.0 x16 (FH/HL) slot, M.2 Interface: PCI-E 3.0 x4, (NVMe based), M.2 Form Factor: 2280, 22110, M.2 Key: Onboard M-key, Number of M.2: Dual

    Extra Specifications for Supermicro AS-2113S-WN24RT 2U Barebone Single AMD Processor

    Main Specifications
    Built-in Devices H11SSW-NT
    Device Type A+ Server
    Dimensions (WxDxH) Height 3.5" (89mm) x Width 17.2" (437mm) x Depth 24.8" (630mm)
    Form Factor 2U - CSE-216BTS-R1K23WBP
    Weight Net Weight: 34 lbs (15.42 kg) - Gross Weight: 59 lbs (26.76 kg)
    Cache/Core Up to 32 Cores
    Compatible processor Single AMD EPYC 7000-series Processor
    Compatible Socket Socket SP3
    System Memory
    DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
    Error Detection Corrects single-bit errors
      Detects double-bit errors (using ECC memory)
    Memory Capacity 16 DIMM slots
      Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
      8-channel memory bus
    Memory Type DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
    Memory Voltage 1.2V
    On-Board Devices
    Chipset System on Chip (SoC)
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2500 BMC
    Network Controllers Broadcom BCM57416 Controller
    Input / Output
    LAN 2x 10GbBase-T LAN ports
      1 RJ45 Dedicated IPMI LAN port
    NVMe Up to 24 U.2 NVMe support
    Others 1 COM port
      2 SATA DOM power connectors
      TPM 1.2 header
    USB 5 USB 3.0 ports (4 rear + 1 Type A)
    VGA 1 VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED / Fan fail LED / UID LED
    Expansion / Connectivity
    Expansion Slots Total (Free) 1 PCI-E 3.0 x16 (FH/HL) slot
    M.2 Interface: PCI-E 3.0 x4 (NVMe based)
      Form Factor: 2280, 22110
      Key: Onboard M-key
      Number of M.2: Dual
    Drive Bays
    Hot-swap 24 hot-swap 2.5" U.2 NVMe drive bays
    Power Supply
    Certification 80PLUS Titanium Level
    Power Supply 1200W Redundant Power Supplies with PMBus
    System Cooling
    Air Shroud 1x 1 Air Shroud
    Fans 3 heavy-duty PWM fans with optimal fan speed control
    System BIOS
    BIOS Features Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1
    BIOS Type AMI 128Mb SPI Flash EEPROM
    PC Health Monitoring
    CPU Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
      CPU switching voltage regulator
    FAN Up to 6-fan status tachometer monitoring
      Up to six 4-pin fan headers
      Status monitor for speed control
      Pulse Width Modulated (PWM) fan connectors
    LED CPU / System Overheat LED
    Other Features Chassis Intrusion Detection
      Chassis Intrusion Header
    Temperature Monitoring for CPU and chassis environment
      CPU Thermal Trip Support
      Thermal control for 6x Fan connectors
      I²C Temperature Sensing Logic
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Add-on Card 2x AOC-SLG3-2E4R-P, 1x AOC-SLG3-4E4R-P
    Backplane 1x BPN-NVME3-216N-S4
    Cables 1x CBL-PWEX-1070, 1x CBL-PWEX-1071, 6x CBL-SAST-0815, 2x CBL-SAST-0817, 4x CBL-SAST-0841, 4x CBL-SAST-0849
    Heatsink / Retention 1x SNK-P0063P
    Motherboard / Chassis 1x MBD-H11SSW-NT / 1x CSE-216BTS-R1K23WBP
    Mounting Rails 1x MCP-290-00053-0N
    Riser Card 1x RSC-R2UW-2E8R, 1x RSC-W2-66
    Software 1x SFT-OOB-LIC
