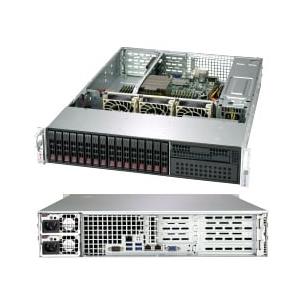

Supermicro AS-2113S-WTRT 2U Barebone Single AMD Processor
• Backup Storage
• Web or Database Servers
• Compact Network Appliance
Barebone 2U A+ Server, support AMD Single EPYC 7000. Up to 2TB memory. Onboard System on Chip, 5x PCI-E, 2x M.2, 2x 10GbBase-T LAN ports, 2x SATA DOM. 16x hot-swap 2.5in HDD bays. 1200W Redundant Power Supply (H11SSW-NT + CSE-213AC8-R1K23WB) - AS -2113S-WTRT
1. Single AMD EPYC™ 7001/7002 * Series Processor ( * AMD EPYC 7002 series drop-in support requires board revision 2.x)
2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
3. Expansion slots: 1 PCI-E 3.0 x16 (FH/HL) slot, 2 PCI-E 3.0 x8 (FH/HL) slots, 2 PCI-E 3.0 x8 (LP) slots M.2 Interface : PCI-E 3.0 x2 (NVMe based) M.2 Form Factor : 2280, 22110 M.2 Key : Onboard M-key Number of M.2 : Dual
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2x 10GBase-T LAN ports via Broadcom BCM57416
6. 16 hot-swap 2.5" SATA3 drive bays, or 10 hot-swap 2.5" SATA3 drive bays + optional 6 U.2 NVMe drive support with additional cables
7. 1200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2113S-WTRT 2U Barebone Single AMD Processor
| Product SKUs | ||
| AS -2113S-WTRT | A+ Server 2113S-WTRT | |
| Motherboard | ||
| Motherboard | H11SSW-NT | |
| Processor/Chipset | ||
| CPU | Socket SP3 | |
| Single AMD EPYC™ 7001/7002 * series Processor ( * Board revision 2.x required) | ||
| Supports CPU TDP 225W / cTDP up to 240W * | ||
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) | |
| Up to 64 Cores (Board revision 2.x + 7002 Processors) | ||
| Chipset | System on Chip (SoC) | |
| System Memory | ||
| Memory Capacity | 8-channel memory bus | |
| 16 DIMM slots | ||
| Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) | ||
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) | ||
| Memory Type | DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs (7001 Processors) | |
| DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) | ||
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB * ( * Board revision 2.x required + 7002 Processors ) | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Broadcom BCM57416 Controller | |
| VGA | ASPEED AST2500 BMC | |
| Expansion Slots | ||
| PCI Express | 1 PCI-E 3.0 x16 (FH/HL) slot | |
| 2 PCI-E 3.0 x8 (FH/HL) slots | ||
| 2 PCI-E 3.0 x8 (LP) slots | ||
| M.2 | Form Factor: 2280, 22110 | |
| Interface: PCI-E 3.0 x2 (NVMe based) | ||
| Key: Onboard M-key | ||
| Number of M.2: Dual | ||
| Input / Output | ||
| NVMe | Up to 6 U.2 NVMe support via additional cables | |
| SATA | 16 SATA3 (6 Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10GbBase-T LAN ports | ||
| USB | 5 USB 3.0 ports (4 rear + 1 Type A) | |
| VGA | 1 VGA port | |
| Others | TPM 1.2 header | |
| 1 COM port | ||
| 2 SATA DOM power connectors | ||
| System BIOS | ||
| BIOS Type | AMI 128Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| PCI 2.2 | ||
| DMI 2.3 | ||
| ACPI 5.1 | ||
| USB Keyboard Support | ||
| SMBIOS 3.1.1 | ||
| Chassis | ||
| Form Factor | 2U | |
| Model | CSE-213AC8-R1K23WB | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 24.8" (630mm) | |
| Package | 11" (H) 29" (W) 38.7" (D) | |
| Weight | Net Weight: 34 lbs (15.42 kg) | |
| Gross Weight: 59 lbs (26.76 kg) | ||
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Drive Bays | ||
| Hot-swap | 16 hot-swap 2.5" SATA3 drive bays | |
| Optional 6 U.2 NVMe drive support with additional cables | ||
| Peripheral Drives | ||
| Optional | Optional slim DVD-ROM drive | |
| Backplane | ||
| Hybrid Backplane | Supports up to 8x 2.5" SAS3/SATA3 HDD/SSD and 6x SAS3/SATA3/NVMe Storage Devices | |
| System Cooling | ||
| Fans | 3 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 100-127Vac / 15-12A / 50-60Hz | |
| 200-240Vac / 8.5-7A / 50-60Hz | ||
| 200-240Vdc / 8.5-7A (for CCC only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 100A / Min: 0A (200-240Vac) | ||
| Max: 100A / Min: 0A (200-240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Output Type | 19 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | CPU switching voltage regulator | |
| Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Up to 6-fan status tachometer monitoring | ||
| Up to six 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | ||
| I²C Temperature Sensing Logic | ||
| Thermal control for 6x Fan connectors | ||
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard | MBD-H11SSW-NT | 1 | Super H11SSW-NT Motherboard | |
| Chassis | CSE-213AC8-R1K23WB | 1 | 2U Chassis | |
| HD Backplane | BPN-SAS3-213A-N8 | 1 | 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices | |
| Cable(s) | CBL-SAST-0832 | 2 | SLIMLINE SAS x8 (LA) to 2x MINI SAS HD x4,INT, 70CM,32AWG | |
| Riser Card | RSC-R2UW-2E8E16+ | 1 | RSC-R2UW-2E8E16+-O-P | |
| Riser Card | RSC-R2UW-2E8R | 1 | 2U RHS WIO Riser card with two PCI-E x8 slots | |
| Heatsink / Retention | SNK-P0063P | 1 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| Mounting Rail(s) | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2";W | |
| Fan(s) | FAN-0181L4 | 3 | 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Peripheral Drive | DVM-PNSC-824B | 0 | Black slim IDE DVD (8x DVD, 24x CDR), Panasonic | |||
| Optional Kit for 6 U.2 NVMe drive solution | MCP-220-00127-0B | $ 26.00 | 6 | Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive) | ||
| Optional Kit for 6 U.2 NVMe drive solution | CBL-SAST-0816 | $ 50.00 | 1 | SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 28CM,34AWG | ||
| Optional Kit for 6 U.2 NVMe drive solution | CBL-SAST-0817 | $ 51.50 | 3 | SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 36CM,34AWG | ||
| Storage Controller card & cable | AOC-S3008L-L8e& 2x CBL-SAST-0535 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBAMINI SAS HD,12G,INT,70CM,30AWG | |||
| Storage Controller card & cable | AOC-S3008L-L8i& 2x CBL-SAST-0535 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1EMINI SAS HD,12G,INT,70CM,30AWG | |||
| Storage Controller card & cable | AOC-S3108L-H8iR& 2x CBL-SAST-0535 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60MINI SAS HD,12G,INT,70CM,30AWG | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108, | |||
| CacheVault | & BKT-BBU-BRACKET-05 | 0 | Supercap mounting bracket for PCI-E location | |||
| CacheVault | BTR-TFM8G-LSICVM02 | 0 | CacheVault for Broadcom 3108, | |||
| CacheVault | & MCP-240-00127-0N | 0 | Supercap mounting bracket for 2.5" HDD location | |||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Cable Management Arm | MCP-120-82503-0N | $ 34.00 | 0 | Cable arm adapter for SC825,213,829H,847B (MCP-290-00073-0N required),HF,RoHS/REACH,PBF | ||
| TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
| TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
