- Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x16 HBA, Broadcom 3616, AOC-S3616L-L16IT

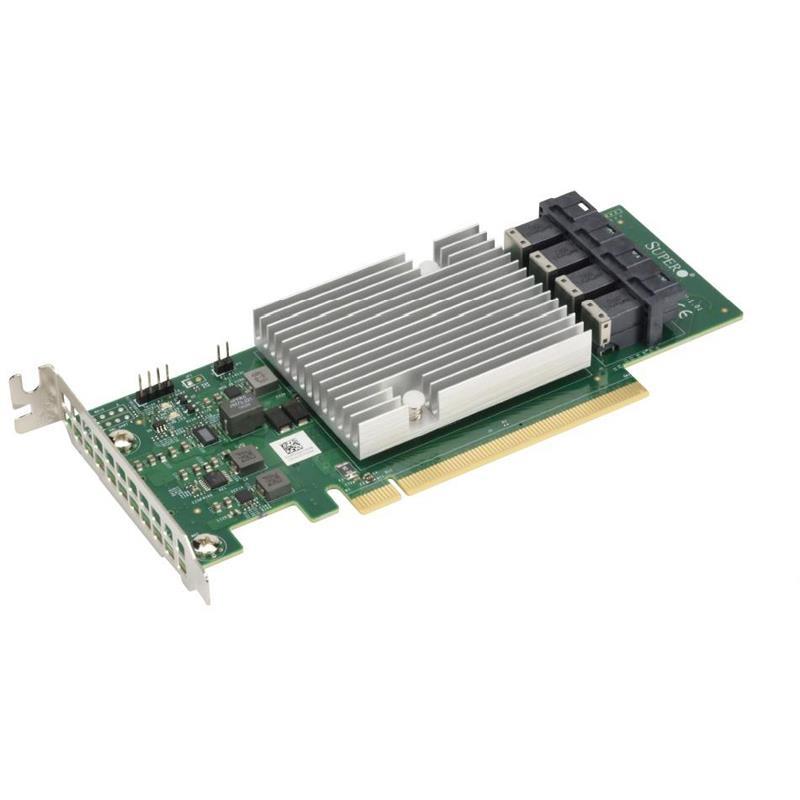

Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x16 HBA, Broadcom 3616, AOC-S3616L-L16IT
Delivers close to 12GB/s throughput
Supports SSP, SMP, STP and SATA protocols
Broadcom 3616 SAS3 controller with 16-ports
HBA management is done through sideband IPMI utilities
16-Port HBA 12Gb/s Broadcom 3616 SAS3 controller, Mini SAS HD connectors, PCIe x16 Gen3, internal, supports JBOD and up to 240 devices, RoHS
The Supermicro SAS AOC-S3616L-L16iT internal controller card features sixteen internal SAS3 ports with four internal min-SAS HD connectors. It utilizes a Broadcom SAS3616 SAS3 controller chip and features a 1.2 GHz processor. The AOC-S3616L-L16iT can provide support for JBOD systems of up to 1024 devices. It is streamlined to meet the growing demand for increased data throughput and scalability requirements across the enterprise-class server platforms. It is a low power and cost-effective near-line storage solution that delivers maximum performance and reliability.
Key Features
Broadcom 3616 SAS3 controller
16-port (internal), 12Gb/s per port
Supports JBOD and up to 240 devices
Automatically negotiates PCI-E (1x, 2x, and 3x) link widths
Power management support
Supports 3.0, 6.0, and 12Gb/s SAS and SATA data transfer rates
Port independent auto-negotiation
Supports SSP, SMP, STP, and SATA protocols
Zoning capability w/ SAS3 expanders
OS Support: Windows Server 2012, Windows 8.x, Windows 10, Windows Server 2016, Windows Vista, FreeBSD, RedHat, and SUSE Linux
Processor at 1.2 GHz
Power: 15.1 Watts
Uses 4 MiniSAS HD (SFF-8643) connectors
Operating Temp: 10° to 55°C
Extra Specifications for Supermicro 16-Port SAS3 12Gb/s & SATA3 6Gb/s Gen3 PCIe x16 HBA, Broadcom 3616, AOC-S3616L-L16IT
| Main Specifications | ||
| Device Type | SAS Internal HBA Adapter | |
| Form Factor | Low Profile | |
| Interface | PCI Express Gen 3 x16 | |
| Dimensions (WxDxH) | (L x H) 6.1" x 2.7 " (15.5 cm x 6.9 cm) | |
| Supports | Supports JBOD - HBA supports 1024 devices | |
| Connectivity | ||
| Connectors | Sixteen internal SAS3 ports with four mini-SAS HD connectors | |
| Processor | ||
| Host Processor | 1.2 GHz processor | |
| Storage Controller | ||
| I/O Controller | Broadcom SAS3616 SAS3 controller | |
| Performance | ||
| Internal Data Rate | 12, 6 and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates | |
| Software / System Requirements | ||
| OS Supports | Windows 2012 and 2008; RedHat Enterprise and SUSE Linux | |
| Power | ||
| Power Consumption | 15.1 Watts | |
| Miscellaneous | ||
| Compatible Motherboards | X10DRU-i+, X11DPi-N | |
| Compliant Standards | RoHS Compliant 6/6, Pb Free | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
