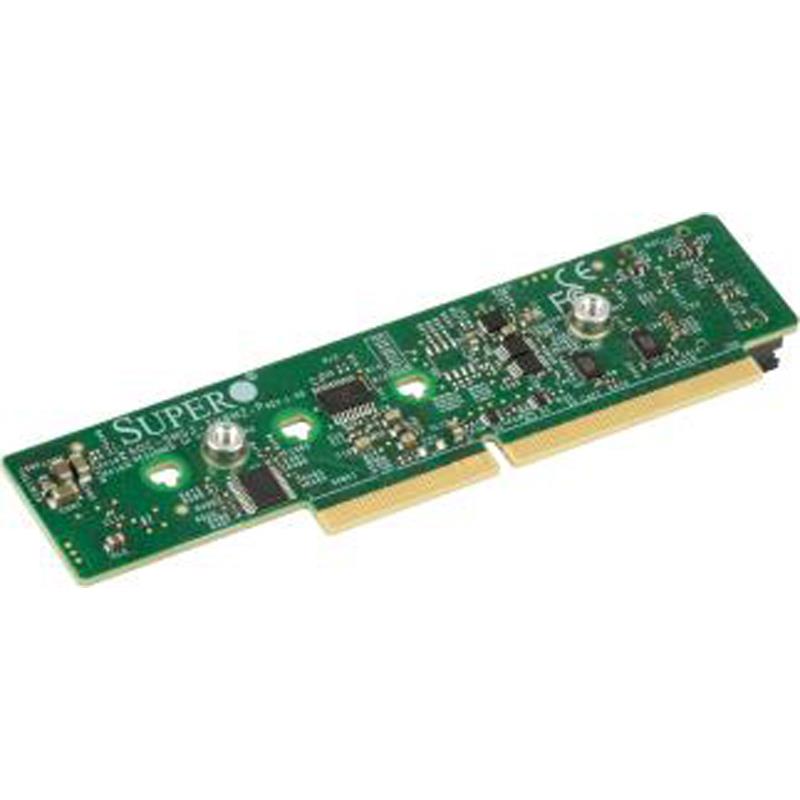

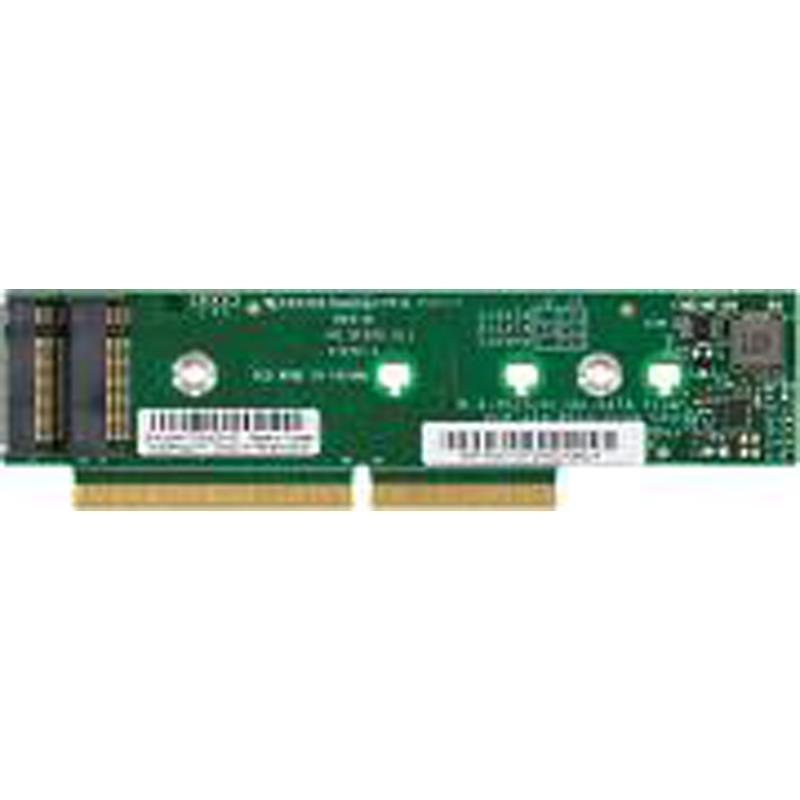

Supermicro AOC-SMG3-2H8M2 Carrier Card 2x Hybrid NVMe/SATA M.2 SSD For TwinPro X11 Platform
M.2 Carrier Card for X11 TwinPro 1U. Butterfly Style, Hybrid NVMe or SATA, supports 2x M-Key connectors for 80mm, 60mm and 42mm lengths.
Stacked Hybrid (NVMe or SATA) M.2 Carrier Card for TwinPro™
Supports x2 M-key connectors for the following 80mm, 60mm, and 42mm lengths
Auto-detects SATA or NVMe M.2
Either 1x NVMe M.2 SSD or 2x SATA M.2 SSDs functionality only
User-visible LEDs on each SSD for Activity
Supports OS boot
OS Support : Windows, Linux, and VMWare
Operating Temp: 0° to 55°C
Extra Specifications for Supermicro AOC-SMG3-2H8M2 Carrier Card 2x Hybrid NVMe/SATA M.2 SSD For TwinPro X11 Platform
Add-on Card | ||
Add-on Card | Perfectly streamlined for the TwinPro™, the Supermicro Stacked SATA/NMVe M.2 Carrier Card AOC-SMG3-2H8M2 features 2 M-key connectors for M.2 SSDs. It auto-detects SATA or NVMe protocols. User-visible LEDs are present to monitor the activities and status of each SSD. It delivers a cost-effective and reliable storage solution with SATA and NVMe drives. This product is only available through Supermicro. | |
Compliance | ||
RoHS | RoHS Compliant 6/6, Pb Free | |
Dimensions | ||
H x L | 1.21" x 4.43" | |
Validated Platforms | ||
Servers/Serverboards | {' SYS-1029TP-DC0R SYS-1029TP-DTR SYS-2029TP-HC0R SYS-2029TP-HTR SYS-6029TP-HC0R SYS-6029TP-HTR ': ['https://www.supermicro.com/en/products/system/1U/1029/SYS-1029TP-DC0R.cfm', 'https://www.supermicro.com/en/products/system/1U/1029/SYS-1029TP-DTR.cfm', 'https://www.supermicro.com/en/products/system/2U/2029/SYS-2029TP-HC0R.cfm', 'https://www.supermicro.com/en/products/system/2U/2029/SYS-2029TP-HTR.cfm', 'https://www.supermicro.com/en/products/system/2U/6029/SYS-6029TP-HC0R.cfm', 'https://www.supermicro.com/en/products/system/2U/6029/SYS-6029TP-HTR.cfm']} | |
Validated Platforms | {' X10DRT-PS X11DPT-PS ': ['https://www.supermicro.com/en/products/motherboard/X10DRT-PS', 'https://www.supermicro.com/en/products/motherboard/X11DPT-PS']} | |
Downloads | ||
User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-SMG3-2H8M2.pdf ] | |
Tested Drives | ||
Tested M.2 | [ View List ]:https://www.supermicro.com/en/support/resources/m2ssd?SystemID=86812&ProductName=AOC-SMG3-2H8M2 |
Warranty: | 3 years, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
