- Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X11 BigTwin, AOC-SMG3-2H8M2-B

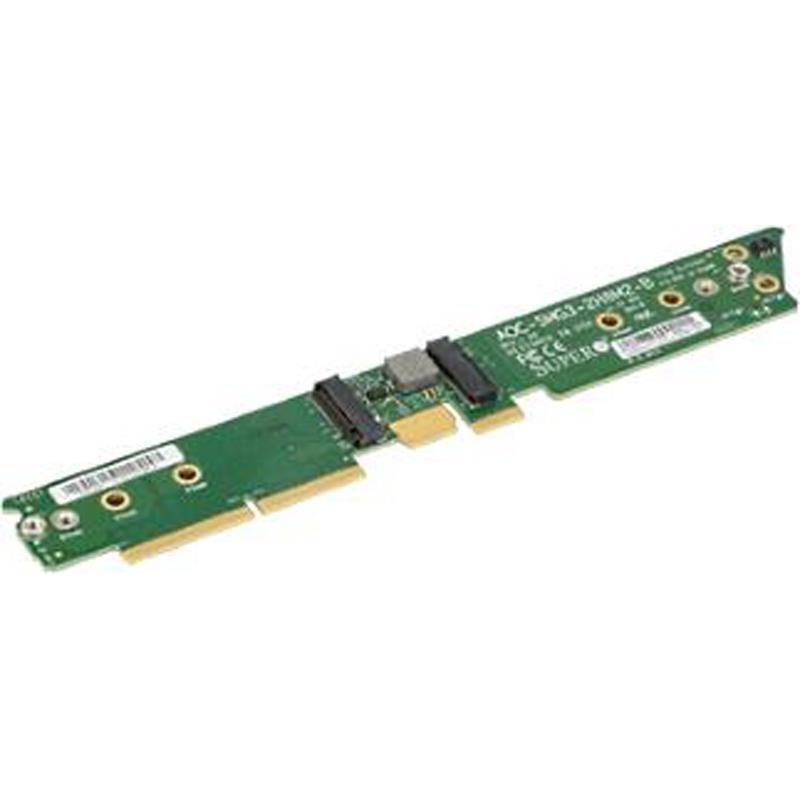

Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X11 BigTwin, AOC-SMG3-2H8M2-B
M.2 Carrier Card for X11 BigTwin 1U. Butterfly Style, Hybrid NVMe or SATA, supports 2x M-Key connectors for 80mm, 60mm and 42mm lengths.
‘Butterfly Style’ Hybrid (NVMe or SATA) M.2 Carrier Card for X11 BigTwin
Supports x2 M-key connectors for the following 80mm, 60mm, and 42mm lengths
Auto-detects SATA or NVMe M.2
Each NVMe M.2 SSD links to a full x4 PCI-E
User-visible LEDs on each SSD for Activity and Fault
Supports OS boot and OS redundancy
OS Support : Windows, Linux, and VMWare
Operating Temp: 0° to 55°C
Extra Specifications for Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X11 BigTwin, AOC-SMG3-2H8M2-B
| Add-on Card | ||
| Add-on Card | Perfectly streamlined for the BigTwin, the Supermicro ‘Butterfly Style’ SATA/NMVe M.2 Carrier Card features 2 M-key connectors for x2 NVMe or SATA M.2 SSDs. It auto-detects SATA or NVMe protocols. Both NVMe M.2 SSDs are linked to 4 lanes of PCI-E 3.0 bandwidth. User-visible LEDs are present to monitor the activities and status of each SSD. It delivers a storage solution with SATA and NVMe drives. This product is only available through Supermicro. | |
| Compliance | ||
| RoHS | RoHS Compliant 6/6, Pb Free | |
| Dimensions | ||
| H x L | 1.21" x 7.87" | |
| Validated Platforms | ||
| Servers/Serverboards | {' SYS-2029BT-HNC0R SYS-2029BT-HNR ': ['https://www.supermicro.com/en/products/system/2U/2029/SYS-2029BT-HNC0R.cfm', 'https://www.supermicro.com/en/products/system/2U/2029/SYS-2029BT-HNR.cfm']} | |
| Validated Platforms | {' H11DST-B X11DPT-B ': ['https://www.supermicro.com/en/products/motherboard/H11DST-B', 'https://www.supermicro.com/en/products/motherboard/X11DPT-B']} | |
| Downloads | ||
| Installation Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-SMG3-2H8M2-B.pdf ] | |
| Tested Drives | ||
| Tested M.2 | [ View List ]:https://www.supermicro.com/en/support/resources/m2ssd?SystemID=86691&ProductName=AOC-SMG3-2H8M2-B | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
