- Supermicro SBI-6119P-C3N Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation

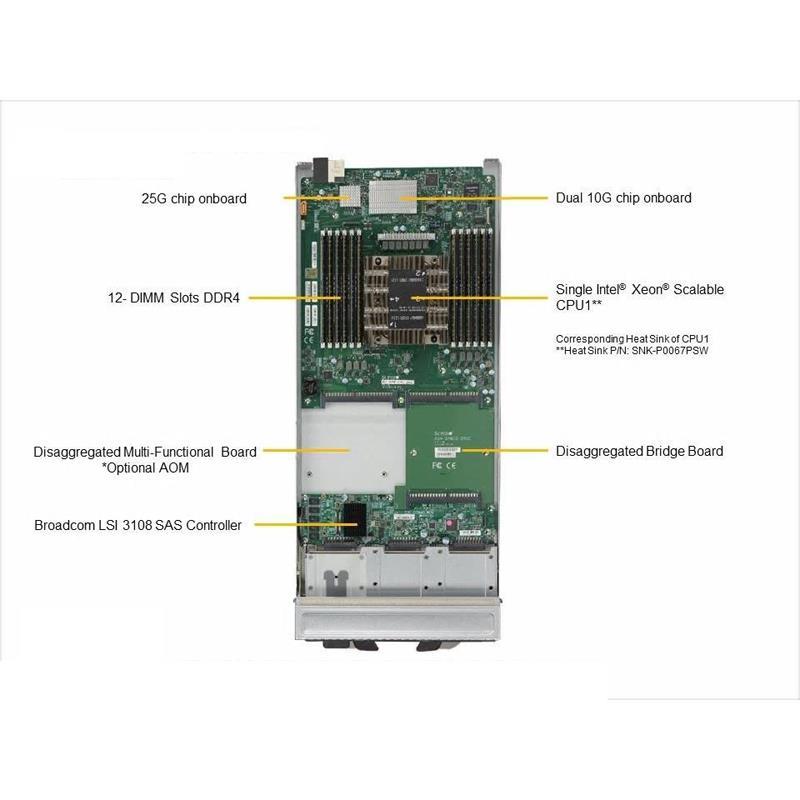

Supermicro SBI-6119P-C3N Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation
SuperBlade Server, Single Socket P (LGA 3647) Intel Xeon Scalable Processors 2nd Generation and Intel Xeon Scalable Processors. Up to 3TB DDR4 memory in 12 DIMM slots. Intel C622 chipset. 2x Hot-swap 2.5in NVMe + 1x Hot swap SAS3/SATA3 drives or 3x SAS3/SATA3 on Broadcom 3108 HW RAID, Dual 10G LAN ports
This product is no longer available.
1. 70 CPUs per 42U Rack
2. Single socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. Intel® C622 chipset
4. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
5. 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
6. Broadcom 3108 HW RAID
7. Dual 10G onboard
8. IPMI 2.0, KVM over IP, Virtual Media over LAN
9. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBI-6119P-C3N Blade Barebone Single Intel Xeon Scalable Processors 2nd Generation
| Motherboard | ||
| Motherboard | Super | |
| Processor/Cache | ||
| CPU | Support CPU TDP 70-205W | |
| Single Socket P (LGA 3647) | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 12 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5 support; 2GB Cache | |
| Network Controllers | Dual 10G LAN with Intel® X722 | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 9.75" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 10.5 lbs (4.76 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 or 3 SAS3/SATA3 | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-B11SPE-CPU-TF | 1 | Super B11SPE-CPU-TF Motherboard | |
| Motherboard / Chassis | MCP-680-61002-0N | 1 | 6U 10 SuperBlade UP Blade chassis | |
| Add-on Card / Module | AOM-BPNIO-SCE-P | 1 | AOM-BPNIO-SC, I/O module for uBlade,RoHS | |
| Add-on Card / Module | AOM-BPNIO-BRGE-P | 1 | Bridge Board | |
| Add-on Card / Module | AOM-BPNIO-SCE-P | 1 | I/O module for 6U Super Blade,RoHS , support up to 2 NVMe or 3 SAS | |
| Hard Drive Tray | MCP-220-00145-0B | 2 | Black 2.5" NVMe Hard Drive Tray, orange button | |
| Hard Drive Tray | MCP-220-00079-0B | 1 | Black gen 4 hot swap 2.5" HDD tray for Twin Blade | |
| Air Shroud | MCP-310-61002-0B | 1 | 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Wide | |
| Air Shroud | MCP-310-61003-0B | 1 | 6U 10 SuperBlade B11SPE Processor Tray Air Shroud, Narrow |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P0067PSW | $ 79.00 | 1 | 1U Proprietary 105-mm Wide Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-240-00127-0N | $ 20.00 | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | ||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
