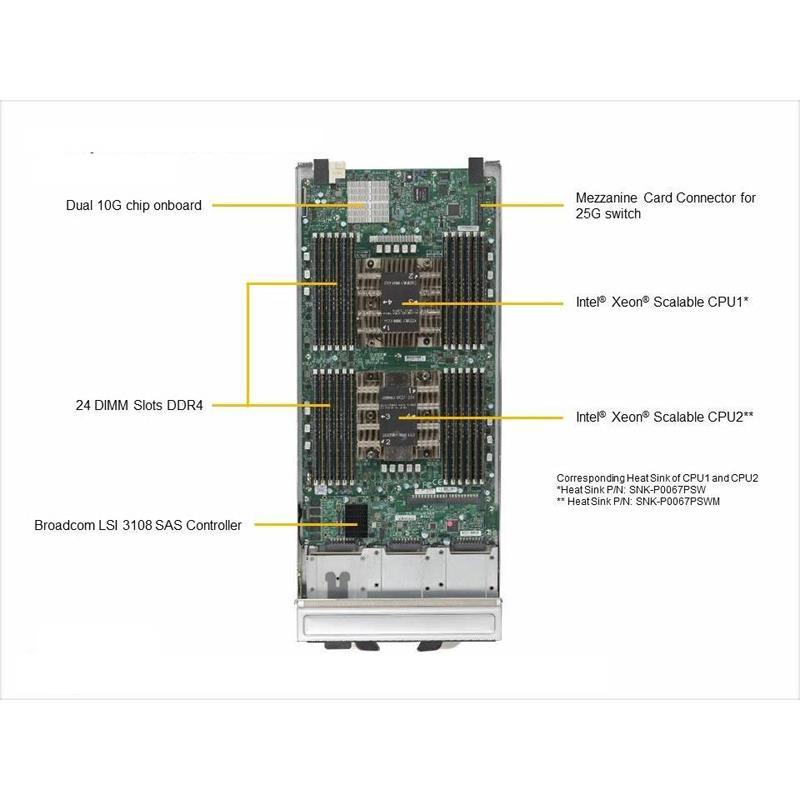

Supermicro SBI-6129P-C3N Blade Barebone Dual Processor

• Up to 6TB Registered ECC DDR4-2933MHz
• Support 2nd Gen. Intel Xeon Scalable Processors
• Broadcom 3108 SAS3 (12Gbps) controller; HW RAID

SuperBlade Server Dual Intel Scalable Xeon Gen. 2 processor. Up to 6TB DDR4 memory in 24 DIMM slots. Intel C622 chipset. 2x Hot-swap 2.5in NVMe + 1x Hot swap SAS3/SATA3 drives or 3x SAS3/SATA3 on Broadcom 3108 HW RAID, Dual 10G LAN ports

    954.00 954.00 954.0 USD


    Option not available


    This combination does not exist.

    Add to Cart

    • Dual 10G onboard
    • Intel C622 chipset
    • 140 CPUs per 42U Rack
    • Broadcom 3108 HW RAID
    • Graphics: Aspeed AST2500 BMC
    • IPMI 2.0, KVM over IP, Virtual Media over LAN
    • 2 Hot-plug 2.5 NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
    • 24 DIMMs, up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane DCPMM
    • Dual socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)

    Extra Specifications for Supermicro SBI-6129P-C3N Blade Barebone Dual Processor

    Main Specifications
    Device Type Dual-Socket Blade
    Dimensions (WxDxH) Height 9.75" x Width 1.75" x Depth 23.5"
    Enclosure Color Black
    Motherboard Super B11DPE
    Weight 12.6 lbs (5.7 kg)
    Cache Up to 28 Cores
    Compatible processor 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
      Support CPU TDP 70-205W
    Compatible Socket Dual Socket P (LGA 3647)
    System Memory
    Memory Capacity 24 DIMM slots
      Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
      Supports Intel Optane DCPMM
    Memory Type 2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
    On-Board Devices
    Chipset Intel C622 chipset
    Graphics Aspeed AST2500 BMC
    IPMI Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    Network Controllers Dual 10G onboard
    SAS Broadcom 3108 SAS3 (12Gbps) controller, HW RAID 0, 1, 5 support, 2GB Cache
    Input / Output
    TPM 1 TPM Header
    Front Panel
    Buttons Power On/Off button
    LEDs Power LED, UID / KVM LED, Network Activity LED, Fault LED
    System BIOS
    BIOS Features Plug and Play (PnP), PCI 2.2, ACPI up to 3.0, USB Keyboard support
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    Drive Bays
    Hot-swap 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 or 3 SAS3/SATA3
    Environmental Specifications
    Operating Temperature Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
      Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Add-on Card 1x AOM-BPNIO-SCE-P
    Air Shroud 4x MCP-310-61001-0B
    Hard Drive Trays 2x MCP-220-00145-0B, 1x MCP-220-00079-0B
    Motherboard / Chassis 1x MBD-B11DPE / 1x MCP-680-61003-0N
