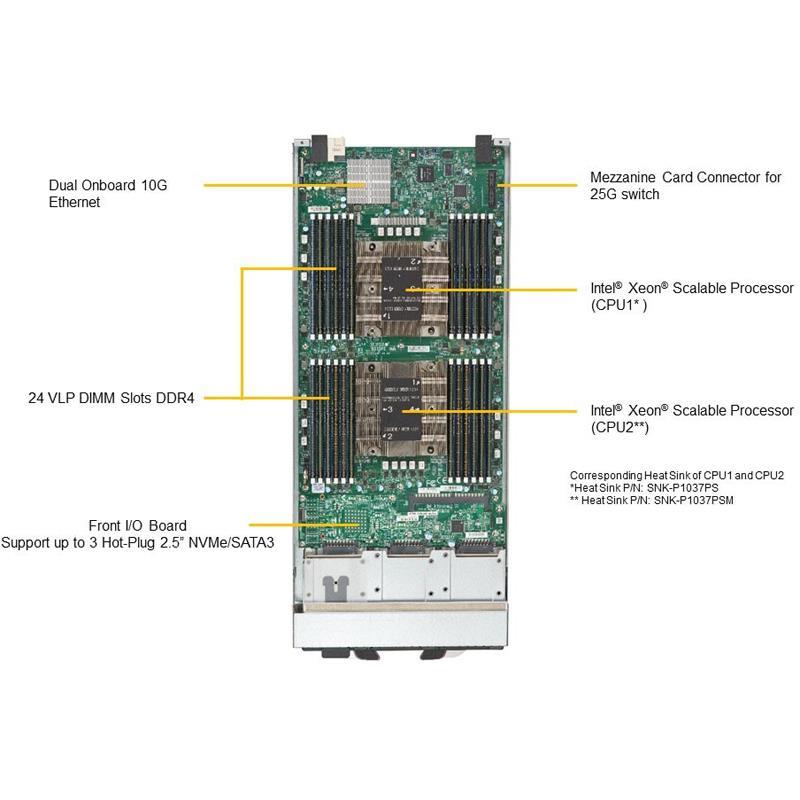

Supermicro SBI-6429P-T3N Blade Barebone Dual Processor
SuperBlade Server Dual Intel Scalable Xeon processor Gen. 2. Up to 768GB DDR4 VLP memory in 24 DIMM slots. Intel C622 chipset. 3x Hot-swap 2.5in NVMe or 3x SATA3, Dual 10G LAN ports
This product is no longer available.
1. 196 CPUs per 42U Rack
2. Dual socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
3. Intel® C622 chipset
4. 24 DIMMs; up to768GB VLP ECC DDR4-2933MHz RDIMM
5. 3 Hot-plug 2.5" NVMe or 3 SATA3 2.5" drive bays
6. Intel® C622; RAID 0, 1, 5
7. Dual 10G onboard
8. IPMI 2.0, KVM over IP, Virtual Media over LAN
9. Graphics: Aspeed AST2500 BMC
Extra Specifications for Supermicro SBI-6429P-T3N Blade Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super B11DPE | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| Support CPU TDP 70-205W | ||
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , 3 UPI up to 10.4GT/s | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors | |
| System Memory | ||
| Memory Capacity | 24 DIMM slots | |
| Up to 768GB VLP ECC DDR4-2933MHz RDIMM | ||
| Memory Type | 2933/2666/2400MHz ECC DDR4 | |
| VLP RDIMM | ||
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps) via Intel C622 RAID 0, 1, 5 | |
| Network Controllers | Dual 10G LAN with Intel® X722 | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2500 BMC | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 9.75" | |
| Width | 1.2" | |
| Depth | 23.5" | |
| Weight | 12.6 lbs (5.7 kg) | |
| Available Colors | Metallic Silver w/ Black Hard Drive Bays | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 3 Hot-Plug 2.5" NVMe or 3 Hot-plug 2.5" SATA3 drive bays | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 56.50 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 56.50 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P1037PSM | $ 53.50 | 0 | Low Profile Proprietary Passive CPU Heat Sink w/ a Middle Air Channel for B11 6U 14 Blade Series SuperServers | ||
| Heatsink / Retention | SNK-P1037PS | $ 53.50 | 0 | Low Profile Proprietary Passive CPU Heat Sink for B11 6U 14 Blade Series SuperServers | ||
| AOC | AOC-VROCPREMOD | $ 344.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 176.00 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| AOC | AOC-VROCINTMOD | 0 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Battery Backup Kit | BTR-TFM8G-LSICVM02 | $ 275.00 | 1 | Broadcom Supercap w/ 8GB CV + 24'' cable (whole kit) | ||
| Battery Backup Kit | MCP-240-00127-0N | $ 20.00 | 1 | Broadcom Supercap bracket include screw, same size as 2.5" HDD | ||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
