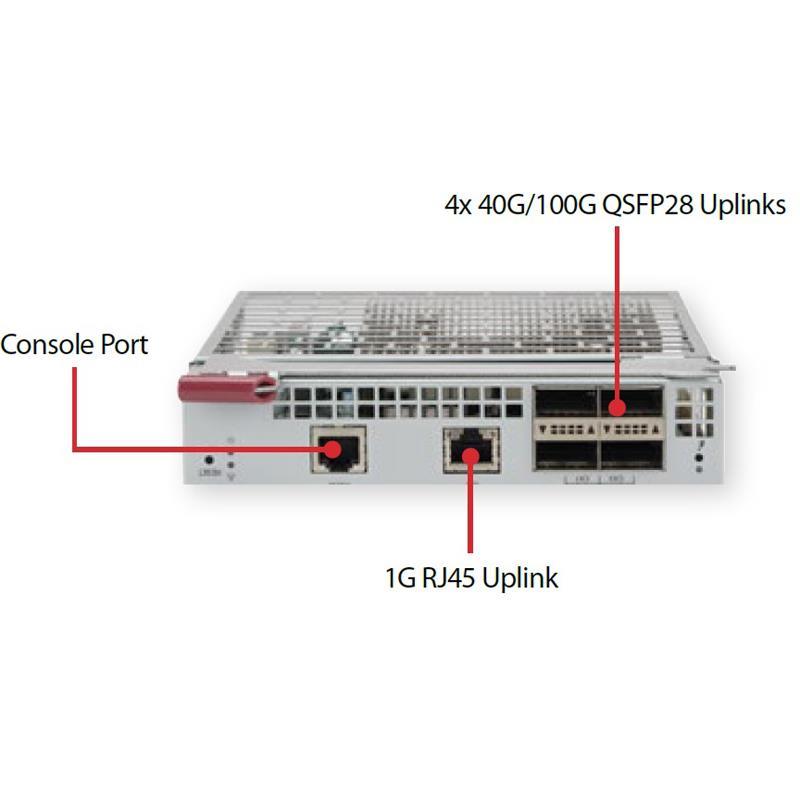

Supermicro SBM-25G-100 Blade Switch

4x 100G/40G Ethernet uplinks, 1x Gigabit Ethernet uplink
20x 25G Ethernet downlink (backward compatible to 20x10G)

SuperBlade 20-Port 25G Switch Module, includes connections to the SuperBlade's LAN interfaces. While SBM-25G-100 connects to the LAN interfaces on the mezzanine card of Blade servers

This product is no longer available.

Supermicro SuperBlade SBM-25G-100 - Switch - managed - 4 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 + 1 x 1Gb Ethernet - plug-in module

Key Selling Points

Marvell BobCat3 98CX8410 25GbE Low Latency Switch
20x 25G Ethernet downlink (backward compatible to 20x10G)
4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables
1x Gigabit Ethernet uplink
1 console port

Extra Specifications for Supermicro SBM-25G-100 Blade Switch

Main Specifications
Device Type	InfiniBand Switch
Dimensions (WxDxH)	267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Weight	3.2lbs/1.5kg
Capacity	1800Gbps
Networking
Layer 2 Features	IEEE 802.lQ VLANs/ port-based VLANs
	IEEE 802.3ac VLAN tagging
	IEEE 802.1AX LAG
	IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
	4K VLANs
	Spanning Tree Protocol (802.1D)
	Rapid Spanning Tree Protocol (802.1w)
	Multiple Spanning Tree Protocol (802.1s)
Jumbo Support	Jumbo frames up to 9KB
Physical Layer Features	100G/40G optical/copper QSFP28
	Gigabit Ethernet copper RJ45
System Management	Industry Standard CLI
	Web-based management interface HTTP/HTTPS
	SSH
	SNMP v1/v2/v3
	NTP
	Content-sensitive "Help"
	Auto Command completion
	TFTP Client
	XML-RPC
	Blade Network Manager (BNM)
Multicast
Multicast	IGMP Snooping
Miscellaneous
Features	Switch access password protection
	RADIUS and TACACS+ Authentication
Encryption Algorithm	SSH, SSL Encryption
Security Features
Security Features	Access Control Lists
	DHCP Snooping
Management
Management	Syslog

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
