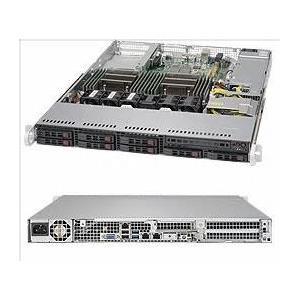

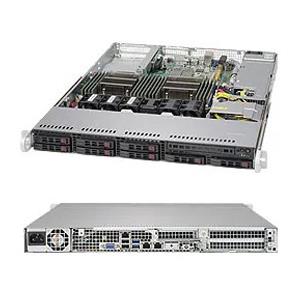

Supermicro CSE-113AC2-605WB Server Chassis 1U Rackmount
Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 600W 80 Plus Platinum Power Supply - Includes : 8x 2.5in Hot-Swap Drive bays, Mounting Rails Kit - SC113AC2-605WB (Black)
1. 1U Rackmount chassis, support for motherboard size: 12" x 13" E-ATX and 13.68" x 13"
2. 8 x 2.5" hot-swap SAS3/SATA3 (2 NVMe Ports) drive bay
3. SAS or enterprise SATA HDD only recommended
4. 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
5. 1U 600W platinum efficiency multiple output power supply w/PMBus
6. 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required)
7. 4 x 40x56mm counter-rotation PWM fan(s)
8. Optional 2 x fan for PCI card cooling
Extra Specifications for Supermicro CSE-113AC2-605WB Server Chassis 1U Rackmount
Front Panel | ||
Buttons | Power On/Off button | |
Unit Identification (UID) button | ||
System Reset Button | ||
LEDs | Unit Identification (UID) LED | |
Power Status LED | ||
2 Network Activity LEDs | ||
HDD activity LED | ||
Power Supply | ||
Certification | Platinum Certified | |
Power Supply | 1U 600W platinum efficiency multiple output power supply w/PMBus | |
Power Efficiency | 92% | |
Total Output Power and Input | 600W with Input 100 - 240Vac | |
AC Input Frequency | 50-60Hz | |
Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm | |
Output Type | 24pin ATX | |
-12V | Max: 0.5A / Min: 0A | |
+12V | Max: 49A / Min: 0.5A (100Vac - 240Vac) | |
+5V | Max: 18A / Min: 0.5A | |
+3.3V | Max: 15A / Min: 0.5A | |
+5Vsb | Max: 3A / Min: 0A | |
+12Vsb | Max: NAA | |
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | CCC | |
BSMI | ||
CE/EMC | ||
TUV/CB | ||
UL/CUL | ||
FCC class B | ||
Operating Environment (System) | ||
Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
Product SKUs | ||
Product SKUs | ||
Form Factor | ||
Form Factor | 1U Rackmount chassis, support for motherboard size: 12" x 13" E-ATX and 13.68" x 13" | |
Processor Support | ||
Processor Support | Dual, single Intel® / AMD processors | |
Dimensions | ||
Height | 1.7" (43 mm) | |
Width | 17.2" (437 mm) | |
Depth | 23.5" (597 mm) | |
Gross Weight | 35 lbs (15.88 kg) | |
Packaging (W x H x L) | 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) | |
Available Color | Black | |
Expansion Slots | ||
Expansion Slots | 2 full height expansion slot(s) (Riser Card Required) | |
1 low-profile expansion slot(s) (Riser Card Required) | ||
Drive Bays | ||
Drive Bays | SAS or enterprise SATA HDD only recommended | |
8 x 2.5" hot-swap SAS3/SATA3 (2 NVMe Ports) drive bay | ||
Backplane | ||
Backplane | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
Peripheral Drives | ||
Peripheral Drives | Optional 1 x Slim DVD-ROM Drive | |
1 x slim DVD-ROM drive bay | ||
Systems Cooling | ||
Fans | Optional 2 x fan for PCI card cooling | |
4 x 40x56mm counter-rotation PWM fan(s) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Air Shroud | MCP-310-00026-01 | $ 21.50 | 0 | Air shroud for H8 DP motherboards | ||
Air Shroud | MCP-310-00033-01 | $ 19.00 | 0 | Air shroud for X7, H8 UP motherboards | ||
Mounting Rail | MCP-290-00052-0N-Bulk | 0 | 25.6" to 33.05" outer rail, /quick, for 1U 17.2" W chassis (10 sets/pack) | |||
Peripheral Drive(s) | DVM-PNSC-DVD-SBT3 | 0 | Black PANASONIC SLIM DVD ROM SATA DRIVE | |||
Peripheral Drive(s) | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD kit for SC213,812S,813,815,816,818,819,825,836 | ||
Tray(s) | MCP-220-00087-0B | $ 33.50 | 0 | USB tray for 113 chassis | ||
Adapter Cable | CDM-SATA | $ 17.50 | 0 | mini-SATA to SATA adapter for slim DVD | ||
Peripheral Drive(s) | DVM-TEAC-DVD-SBT4 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
