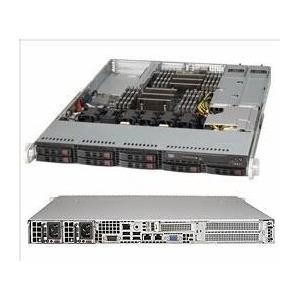

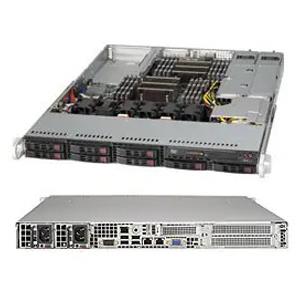

- Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount
Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount
• Support Dual Intel and AMD processors
• Redundant 750W Power Supply Platinum level
• 8 hot-swappable 2.5” SAS/SATA hard drive bays
• Chassis support motherboard size: E-ATX 12 x 13
Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 750W Redundant 80 Plus Platinum Power Supply - Includes : 8x 2.5in Hot-Swap Drive bays, Mounting Rails Kit - SC113AC2-R706WB2 (Black)
• Optional 2 x fan for PCI card cooling
• 8 x 2.5 hot-swap SAS/SATA drive bay
• 4 x 40x56mm counter-rotation PWM fan(s)
• SAS or enterprise SATA HDD only recommended
• 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
• 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required)
• 1U rackmount chassis, support for motherboard size: 12 x 13 E-ATX Optimized for X11 WIO (W series) motherboards
• 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Extra Specifications for Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount
Main Specifications | ||
Device Type | SuperChassis | |
Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) | |
Color | Black | |
Form Factor | 1U Chassis | |
Max Mainboard Size | Support motherboard size: 12" x 13" E-ATX, Optimized for X11 WIO (W series) motherboards | |
Weight | 37 lbs (16.78 kg) | |
Processor | ||
Compatible Processors | Dual Intel and AMD processors | |
Expansion / Connectivity | ||
Expansion Slots Total (Free) | 2 full height expansion slot(s) (Riser Card Required) | |
1 low-profile expansion slot(s) (Riser Card Required) | ||
Peripheral Drives | ||
CD-ROM / DVD-ROM | Optional 1 x slim DVD-ROM drive bay | |
Drive Bays | ||
Hot-swap | 8 x 2.5" hot-swap SAS/SATA drive bay, SAS or enterprise SATA HDD only recommended | |
Front Panel | ||
Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button | |
LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
System Cooling | ||
Fans | 4 x 40x56mm counter-rotation PWM fan(s) | |
Optional 2 x fan for PCI card cooling | ||
4x FAN-0156L4 | ||
Power Supply | ||
Certification | 80 Plus Platinum Certified | |
Power Supply | 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width | |
2x PWS-706P-1R | ||
SAS / SATA Backplane | ||
SAS / SATA Backplane | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
Regulatory (Power Supply) | ||
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
Operating Environment (System) | ||
Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | |
Operating Temperature Range: 5C - 35C (41F - 95F) | ||
Non-Operating Temperature Range: -40C - 70C (-40F - 158F) | ||
Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
Standard Parts List | ||
Accessory | 1x MCP-290-00036-0B, 1x CSE-PT0135, 2x MCP-340-00035-0B, 1x MCP-250-00009-0N | |
Front Panel | 1x FPB-FP112 | |
Power Distributor | 1x PDB-PT112-S2424 | |
Rear Window | 1x MCP-240-00098-0N | |
Parts List - (Items Included) | ||
Air Shroud | 1x MCP-310-19002-0N | |
Backplane | 1x BPN-SAS3-113A-N2 | |
Drive Trays | 8x MCP-220-00047-0B | |
Mounting Rails | 1set MCP-290-00063-0N | |
Parts | 1x MCP-290-00037-0N, 1x MCP-120-00030-0N, 2x MCP-120-00053-0N | |
Parts List | ||
Cables | 2x CBL-0160L, 1x CBL-0335L | |
Miscellaneous | ||
Compatible With | Motherboard: X11DDW-L, X11DDW-NT |
Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
Provider: | Supermicro |
Phone No.: | 305-640-0300 |
E-mail: | returnservices@wiredzone.com |
URL: | Click here for Manufacturer Website |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
