- Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount

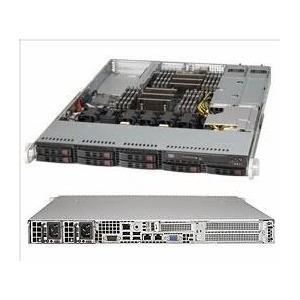

Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount
Offers 8x 2.5" hot-swap SAS/SATA drive bays
Chassis accepts 12" x 13" E-ATX motherboard sizes
Includes 2 full-height and 1 low-profile expansion slots
Equipped with 700/750W redundant Platinum level power supply
Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 750W Redundant 80 Plus Platinum Power Supply - Includes : 8x 2.5in Hot-Swap Drive bays, Mounting Rails Kit - SC113AC2-R706WB2 (Black)
1. 1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX Optimized for X11 WIO (W series) motherboards
2. 8 x 2.5" hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended
3. 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
4. 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
5. 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required)
6. 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling
Extra Specifications for Supermicro CSE-113AC2-R706WB2 Server Chassis 1U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| Unit Identification (UID) button | ||
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 700W with Input 100 - 140Vac | |
| 750W with Input 200 - 240Vac | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 320 x 54.5 x 40.25 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 58A / Min: 0.5A (100Vac - 140Vac) | |
| Max: 62A / Min: 0.5A (200Vac - 240Vac) | ||
| +5Vsb | Max: 3A / Min: 0A | |
| Power Distributor | -12V Max: 0.6 | |
| O/P: 12V/54 | ||
| +5V Max: 25 | ||
| +3.3V Max: 25 | ||
| PDB-PT112-S2424 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| UL/CUL | ||
| UL/CB | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX Optimized for X11 WIO (W series) motherboards | |
| Processor Support | ||
| Processor Support | Dual Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 23.5" (597 mm) | |
| Gross Weight | 37 lbs (16.78 kg) | |
| Packaging (W x H x L) | 23.5" (597 mm) x 8.5" (216 mm) x 33.7" (856 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 2 full height expansion slot(s) (Riser Card Required) | |
| 1 low-profile expansion slot(s) (Riser Card Required) | ||
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 8 x 2.5" hot-swap SAS/SATA drive bay | ||
| Backplane | ||
| Backplane | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x Slim DVD-ROM Drive | |
| 1 x slim DVD-ROM drive bay | ||
| Systems Cooling | ||
| Fans | Optional 2 x fan for PCI card cooling | |
| 4 x 40x56mm counter-rotation PWM fan(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Tray(s) | MCP-220-00087-0B | $ 34.00 | 0 | USB tray for 113 chassis | ||
| Cable | CBL-0179L | $ 17.00 | 0 | SATA CABLE 70CM FLAT S-S PBF. 26AWG | ||
| Adapter Cable | CDM-SATA | $ 18.50 | 0 | mini-SATA to SATA adapter for slim DVD | ||
| Peripheral Drive(s) | DVM-TEAC-DVD-SBT | 0 | Black slim SATA DVD, TEAC | |||
| Mounting Rail | MCP-290-00056-0N | $ 70.50 | 0 | Short outer rail, /quick, optional for 1U 17.2 | ||
| Mounting Rail | MCP-290-00052-0N-BULK | $ 436.00 | 0 | Outer rail, /quick, optional for 1U 17.2 |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
