- Supermicro CSE-113MFAC2-341CB Server Chassis 1U Rackmount

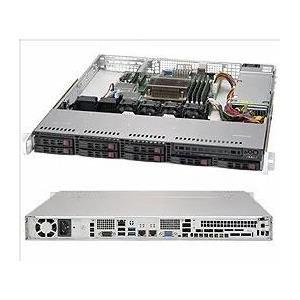

Supermicro CSE-113MFAC2-341CB Server Chassis 1U Rackmount
Rackmount 1U for Intel/AMD Single CPU motherboards. 1x Expansion Slots. 340W 80 Plus Platinum Power Supply - Includes : 8x 2.5in Hot-Swap Drive bays, Mounting Rails Kit - SC113MFAC2-341CB (Black)
1. 1U Chassis for motherboard support size: (12" x 10") (ATX 12" x 10")
2. 8 x 2.5" hot-swap SAS/SATA drive bay
3. 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
4. 1U 340W Multi-output power supply W/PMbus, Platinum level
5. 1 full-height & full-length expansion slot(s)
6. 4 x 40x28mm PWM fan(s)
Extra Specifications for Supermicro CSE-113MFAC2-341CB Server Chassis 1U Rackmount
| Processor Support | ||
| Processor Support | Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 340W Multi-output power supply W/PMbus, Platinum level | |
| Power Efficiency | 93% | |
| Total Output Power and Input | 340W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 279.4 x 76 x 40.4 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 28A / Min: 0.5A (100Vac - 240Vac) | |
| +5V | Max: 16A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CE/EMC | |
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 1U Chassis for motherboard support size: (12" x 10") (ATX 12" x 10") | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 19.98" (507 mm) | |
| Net Weight | 18.5 lbs (8.39 kg) | |
| Gross Weight | 29.5 lbs (13.38 kg) | |
| Packaging (W x H x L) | 24" (610 mm) x 8.3" (211 mm) x 30" (762 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 2.5" hot-swap SAS/SATA drive bay | |
| Backplane | ||
| Backplane | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x slim DVD-ROM drive bay | |
| Systems Cooling | ||
| Fans | 4 x 40x28mm PWM fan(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Air Shroud | MCP-310-19007-0N | $ 21.50 | 0 | SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB | ||
| Air Shroud | MCP-310-19009-0N | $ 17.50 | 0 | SC811, SC111, SC813M, SC113M, SC512F-280/350/410/520/600, SC513L-410/420, DP X9DBL ,X9 Mylar Air Shroud, 12"x10" MB | ||
| Air Shroud | MCP-310-19015-0N | $ 19.00 | 0 | SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12"x10" MB,RoHS/REACH | ||
| 2.5" HDD Bracket | MCP-290-00036-0B | $ 19.00 | 0 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 | ||
| Front USB | MCP-220-00087-0B | $ 33.50 | 0 | Black USB tray for slim DVD bay | ||
| Rail | CSE-PT52L | $ 58.00 | 0 | Sliver chassis rail set for SC813M,515,113M |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
