• 10 hot-swappable 2.5” SAS/SATA hard drive bays
• Support Dual and Single Intel and AMD processors
• 700/750W Redundant Power Supply Platinum level
• Chassis support motherboard size: E-ATX and WIO

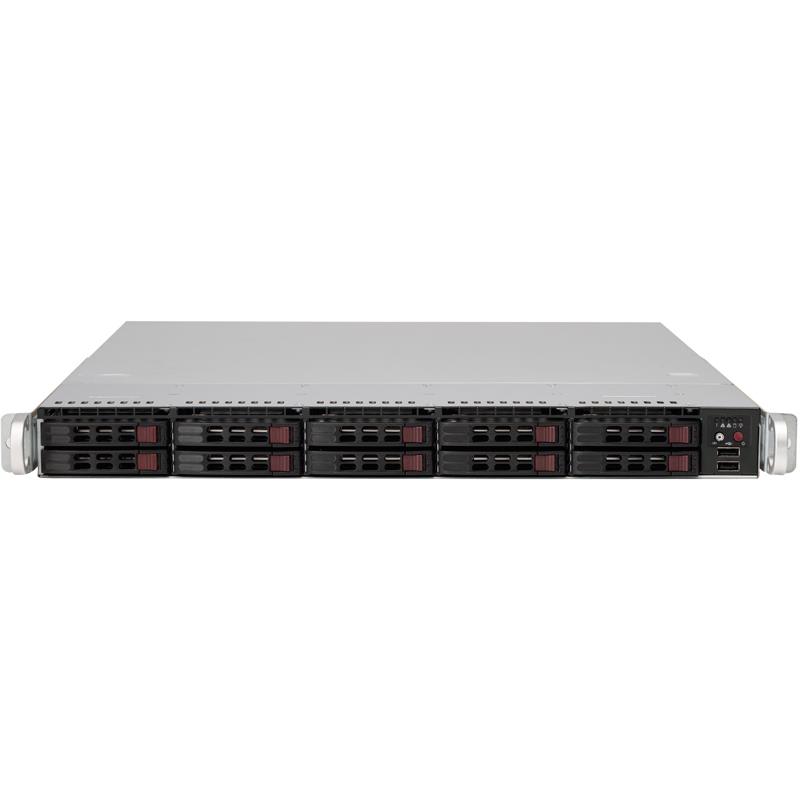

Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 700/750W Redundant 80 Plus Platinum Power Supply - Includes : 10x 2.5in Hot-Swap Drive bays, Mounting Rails Kit - SC116AC2-R706WB2 (Black)
• Optional 2 x fans for AOC cooling
• 10 x 2.5 hot-swap SAS/SATA drive bay
• 4 x 40x56mm counter-rotation PWM fans
• 2 full height expansion slot(s) , 1 low-profile expansion slots
• 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
• 1U chassis for motherboard support size of E-ATX 12x13, 13.38x 13.4. Optimized for X11 WIO (W series) motherboards
• 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) | |
| Color | Black | |
| Form Factor | 1U Chassis | |
| Max Mainboard Size | Support motherboard size: E-ATX 12"x13", 13.38"x 13.4", Optimized for X11 WIO (W series) motherboards | |
| Weight | 40 lbs (18.14 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 full height expansion slot(s) | |
| 1 low-profile expansion slot(s) | ||
| Drive Bays | ||
| Hot-swap | 10 x 2.5" hot-swap SAS/SATA drive bay | |
| Front Panel | ||
| Buttons | Power On/Off button, Unit Identification (UID) button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | 4 x 40x56mm counter-rotation PWM fan(s) | |
| Optional 2 x fans for AOC cooling | ||
| 4x FAN-0101L4 | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| Compatible With | Motherboard: X11DDW-L, X11DDW-NT | |
| Power Supply | ||
| Certification | 80 Plus Platinum Certified | |
| Power Supply | 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width | |
| 2x PWS-706P-1R | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL | |
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) | |
| Operating Temperature Range: 5C - 35C (41F - 95F) | ||
| Non-Operating Temperature Range: -40C - 70C (-40F - 158F) | ||
| Operating Relative Humidity Range: 8% - 90% (non-condensing) | ||
| Standard Parts List | ||
| Accessory | 24x MCP-320-00027-0B, 1x MCP-320-00028-0B, 2x MCP-340-00035-0B | |
| Front Panel | 1x FPB-FP116-DU3 | |
| Power Distributor | 1x PDB-PT112-S2424 | |
| Rear Window | 1x MCP-240-00098-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | 1x MCP-310-19002-0N | |
| Backplane | 1x BPN-SAS3-116A-N2 | |
| Drive Trays | 10x MCP-220-00047-0B | |
| Mounting Rails | 1x MCP-290-00063-0N | |
| Parts | 2x MCP-120-00029-0N, 1x MCP-120-00030-0N, 1x MCP-250-00009-0N | |
| Parts List | ||
| Cables | 2x CBL-0160L, 1x CBL-0335L | |
