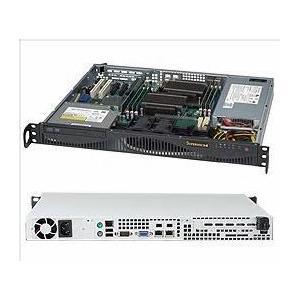

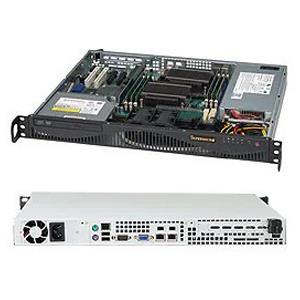

Supermicro CSE-512F-350B1 Server Chassis 1U Rackmount
Rackmount Mini 1U for Intel/AMD Single or Dual CPU motherboards. 1x Expansion Slots. 350W 80 Plus Platinum Power Supply - Includes : 2x 3.5in Internal Drive bays - SC512F 350B1 (Black)
1. 14.5" Mini 1U chassis, supports maximum motherboard sizes: ATX 12" x 10"
2. 1x Full-height & half-length expansion slot
3. 2x 3.5" Fixed Internal Drive Bay
4. 1x Slim DVD ROM (optional)
5. Power Switch, Reset, and LED Indicators
6. 2x Counter-rotating Fans
7. 350W Platinum Level High-efficiency Power Supply
Extra Specifications for Supermicro CSE-512F-350B1 Server Chassis 1U Rackmount
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 350W Multi-output power supply Platinum level | |
| Power Efficiency | 93% | |
| Total Output Power and Input | 350W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 180 x 100 x 40 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.2A / Min: 0A | |
| +12V | Max: 29A / Min: 0.5A (100Vac - 240Vac) | |
| +5V | Max: 15A / Min: 0.2A | |
| +3.3V | Max: 12A / Min: 0.2A | |
| +5Vsb | Max: 3A / Min: 0A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | ||
| Form Factor | ||
| Form Factor | 14.5" Mini 1U chassis - supports maximum motherboard sizes: ATX 12" x 10" | |
| Processor Support | ||
| Processor Support | Single and Dual Intel® and AMD processors | |
| Dimensions | ||
| Height | 1.7" (43 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 14.5" (368 mm) | |
| Gross Weight | 14 lbs (6.35 kg) | |
| Packaging (W x H x L) | 22" (559 mm) x 6.3" (160 mm) x 20" (508 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 1 full-height & half-length expansion slot(s) (Riser Card Required) | |
| Drive Bays | ||
| Drive Bays | SAS or enterprise SATA HDD only recommended | |
| 2 x 3.5" fixed drive bay | ||
| Peripheral Drives | ||
| Peripheral Drives | Optional 1 x Slim DVD-ROM Drive | |
| 1 x slim DVD-ROM drive bay | ||
| Systems Cooling | ||
| Fans | 2 x 4cm counter-rotating PWM fan(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00004-03 | $ 60.50 | 0 | Chassis rail set (inner and outer) | ||
| HDD Tray | MCP-220-00051-0N | $ 19.50 | 0 | Single 2.5" fixed HDD bracket | ||
| HDD Tray | MCP-220-00044-0N | $ 18.00 | 0 | Dual 2.5" fixed HDD bracket (without DVD) | ||
| Peripheral Drive(s) | DVM-TEAC-824B | 0 | Black slim IDE DVD (8x DVD, 24x CDR), TEAC | |||
| Peripheral Drive(s) | DVM-PNSC-824(B) | 0 | Black slim IDE DVD (8x DVD, 24x CDR), Panasonic | |||
| Peripheral Drive(s) | DVM-PNSC-DVD-SBT3 | 0 | Black slim SATA DVD (8x DVD, 24x CDR), Panasonic | |||
| Peripheral Drive(s) | DVM-TEAC-DVD-SBT3 | 0 | Black slim SATA DVD (8x DVD, 24x CDR), TEAC | |||
| Peripheral Drive(s) | MCP-220-51201-0N | 0 | Slim IDE DVD kit for SC512,512F-260 | |||
| Peripheral Drive(s) | MCP-220-51202-0N | $ 27.00 | 0 | Slim SATA DVD kit for SC512,512F-260 | ||
| Rail | MCP-290-00055-0N | $ 68.50 | 0 | Rail set, screw/quick, optional for 1U 17.2 |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
