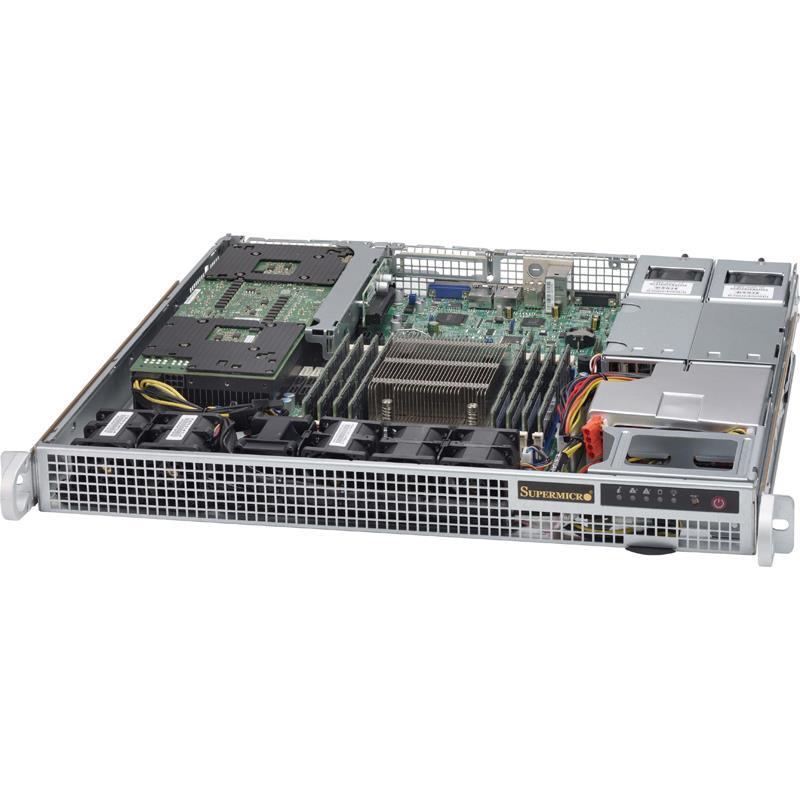

Supermicro CSE-514-R407W Server Chassis 1U Rackmount 400W Power Supply

Supermicro CSE-514-R407W Server Chassis 1U Rackmount 400W Power Supply

  • Support Dual and Single Intel and AMD processors

  • The 1U chassis supports motherboard sizes: Proprietary

  • 1U 400W Redundant Power Supply Platinum with PMBUS

  • Expansion Slots - 2 full-height expansion slots, 1 low-profile expansion slot

Rackmount 1U for Intel/AMD Single or Dual CPU motherboards. 3x Expansion Slots. 400W Redundant 80 Plus Platinum Power Supply - Includes : 2x 2.5in Drive bays, Mounting Rails Kit - SC514-R407W (Black) ** FOR SUPERMICRO WIO MOTHERBOARDS

$ 662.00$ 662.00662.0USD

$ 662.00

Option not available

InStock
26 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Support WIO MB, max MB size 12.3" x 13" and Proprietary MB 8" x 13"
    2. Up to 2 x 2.5" fixed with bracket
    3. 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
    4. 2 full height expansion slot(s) , 1 low-profile expansion slot(s)
    5. 4 x 40x56mm PWM fan(s)
    6. Optional 2 x fans for AOC cooling

    Extra Specifications for Supermicro CSE-514-R407W Server Chassis 1U Rackmount 400W Power Supply

    Front Panel
    ButtonsPower On/Off button
    System Reset Button
    LEDsPower Status LED
    2 Network Activity LEDs
    HDD activity LED
    Fan Fail/System Over Heat LED
    Operating Environment (System)
    Operating Temperature Range5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range-40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range5% - 95% (non-condensing)
    Power Supply
    Power Supply1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm
    Power Efficiency94%
    Total Output Power and Input400W with Input 100 - 240Vac
    400W with Input 200 - 240Vdc
    AC Input Frequency50-60Hz
    Dimensions (L x W x H)220 x 54.5 x 40.25 mm
    Output TypeBackplanes (gold finger)
    +12VMax: 33A (100Vac - 240Vac)
    +5VsbMax: 3A / Min: 0A
    CertificationPlatinum Certified
    Regulatory (Power Supply)
    Power Supply Safety / EMCCCC
    BSMI
    CE/EMC
    FCC class A
    UL/CUL
    UL/CB
    Product SKUs
    Product SKUs
    Form Factor
    Form FactorSupport WIO MB, max MB size 12.3" x 13" and Proprietary MB 8" x 13"
    Processor Support
    Processor SupportDual and Single Intel® and AMD processors
    Dimensions
    Height1.7" (43 mm)
    Width17.2" (437 mm)
    Depth16.9" (429 mm)
    Gross Weight25.2 lbs (11.43 kg)
    Packaging (W x H x L)27" (686 mm) x 8" (203 mm) x 24" (610 mm)
    Available ColorNo Paint
    Expansion Slots
    Expansion Slots1 low-profile expansion slot(s)
    2 full height expansion slot(s)
    Drive Bays
    Drive BaysUp to 2 x 2.5" fixed with bracket
    Systems Cooling
    FansOptional 2 x fans for AOC cooling
    4 x 40x56mm PWM fan(s)
    NamePart NumberPriceAdd to CartQty.Description
    RailMCP-290-00056-0N$ 56.500Quick-release outer rail for square hole short-depth rack (19"~26.4")
    Fan KitFAN-0141L4$ 36.00040x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Fan KitCBL-0296L$ 17.0004 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
