- Supermicro CSE-743AC-668B Rackmount 4U for Intel/AMD Single or Dual

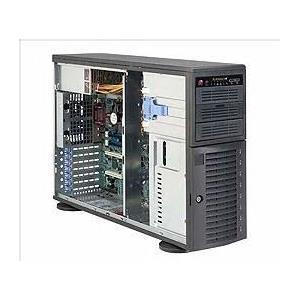

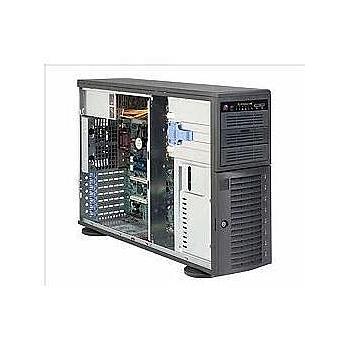

Supermicro CSE-743AC-668B Rackmount 4U for Intel/AMD Single or Dual
• 668W Platinum Level Certified Power Supply
• Front HDD Door Lock & Side Panel Intrusion Switch
• Chassis Supports motherboard sizes: E-ATX and ATX
• 12Gbps Backplane Support 8x 3.5 hot-swap SAS/SATA
Rackmount 4U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 668W 80 Plus Platinum Power Supply - Includes : 8x 3.5in Drive bays - SC743AC-668B (Black)
1. 8x 3.5" SAS3/SATA3 Backplane for Hot-Swappable Drives
2. Front HDD Door Lock & Side Panel Intrusion Switch
3. Front I/O Ports: 2x USB 3.0
4. 4x Middle 8cm (5000 rpm) PWM Fan
5. 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX
6. 668W Platinum Level Certified High-Efficiency Power Supply
7. 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives
Extra Specifications for Supermicro CSE-743AC-668B Rackmount 4U for Intel/AMD Single or Dual
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Efficiency | 92% | |
| Total Output Power and Input | 668W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 185 x 150 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.1A / Min: 0A | |
| +12V | Max: 54A / Min: 0.2A (100Vac - 240Vac) | |
| +5V | Max: 20A / Min: 0.1A | |
| +3.3V | Max: 15A / Min: 0.1A | |
| +5Vsb | Max: 2A / Min: 0A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | CSE-743AC-668B | |
| Form Factor | ||
| Form Factor | 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 17.8" (452 mm) | |
| Width | 7" (178 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 55 lbs (24.95 kg) | |
| Net Weight | 52 lbs (23.59 kg) | |
| Packaging (W x H x L) | 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Full-height, Full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| Backplane | ||
| Backplane | 8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis | |
| Peripheral Drives | ||
| Peripheral Drives | 3x standard 5.25" drive bay | |
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| Unit Identification (UID) LED | ||
| Fan Fail/System Over Heat LED | ||
| Port | 2x USB 3.0 Port(s) | |
| Systems Cooling | ||
| Fans | 4x 5000 RPM Hot-swap PWM Cooling Fans | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
