Main Specifications |

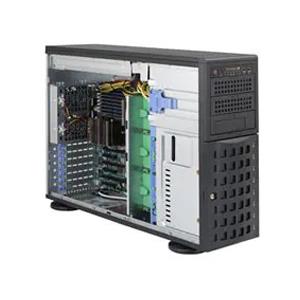

Device Type | SuperChassis |
Dimensions (WxDxH) | Height 17.8" (452 mm) x Width 7" (178 mm) x Depth 25.5" (647 mm) |
Color | Black |
Form Factor | 4U chassis |
Supported Mainboard Form Factor | Supports for maximum motherboard sizes: E-ATX 13.68" x 13" |
Weight | Net Weight 55 lbs (24.95 kg) - Gross Weight 58 lbs (26.31 kg) |
Processor |
Compatible Processors | Dual and Single Intel and AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7 full-height & full-length expansion slot(s) |
Drive Bays |
Hot-swap | 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO |
Peripheral Bays | 3 x standard 5.25" drive bay |
| 743 SAS BACKPLANE W/AMI MG9072 |
Front Panel |
Buttons | Power On/Off button, System Reset button |
LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Power Fail LED |
Networking |
Ports | 2x USB 2.0 Port(s) |
System Cooling |
Fans | 3x FAN-0074L4, 2x FAN-0082L4 |
| 3 x 5000 RPM Hot-swap PWM Cooling Fans |
| 2 x 5000 RPM Hot-swap Rear Exhaust Fans |
Environmental Parameters |
Operating Humidity | 5 - 95% (non-condensing) |
Operating Environment (System) |
Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
Operating Temperature Range | 5C - 35C (41F - 95F) |
Environmental |
Operating Relative Humidity | 8% - 90% (non-condensing) |
Power Supply |
Power Supply | 1U 800W hot swap redundant power supply. |
| 1x PWS-801-1R, 1x CSE-PT0130L |
Regulatory (Power Supply) |
Power Supply Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
Parts List - (Items Included) |
Air Shroud | 1x MCP-310-49001-0N |
Backplane | 1x CSE-SAS-743TQ |
Parts | 1x MCP-290-74502-0B |
Parts List |
Cables | 4x CBL-0044L, 1x CBL-0087, 1x CBL-0157L, 1x CBL-0160L, 3x CBL-0216L |
Motherboard | X8DTN+-F, X8DTN+-F-LR, X8DAH+, X8DAH+-F, X8DTH-6, X8DTH-6F, X8DTH-i, X8DTH-iF, X8DT6, X8DT6-F, X8DTE, X8DTE-F, X8DT3, X8DT3-F, X8DTi, X8DTi-F, X8DTi-LN4F, X8DT3-LN4F, X8DTL-3, X8DTL-3F, X8DTL-I, X8DTL-IF, X8DTL-6, X8DTL-6F, X8DTL-6L, X8DTL-L, X8DA6, X8DAE, X8DA3, X8DAi, X8DAL-3, X8DAL-i, X8SIL, X8SIL-F, X8SIE, X8SIE-F, C7B75, X10SAE, C7Z87, C7Z87-OCE, X10SAT |
Standard Parts List |
Hard Drive Trays | 8x MCP-220-00092-0B |
Power Distributor | 1x PDB-PT745-8824 |
