- Supermicro CSE-825MBTQC-R802LPB Server Chassis 2U Rackmount

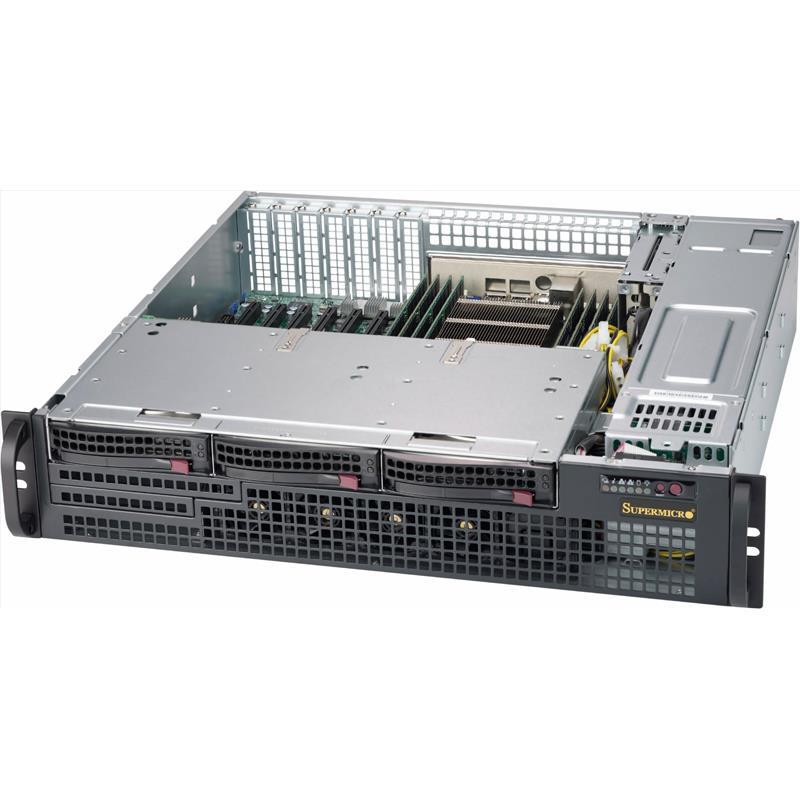

Supermicro CSE-825MBTQC-R802LPB Server Chassis 2U Rackmount
• 800W Redundant 80 Plus Titanium Power Supply
• Supports motherboard sizes: EE-ATX/E-ATX/ATX
• Support Dual and Single Intel and AMD processors
• SAS3 backplane support 3x 3.5 SAS3/SATA3 HDD/SSD
Rackmount 2U for Intel/AMD Single or Dual CPU motherboards. 7x Expansion Slots. 800W Redundant 80 Plus Titanium Power Supply - Includes : 3x 3.5in Hot-Swap Drive bays, Mounting Rails Kit - SC825MBTQC-R802LPB (Black)
1. 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
5. 7 low-profile expansion slot(s)
6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
Extra Specifications for Supermicro CSE-825MBTQC-R802LPB Server Chassis 2U Rackmount
| Operating Environment (System) | ||
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Titanium Certified | |
| Power Efficiency | 96% | |
| Total Output Power and Input | 800W with Input 100 - 240Vac | |
| 800W with Input 200 - 240Vdc | ||
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| +12V | Max: 66A / Min: 0A (100Vac - 240Vac) | |
| Max: 66A / Min: 0A (200Vdc - 240Vdc) | ||
| +5Vsb | Max: 4A / Min: 0A | |
| Power Distributor | -12V Max: 0.6A | |
| +3.3V Max: 24A | ||
| +5V Max: 30A | ||
| PDB-PT825-8824 | ||
| O/P: 12V/75 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Product SKUs | ||
| Product SKUs | CSE-825MBTQC-R802LPB | |
| Form Factor | ||
| Form Factor | 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 3.5" (89 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 17.7" (450 mm) | |
| Gross Weight | 42 lbs (19.05 kg) | |
| Net Weight | 27 lbs (12.25 kg) | |
| Packaging (W x H x L) | 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7x Low-profile expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 3x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| Optional 2x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards | ||
| Backplane | ||
| Backplane | 3-Port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Peripheral Drives | ||
| Peripheral Drives | Optional 1x slim DVD-ROM drive bay | |
| Optional 1x COM port tray | ||
| Optional 2x USB 2.0 ports | ||
| Front Panel | ||
| Button | Power On/Off button | |
| System Reset button | ||
| LED | Power status LED | |
| HDD activity LED | ||
| 2 Network Activity LEDs | ||
| System Information LED | ||
| Power Fail LED | ||
| Systems Cooling | ||
| Fans | Optional 1x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | |
| 4x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
